Yaesu FTDX101MP Technical Supplement

FTDX101MP/D Technical Supplement VCT-3

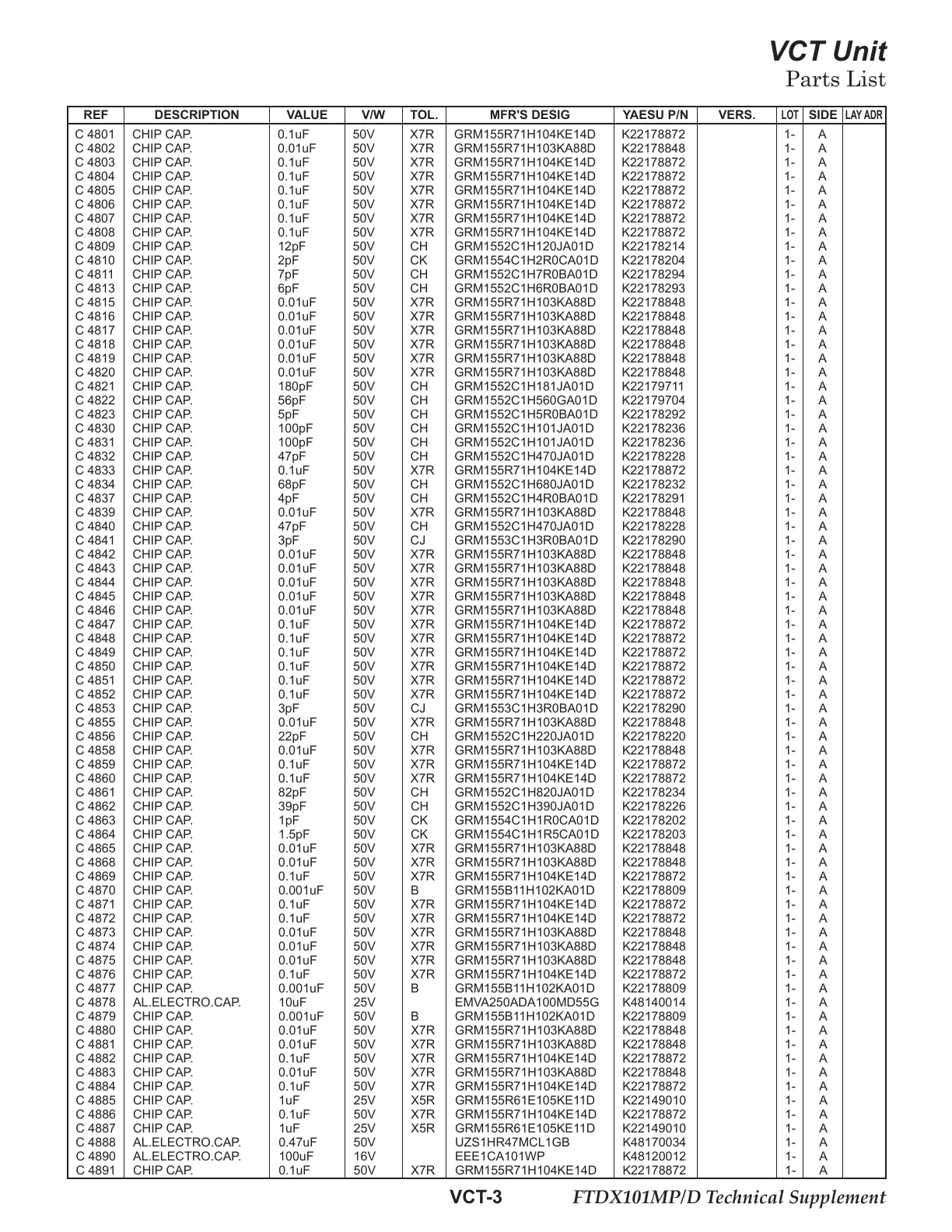

VCT Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
C 4801 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4802 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4803 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4804 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4805 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4806 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4807 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4808 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4809 CHIP CAP. 12pF 50V CH GRM1552C1H120JA01D K22178214 1- A
C 4810 CHIP CAP. 2pF 50V CK GRM1554C1H2R0CA01D K22178204 1- A
C 4811 CHIP CAP. 7pF 50V CH GRM1552C1H7R0BA01D K22178294 1- A
C 4813 CHIP CAP. 6pF 50V CH GRM1552C1H6R0BA01D K22178293 1- A
C 4815 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4816 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4817 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4818 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4819 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4820 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4821 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 1- A
C 4822 CHIP CAP. 56pF 50V CH GRM1552C1H560GA01D K22179704 1- A
C 4823 CHIP CAP. 5pF 50V CH GRM1552C1H5R0BA01D K22178292 1- A
C 4830 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 4831 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 4832 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 4833 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4834 CHIP CAP. 68pF 50V CH GRM1552C1H680JA01D K22178232 1- A
C 4837 CHIP CAP. 4pF 50V CH GRM1552C1H4R0BA01D K22178291 1- A
C 4839 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4840 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 4841 CHIP CAP. 3pF 50V CJ GRM1553C1H3R0BA01D K22178290 1- A
C 4842 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4843 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4844 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4845 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4846 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4847 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4848 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4849 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4850 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4851 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4852 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4853 CHIP CAP. 3pF 50V CJ GRM1553C1H3R0BA01D K22178290 1- A
C 4855 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4856 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 4858 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4859 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4860 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4861 CHIP CAP. 82pF 50V CH GRM1552C1H820JA01D K22178234 1- A
C 4862 CHIP CAP. 39pF 50V CH GRM1552C1H390JA01D K22178226 1- A
C 4863 CHIP CAP. 1pF 50V CK GRM1554C1H1R0CA01D K22178202 1- A
C 4864 CHIP CAP. 1.5pF 50V CK GRM1554C1H1R5CA01D K22178203 1- A
C 4865 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4868 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4869 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4870 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 4871 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4872 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4873 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4874 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4875 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4876 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4877 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 4878 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A
C 4879 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 4880 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4881 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4882 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4883 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 4884 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4885 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 4886 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 4887 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 4888 AL.ELECTRO.CAP. 0.47uF 50V UZS1HR47MCL1GB K48170034 1- A
C 4890 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A
C 4891 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
