Yaesu FTDX101MP Technical Supplement

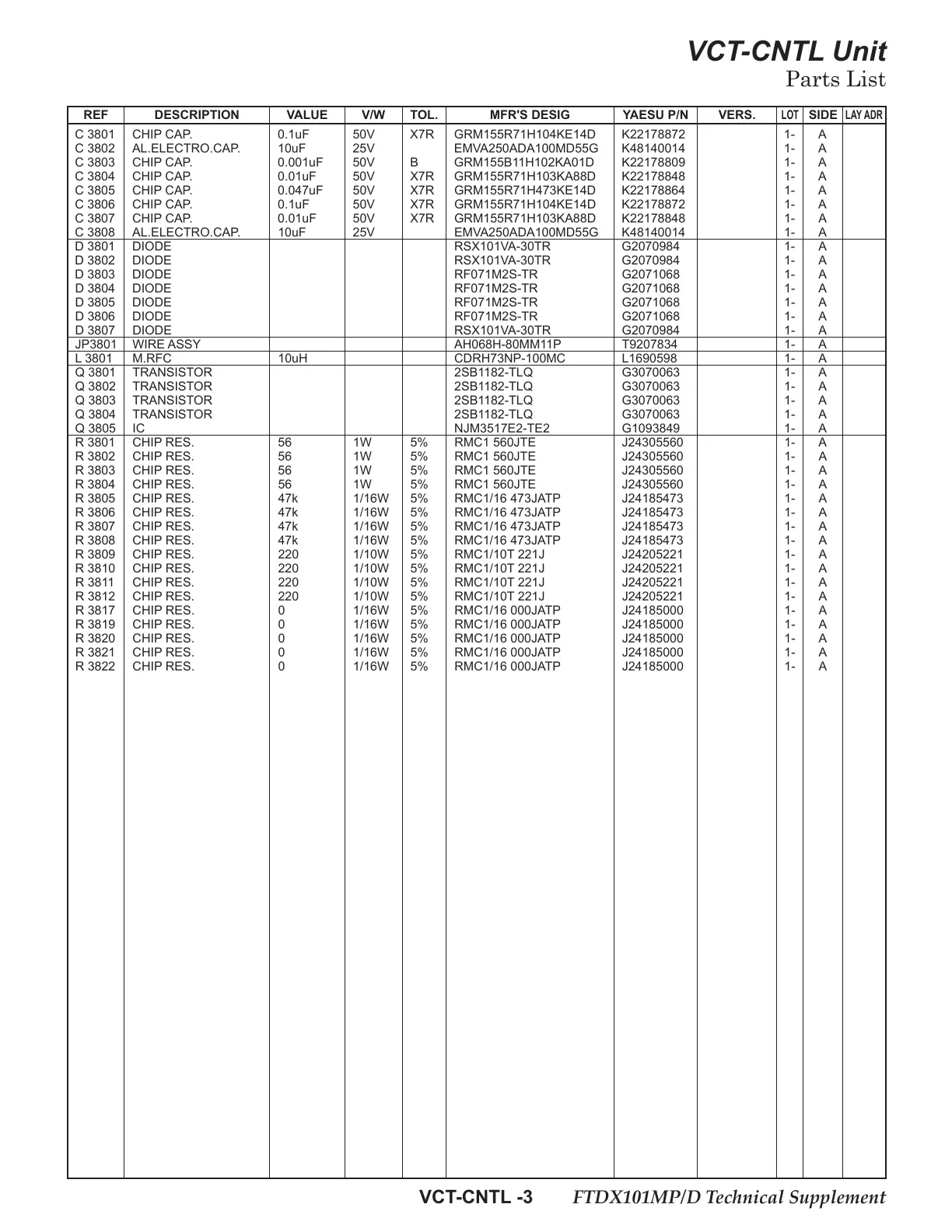

FTDX101MP/D Technical Supplement VCT-CNTL -3
VCT-CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
C 3801 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3802 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A
C 3803 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 3804 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3805 CHIP CAP. 0.047uF 50V X7R GRM155R71H473KE14D K22178864 1- A
C 3806 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3807 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3808 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A
D 3801 DIODE RSX101VA-30TR G2070984 1- A
D 3802 DIODE RSX101VA-30TR G2070984 1- A
D 3803 DIODE RF071M2S-TR G2071068 1- A
D 3804 DIODE RF071M2S-TR G2071068 1- A
D 3805 DIODE RF071M2S-TR G2071068 1- A
D 3806 DIODE RF071M2S-TR G2071068 1- A
D 3807 DIODE RSX101VA-30TR G2070984 1- A
JP3801 WIRE ASSY AH068H-80MM11P T9207834 1- A
L 3801 M.RFC 10uH CDRH73NP-100MC L1690598 1- A
Q 3801 TRANSISTOR 2SB1182-TLQ G3070063 1- A
Q 3802 TRANSISTOR 2SB1182-TLQ G3070063 1- A
Q 3803 TRANSISTOR 2SB1182-TLQ G3070063 1- A
Q 3804 TRANSISTOR 2SB1182-TLQ G3070063 1- A
Q 3805 IC NJM3517E2-TE2 G1093849 1- A
R 3801 CHIP RES. 56 1W 5% RMC1 560JTE J24305560 1- A
R 3802 CHIP RES. 56 1W 5% RMC1 560JTE J24305560 1- A
R 3803 CHIP RES. 56 1W 5% RMC1 560JTE J24305560 1- A
R 3804 CHIP RES. 56 1W 5% RMC1 560JTE J24305560 1- A
R 3805 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3806 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3807 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3808 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3809 CHIP RES. 220 1/10W 5% RMC1/10T 221J J24205221 1- A
R 3810 CHIP RES. 220 1/10W 5% RMC1/10T 221J J24205221 1- A
R 3811 CHIP RES. 220 1/10W 5% RMC1/10T 221J J24205221 1- A
R 3812 CHIP RES. 220 1/10W 5% RMC1/10T 221J J24205221 1- A
R 3817 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
R 3819 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
R 3820 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
R 3821 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
R 3822 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
