Yaesu FTDX101MP Technical Supplement

FTDX101MP/D Technical Supplement PA-4

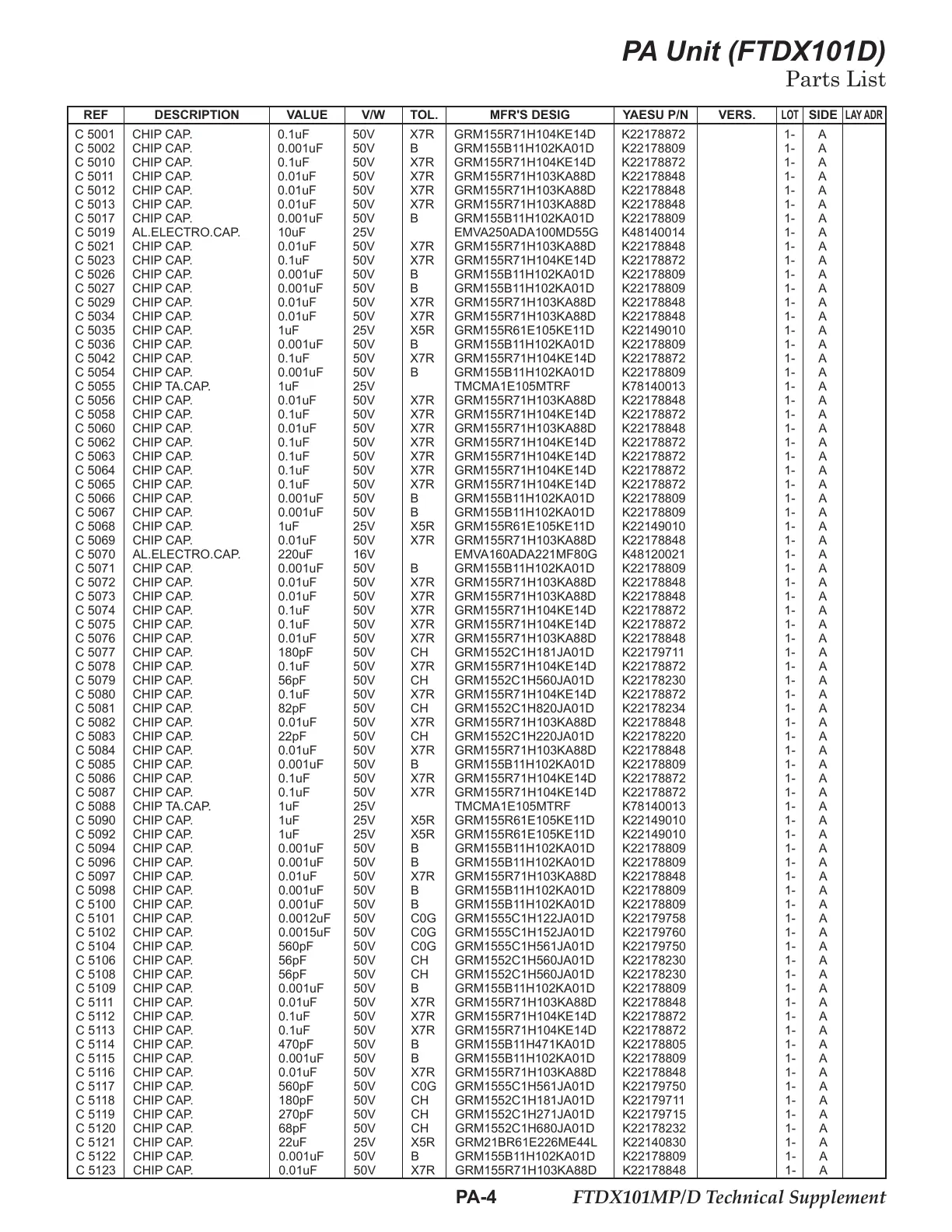

PA Unit (FTDX101D)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
C 5001 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5002 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5010 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5011 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5012 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5013 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5017 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5019 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A
C 5021 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5023 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5026 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5027 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5029 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5034 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5035 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 5036 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5042 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5054 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5055 CHIP TA.CAP. 1uF 25V TMCMA1E105MTRF K78140013 1- A
C 5056 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5058 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5060 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5062 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5063 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5064 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5065 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5066 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5067 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5068 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 5069 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5070 AL.ELECTRO.CAP. 220uF 16V EMVA160ADA221MF80G K48120021 1- A
C 5071 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5072 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5073 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5074 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5075 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5076 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5077 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 1- A
C 5078 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5079 CHIP CAP. 56pF 50V CH GRM1552C1H560JA01D K22178230 1- A
C 5080 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5081 CHIP CAP. 82pF 50V CH GRM1552C1H820JA01D K22178234 1- A
C 5082 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5083 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 5084 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5085 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5086 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5087 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5088 CHIP TA.CAP. 1uF 25V TMCMA1E105MTRF K78140013 1- A
C 5090 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 5092 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 5094 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5096 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5097 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5098 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5100 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5101 CHIP CAP. 0.0012uF 50V C0G GRM1555C1H122JA01D K22179758 1- A
C 5102 CHIP CAP. 0.0015uF 50V C0G GRM1555C1H152JA01D K22179760 1- A
C 5104 CHIP CAP. 560pF 50V C0G GRM1555C1H561JA01D K22179750 1- A
C 5106 CHIP CAP. 56pF 50V CH GRM1552C1H560JA01D K22178230 1- A
C 5108 CHIP CAP. 56pF 50V CH GRM1552C1H560JA01D K22178230 1- A
C 5109 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5111 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5112 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5113 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 5114 CHIP CAP. 470pF 50V B GRM155B11H471KA01D K22178805 1- A
C 5115 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5116 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 5117 CHIP CAP. 560pF 50V C0G GRM1555C1H561JA01D K22179750 1- A
C 5118 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 1- A
C 5119 CHIP CAP. 270pF 50V CH GRM1552C1H271JA01D K22179715 1- A
C 5120 CHIP CAP. 68pF 50V CH GRM1552C1H680JA01D K22178232 1- A
C 5121 CHIP CAP. 22uF 25V X5R GRM21BR61E226ME44L K22140830 1- A
C 5122 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 5123 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
