Yaesu FTDX101MP Technical Supplement

MEMORY-1
C 7001 CHIP CAP. 4.7uF 6.3V B JMK107BJ475MA-T K22084803 1- B
C 7002 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
FB7001 FERRITE BEADS BLM15PX221SN1D L9190224 1- B
J 7001 CONNECTOR 12FHJ-SM1-TB(LF)(SN) P1091574 1- B
J 7002 CONNECTOR AXA2S73022P-M P1091684 1- A
R 7001 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B
R 7002 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B
R 7003 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B
R 7004 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B
R 7005 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B
R 7006 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B
R 7007 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B
R 7008 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B
R 7009 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B

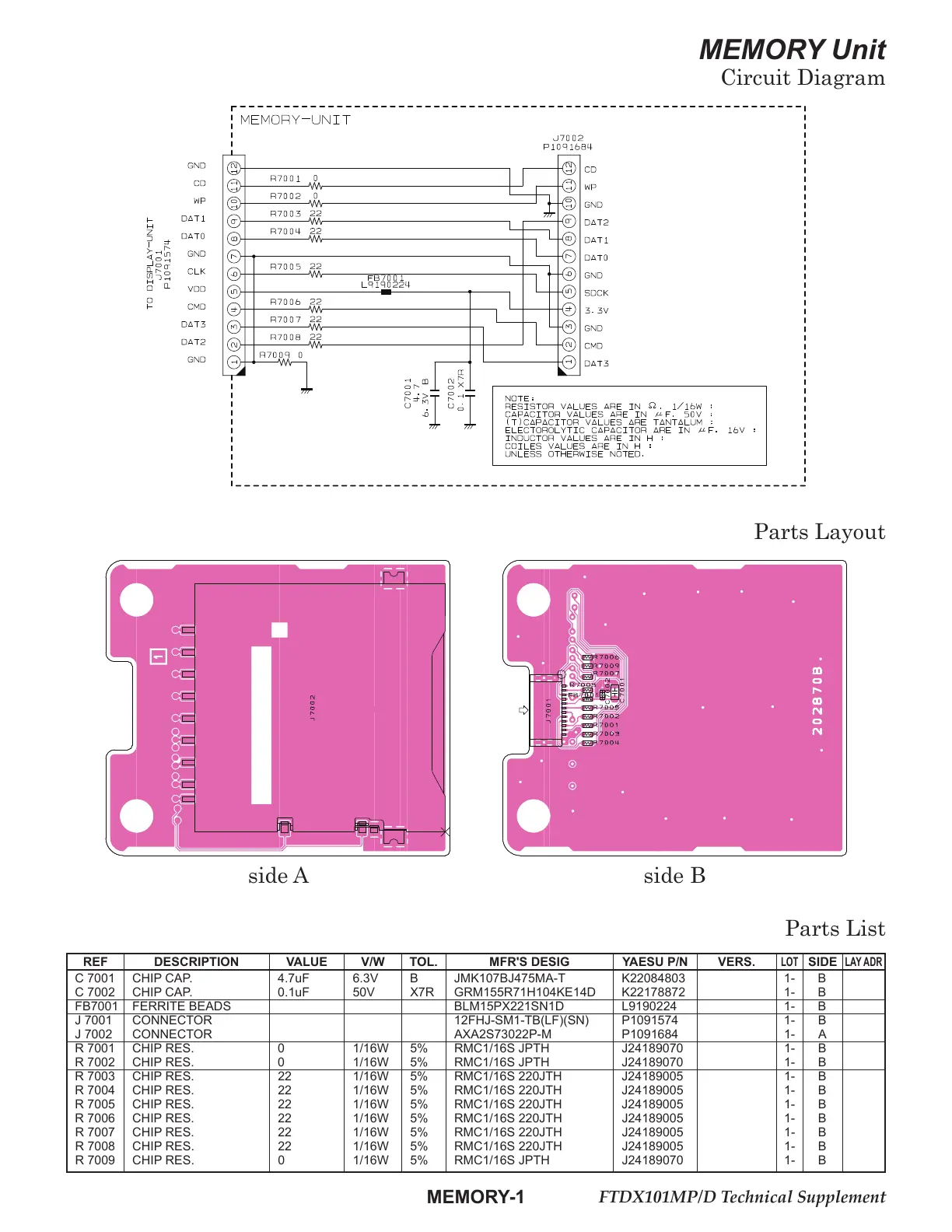

Circuit Diagram
Parts Layout
side A side B
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
Parts List
FTDX101MP/D Technical Supplement
MEMORY Unit
