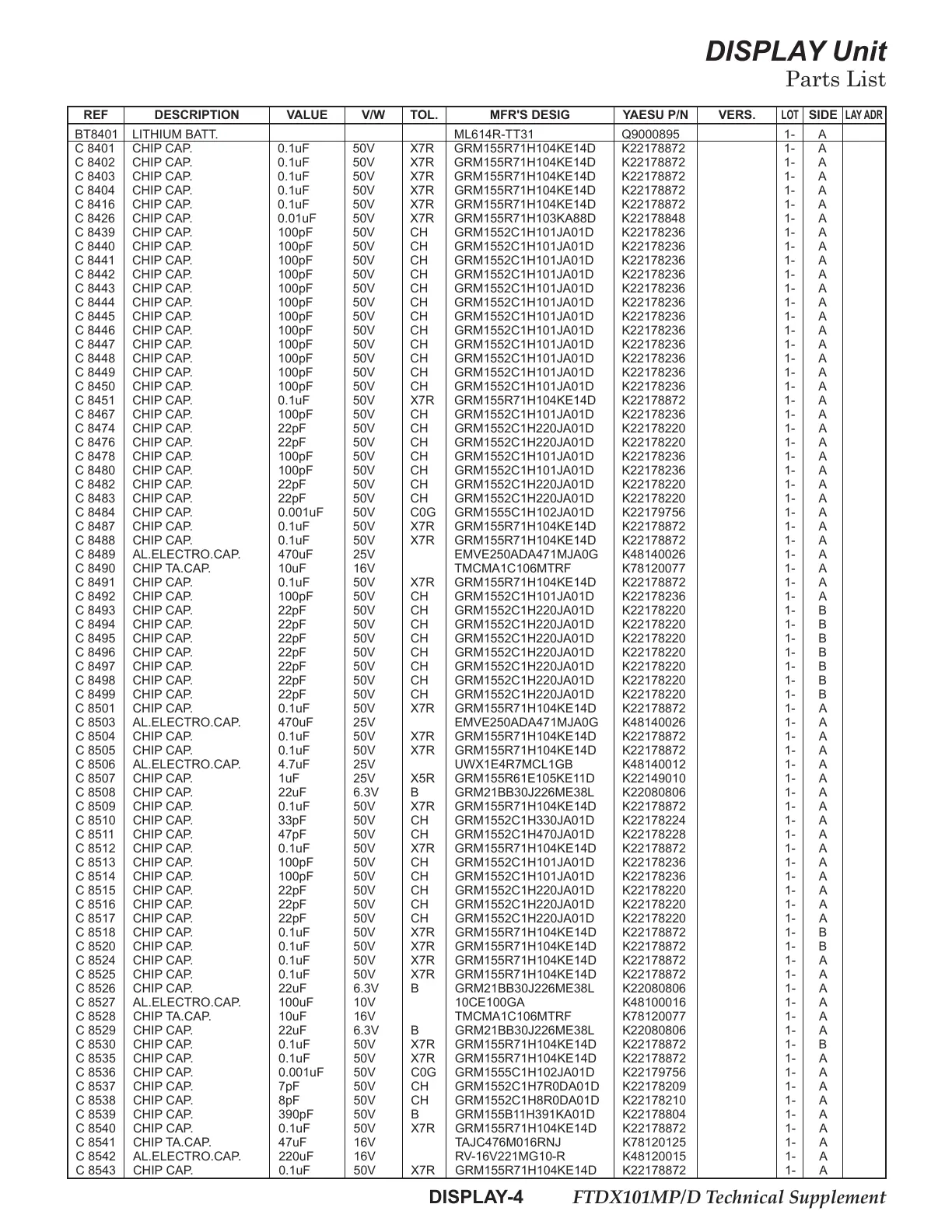

FTDX101MP/D Technical Supplement DISPLAY-4
DISPLAY Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
BT8401 LITHIUM BATT. ML614R-TT31 Q9000895 1- A
C 8401 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8402 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8403 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8404 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8416 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8426 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 8439 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8440 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8441 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8442 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8443 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8444 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8445 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8446 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8447 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8448 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8449 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8450 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8451 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8467 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8474 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 8476 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 8478 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8480 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8482 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 8483 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 8484 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 8487 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8488 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8489 AL.ELECTRO.CAP. 470uF 25V EMVE250ADA471MJA0G K48140026 1- A
C 8490 CHIP TA.CAP. 10uF 16V TMCMA1C106MTRF K78120077 1- A
C 8491 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8492 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8493 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- B
C 8494 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- B
C 8495 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- B
C 8496 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- B
C 8497 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- B
C 8498 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- B
C 8499 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- B
C 8501 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8503 AL.ELECTRO.CAP. 470uF 25V EMVE250ADA471MJA0G K48140026 1- A
C 8504 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8505 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8506 AL.ELECTRO.CAP. 4.7uF 25V UWX1E4R7MCL1GB K48140012 1- A
C 8507 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 8508 CHIP CAP. 22uF 6.3V B GRM21BB30J226ME38L K22080806 1- A
C 8509 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8510 CHIP CAP. 33pF 50V CH GRM1552C1H330JA01D K22178224 1- A
C 8511 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 8512 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8513 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8514 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 8515 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 8516 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 8517 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 8518 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
C 8520 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
C 8524 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8525 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8526 CHIP CAP. 22uF 6.3V B GRM21BB30J226ME38L K22080806 1- A
C 8527 AL.ELECTRO.CAP. 100uF 10V 10CE100GA K48100016 1- A
C 8528 CHIP TA.CAP. 10uF 16V TMCMA1C106MTRF K78120077 1- A
C 8529 CHIP CAP. 22uF 6.3V B GRM21BB30J226ME38L K22080806 1- A
C 8530 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
C 8535 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8536 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 8537 CHIP CAP. 7pF 50V CH GRM1552C1H7R0DA01D K22178209 1- A
C 8538 CHIP CAP. 8pF 50V CH GRM1552C1H8R0DA01D K22178210 1- A
C 8539 CHIP CAP. 390pF 50V B GRM155B11H391KA01D K22178804 1- A
C 8540 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 8541 CHIP TA.CAP. 47uF 16V TAJC476M016RNJ K78120125 1- A
C 8542 AL.ELECTRO.CAP. 220uF 16V RV-16V221MG10-R K48120015 1- A
C 8543 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
