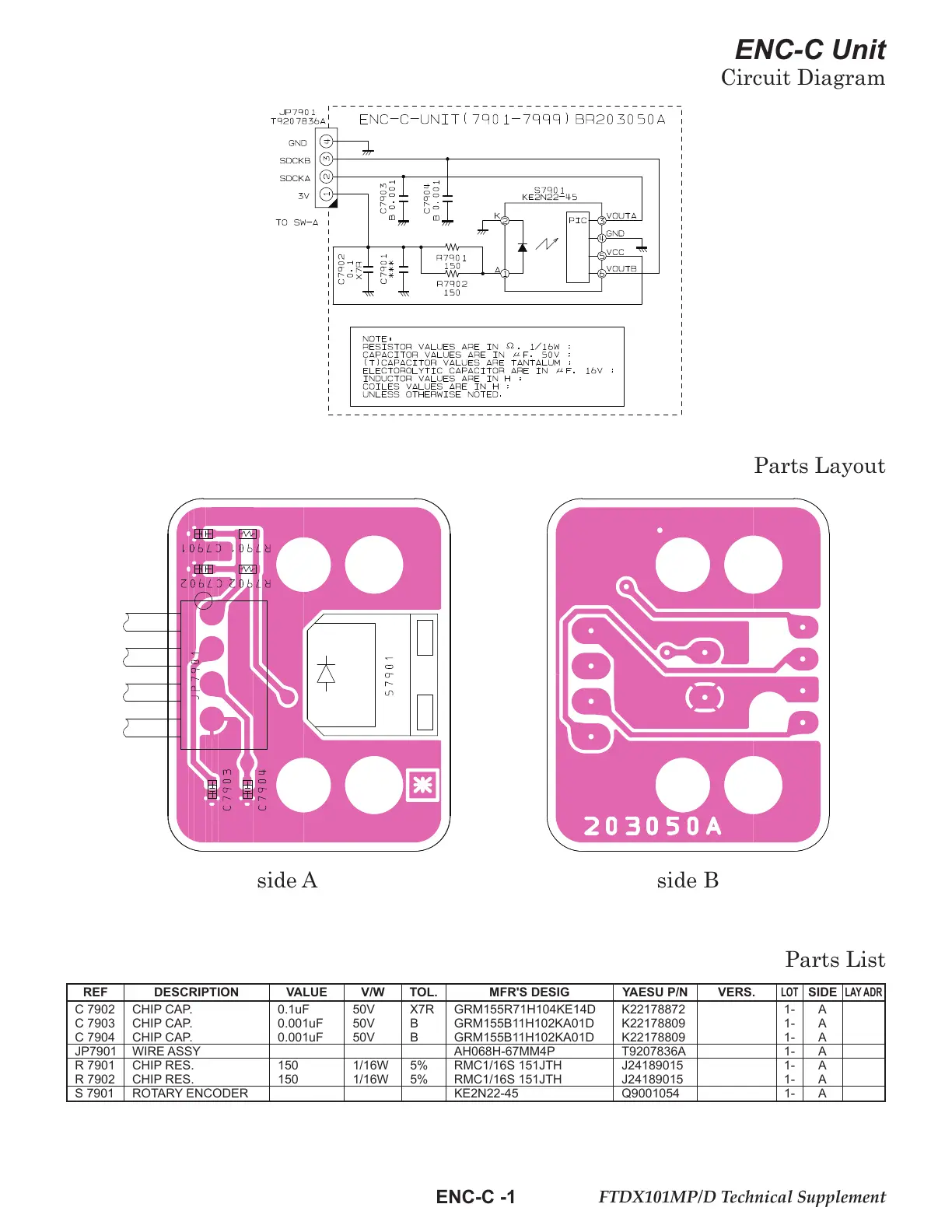

Yaesu FTDX101MP Technical Supplement

ENC-C -1
Circuit Diagram
Parts Layout
side A side B
C 7902 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 7903 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 7904 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
JP7901 WIRE ASSY AH068H-67MM4P T9207836A 1- A
R 7901 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- A
R 7902 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- A
S 7901 ROTARY ENCODER KE2N22-45 Q9001054 1- A
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
Parts List
FTDX101MP/D Technical Supplement
ENC-C Unit
