Yaesu FTDX101MP Technical Supplement

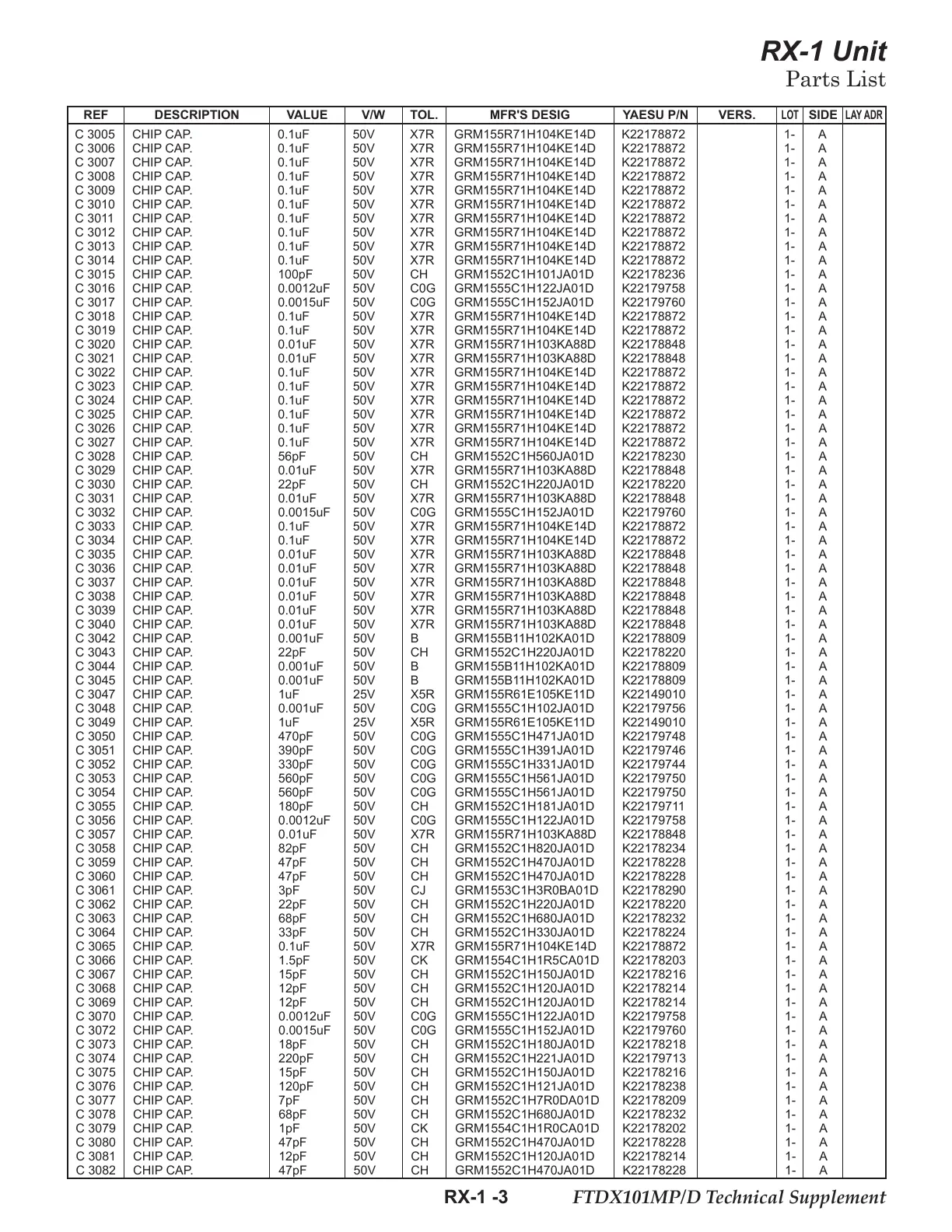

FTDX101MP/D Technical Supplement RX-1 -3
RX-1 Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
C 3005 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3006 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3007 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3008 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3009 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3010 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3011 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3012 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3013 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3014 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3015 CHIP CAP. 100pF 50V CH GRM1552C1H101JA01D K22178236 1- A
C 3016 CHIP CAP. 0.0012uF 50V C0G GRM1555C1H122JA01D K22179758 1- A
C 3017 CHIP CAP. 0.0015uF 50V C0G GRM1555C1H152JA01D K22179760 1- A
C 3018 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3019 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3020 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3021 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3022 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3023 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3024 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3025 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3026 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3027 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3028 CHIP CAP. 56pF 50V CH GRM1552C1H560JA01D K22178230 1- A
C 3029 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3030 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 3031 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3032 CHIP CAP. 0.0015uF 50V C0G GRM1555C1H152JA01D K22179760 1- A
C 3033 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3034 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3035 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3036 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3037 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3038 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3039 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3040 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3042 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 3043 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 3044 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 3045 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A
C 3047 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 3048 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 3049 CHIP CAP. 1uF 25V X5R GRM155R61E105KE11D K22149010 1- A
C 3050 CHIP CAP. 470pF 50V C0G GRM1555C1H471JA01D K22179748 1- A
C 3051 CHIP CAP. 390pF 50V C0G GRM1555C1H391JA01D K22179746 1- A
C 3052 CHIP CAP. 330pF 50V C0G GRM1555C1H331JA01D K22179744 1- A
C 3053 CHIP CAP. 560pF 50V C0G GRM1555C1H561JA01D K22179750 1- A
C 3054 CHIP CAP. 560pF 50V C0G GRM1555C1H561JA01D K22179750 1- A
C 3055 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 1- A
C 3056 CHIP CAP. 0.0012uF 50V C0G GRM1555C1H122JA01D K22179758 1- A
C 3057 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 3058 CHIP CAP. 82pF 50V CH GRM1552C1H820JA01D K22178234 1- A
C 3059 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 3060 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 3061 CHIP CAP. 3pF 50V CJ GRM1553C1H3R0BA01D K22178290 1- A
C 3062 CHIP CAP. 22pF 50V CH GRM1552C1H220JA01D K22178220 1- A
C 3063 CHIP CAP. 68pF 50V CH GRM1552C1H680JA01D K22178232 1- A
C 3064 CHIP CAP. 33pF 50V CH GRM1552C1H330JA01D K22178224 1- A
C 3065 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 3066 CHIP CAP. 1.5pF 50V CK GRM1554C1H1R5CA01D K22178203 1- A
C 3067 CHIP CAP. 15pF 50V CH GRM1552C1H150JA01D K22178216 1- A
C 3068 CHIP CAP. 12pF 50V CH GRM1552C1H120JA01D K22178214 1- A
C 3069 CHIP CAP. 12pF 50V CH GRM1552C1H120JA01D K22178214 1- A
C 3070 CHIP CAP. 0.0012uF 50V C0G GRM1555C1H122JA01D K22179758 1- A
C 3072 CHIP CAP. 0.0015uF 50V C0G GRM1555C1H152JA01D K22179760 1- A
C 3073 CHIP CAP. 18pF 50V CH GRM1552C1H180JA01D K22178218 1- A
C 3074 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 1- A
C 3075 CHIP CAP. 15pF 50V CH GRM1552C1H150JA01D K22178216 1- A
C 3076 CHIP CAP. 120pF 50V CH GRM1552C1H121JA01D K22178238 1- A
C 3077 CHIP CAP. 7pF 50V CH GRM1552C1H7R0DA01D K22178209 1- A
C 3078 CHIP CAP. 68pF 50V CH GRM1552C1H680JA01D K22178232 1- A
C 3079 CHIP CAP. 1pF 50V CK GRM1554C1H1R0CA01D K22178202 1- A
C 3080 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 3081 CHIP CAP. 12pF 50V CH GRM1552C1H120JA01D K22178214 1- A
C 3082 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
