Yaesu FTDX101MP Technical Supplement

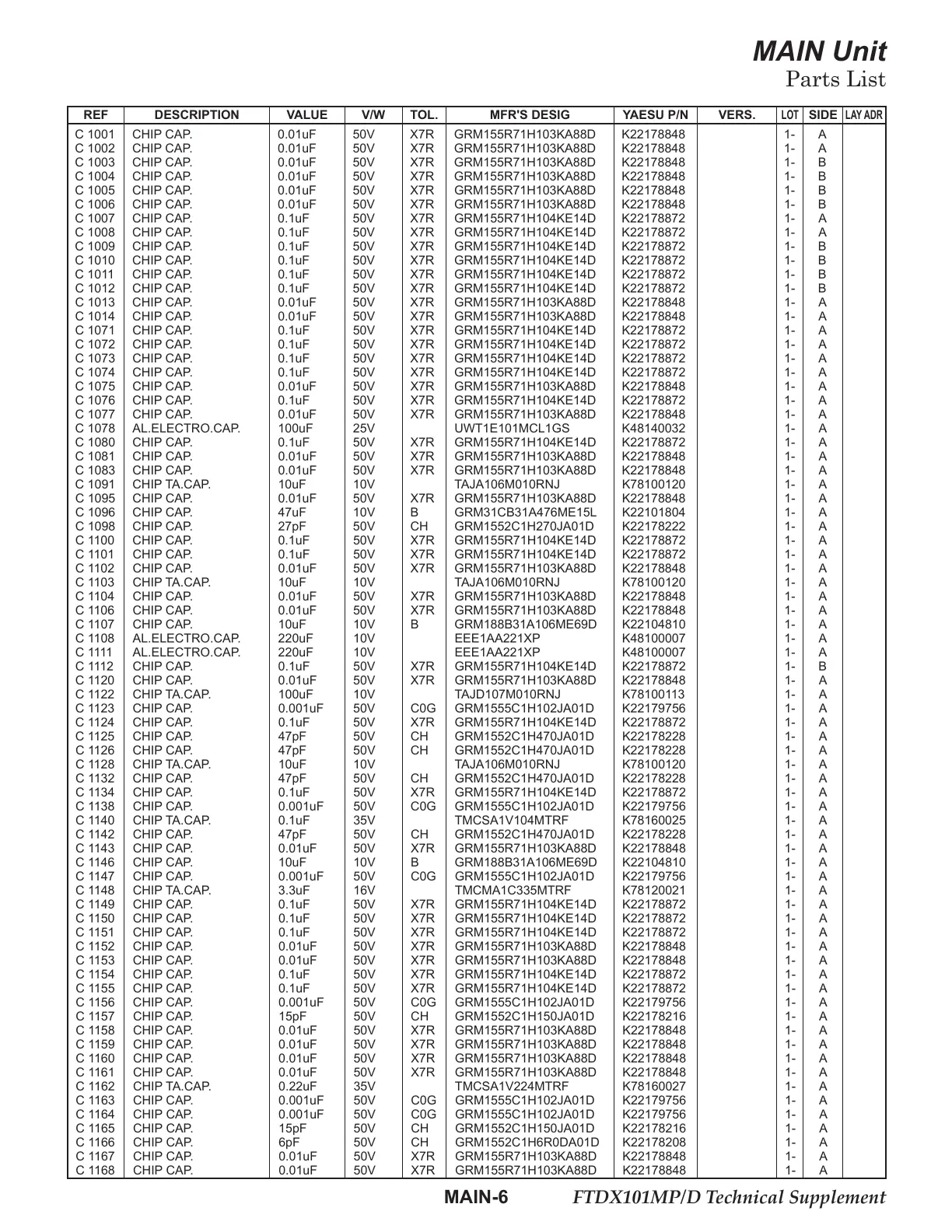

FTDX101MP/D Technical Supplement MAIN-6
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
C 1001 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1002 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1003 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- B
C 1004 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- B
C 1005 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- B
C 1006 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- B
C 1007 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1008 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1009 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
C 1010 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
C 1011 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
C 1012 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
C 1013 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1014 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1071 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1072 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1073 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1074 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1075 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1076 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1077 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1078 AL.ELECTRO.CAP. 100uF 25V UWT1E101MCL1GS K48140032 1- A
C 1080 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1081 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1083 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1091 CHIP TA.CAP. 10uF 10V TAJA106M010RNJ K78100120 1- A
C 1095 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1096 CHIP CAP. 47uF 10V B GRM31CB31A476ME15L K22101804 1- A
C 1098 CHIP CAP. 27pF 50V CH GRM1552C1H270JA01D K22178222 1- A
C 1100 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1101 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1102 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1103 CHIP TA.CAP. 10uF 10V TAJA106M010RNJ K78100120 1- A
C 1104 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1106 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1107 CHIP CAP. 10uF 10V B GRM188B31A106ME69D K22104810 1- A
C 1108 AL.ELECTRO.CAP. 220uF 10V EEE1AA221XP K48100007 1- A
C 1111 AL.ELECTRO.CAP. 220uF 10V EEE1AA221XP K48100007 1- A
C 1112 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- B
C 1120 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1122 CHIP TA.CAP. 100uF 10V TAJD107M010RNJ K78100113 1- A
C 1123 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 1124 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1125 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 1126 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 1128 CHIP TA.CAP. 10uF 10V TAJA106M010RNJ K78100120 1- A
C 1132 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 1134 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1138 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 1140 CHIP TA.CAP. 0.1uF 35V TMCSA1V104MTRF K78160025 1- A
C 1142 CHIP CAP. 47pF 50V CH GRM1552C1H470JA01D K22178228 1- A
C 1143 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1146 CHIP CAP. 10uF 10V B GRM188B31A106ME69D K22104810 1- A
C 1147 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 1148 CHIP TA.CAP. 3.3uF 16V TMCMA1C335MTRF K78120021 1- A
C 1149 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1150 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1151 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1152 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1153 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1154 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1155 CHIP CAP. 0.1uF 50V X7R GRM155R71H104KE14D K22178872 1- A
C 1156 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 1157 CHIP CAP. 15pF 50V CH GRM1552C1H150JA01D K22178216 1- A
C 1158 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1159 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1160 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1161 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1162 CHIP TA.CAP. 0.22uF 35V TMCSA1V224MTRF K78160027 1- A
C 1163 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 1164 CHIP CAP. 0.001uF 50V C0G GRM1555C1H102JA01D K22179756 1- A
C 1165 CHIP CAP. 15pF 50V CH GRM1552C1H150JA01D K22178216 1- A
C 1166 CHIP CAP. 6pF 50V CH GRM1552C1H6R0DA01D K22178208 1- A
C 1167 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
C 1168 CHIP CAP. 0.01uF 50V X7R GRM155R71H103KA88D K22178848 1- A
