FTDX101MP/D Technical Supplement SPESIFICATIONS-1

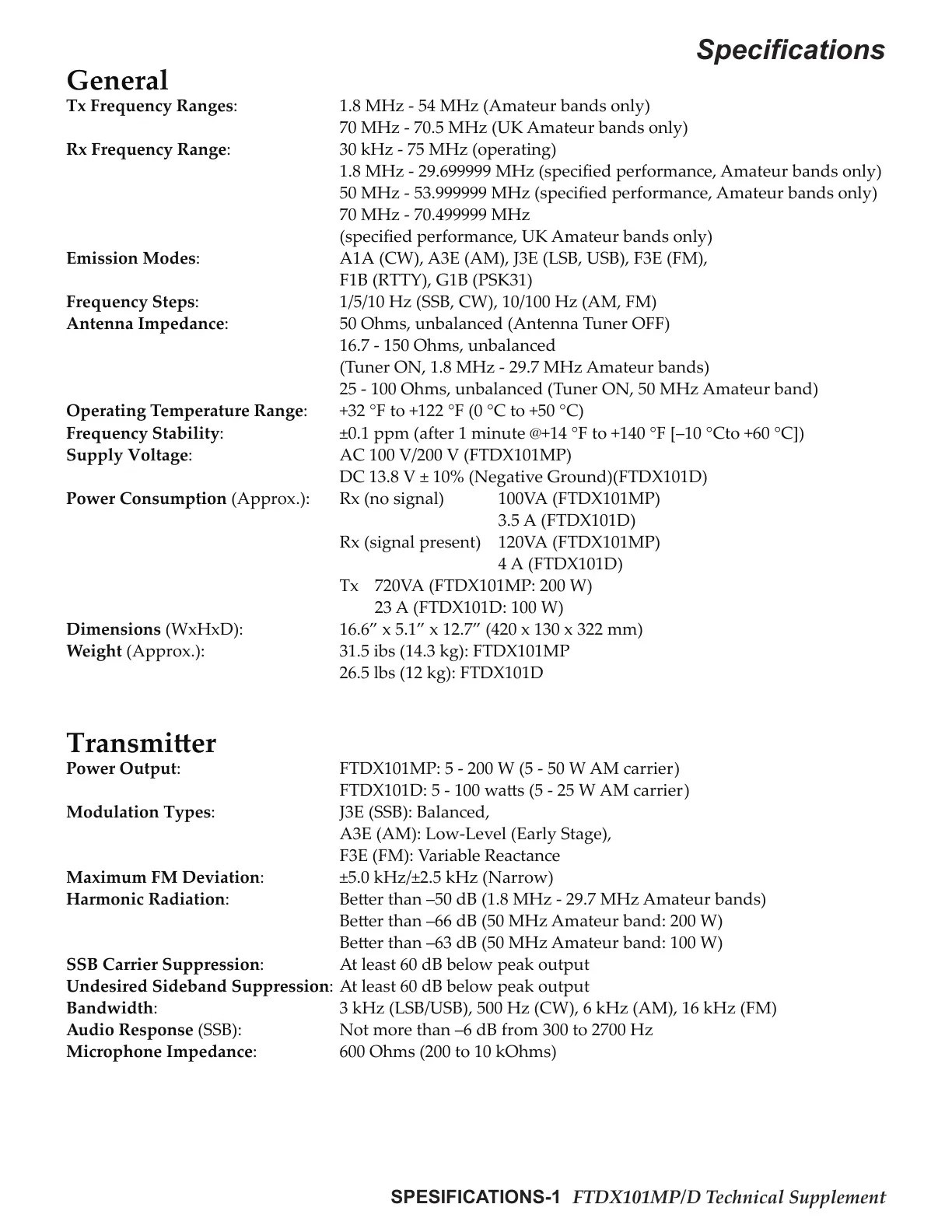

Specications
General
Tx Frequency Ranges: 1.8 MHz - 54 MHz (Amateur bands only)
70 MHz - 70.5 MHz (UK Amateur bands only)
Rx Frequency Range: 30 kHz - 75 MHz (operating)
 1.8MHz-29.699999MHz(speciedperformance,Amateurbandsonly)
 50MHz-53.999999MHz(speciedperformance,Amateurbandsonly)
70 MHz - 70.499999 MHz
 (speciedperformance,UKAmateurbandsonly)
Emission Modes: A1A(CW),A3E(AM),J3E(LSB,USB),F3E(FM),
 F1B(RTTY),G1B(PSK31)
Frequency Steps: 1/5/10Hz(SSB,CW),10/100Hz(AM,FM)
Antenna Impedance: 50Ohms,unbalanced(AntennaTunerOFF)
 16.7-150Ohms,unbalanced
 (TunerON,1.8MHz-29.7MHzAmateur bands)
 25-100Ohms,unbalanced(TunerON,50MHzAmateur band)
Operating Temperature Range: +32°Fto+122°F(0°Cto+50°C)
Frequency Stability: ±0.1ppm(after1minute@+14°Fto+140°F[–10°Cto+60°C])
Supply Voltage: AC100V/200V(FTDX101MP)
 DC13.8V±10%(NegativeGround)(FTDX101D)
Power Consumption(Approx.): Rx(nosignal) 100VA(FTDX101MP)
  3.5A(FTDX101D)
 Rx(signalpresent) 120VA(FTDX101MP)
  4A(FTDX101D)
 Tx 720VA(FTDX101MP:200W)
  23A(FTDX101D:100W)
Dimensions(WxHxD): 16.6”x5.1”x12.7”(420x130x322mm)
Weight(Approx.): 31.5ibs(14.3kg):FTDX101MP
 26.5lbs(12kg):FTDX101D
Transmier
Power Output: FTDX101MP:5 - 200 W (5 - 50 W AM carrier)
 FTDX101D:5-100was(5-25WAMcarrier)
Modulation Types: J3E(SSB):Balanced,
 A3E(AM):Low-Level(EarlyStage),
 F3E(FM):VariableReactance
Maximum FM Deviation: ±5.0kHz/±2.5kHz(Narrow)
Harmonic Radiation: Beerthan–50dB(1.8MHz-29.7MHzAmateurbands)
 Beerthan–66dB(50MHzAmateurband:200W)
 Beerthan–63dB(50MHzAmateurband:100W)
SSB Carrier Suppression: Atleast60dBbelowpeakoutput
Undesired Sideband Suppression:Atleast60dBbelowpeakoutput
Bandwidth: 3kHz(LSB/USB),500Hz(CW),6kHz(AM),16kHz(FM)
Audio Response(SSB): Notmorethan–6dBfrom300to2700Hz
Microphone Impedance: 600 Ohms (200 to 10 kOhms)
