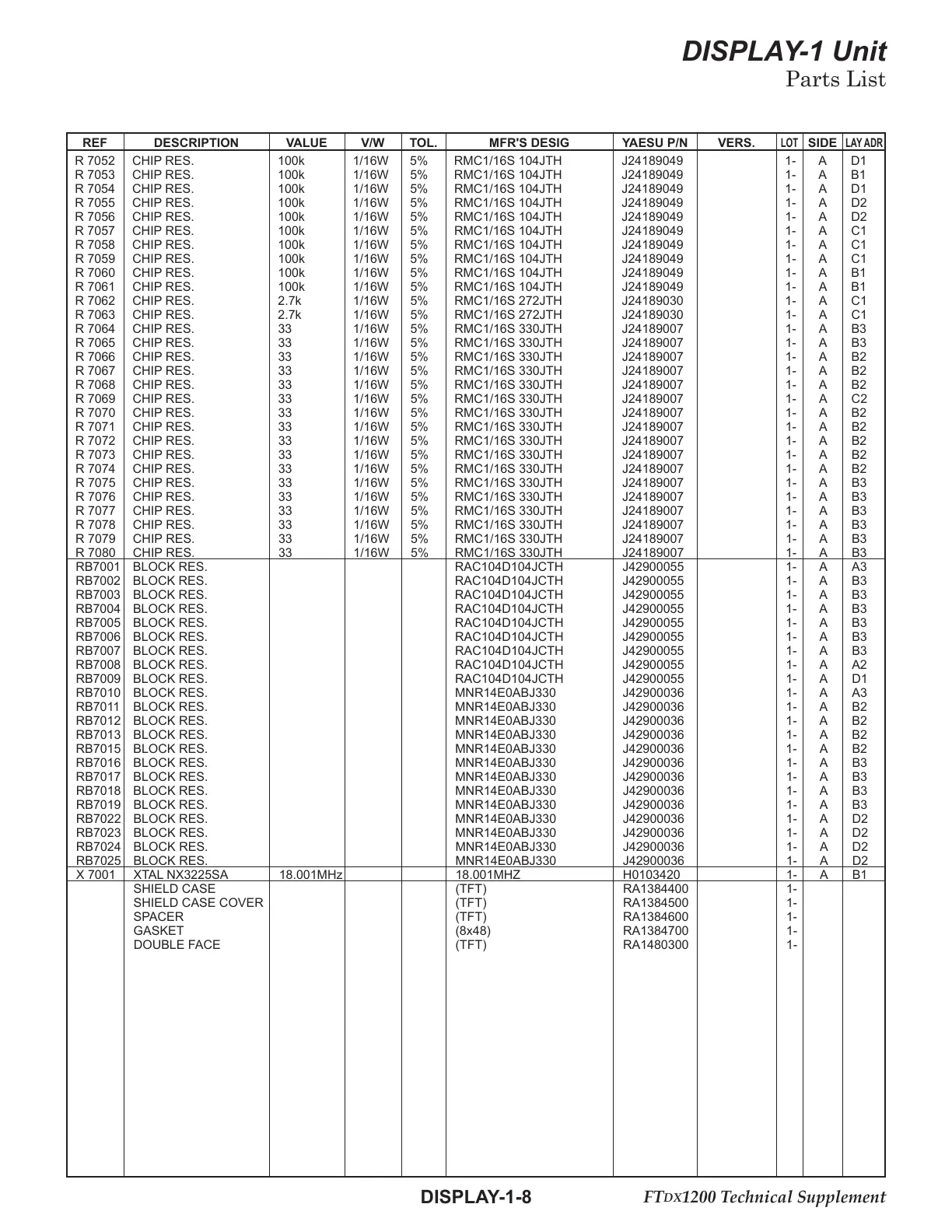

DISPLAY-1-8
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
DISPLAY-1 Unit
Parts List
FT
DX
1200 Technical Supplement
R 7052 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D1
R 7053 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B1
R 7054 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D1
R 7055 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D2
R 7056 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D2
R 7057 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C1
R 7058 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C1
R 7059 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C1
R 7060 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B1
R 7061 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B1
R 7062 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- A C1
R 7063 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- A C1
R 7064 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B3
R 7065 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B3
R 7066 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B2
R 7067 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B2
R 7068 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B2
R 7069 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A C2
R 7070 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B2
R 7071 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B2
R 7072 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B2
R 7073 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B2
R 7074 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B2
R 7075 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B3
R 7076 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B3
R 7077 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B3
R 7078 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B3
R 7079 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B3
R 7080 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- A B3
RB7001 BLOCK RES. RAC104D104JCTH J42900055 1- A A3
RB7002 BLOCK RES. RAC104D104JCTH J42900055 1- A B3
RB7003 BLOCK RES. RAC104D104JCTH J42900055 1- A B3
RB7004 BLOCK RES. RAC104D104JCTH J42900055 1- A B3
RB7005 BLOCK RES. RAC104D104JCTH J42900055 1- A B3
RB7006 BLOCK RES. RAC104D104JCTH J42900055 1- A B3
RB7007 BLOCK RES. RAC104D104JCTH J42900055 1- A B3
RB7008 BLOCK RES. RAC104D104JCTH J42900055 1- A A2
RB7009 BLOCK RES. RAC104D104JCTH J42900055 1- A D1
RB7010 BLOCK RES. MNR14E0ABJ330 J42900036 1- A A3
RB7011 BLOCK RES. MNR14E0ABJ330 J42900036 1- A B2
RB7012 BLOCK RES. MNR14E0ABJ330 J42900036 1- A B2
RB7013 BLOCK RES. MNR14E0ABJ330 J42900036 1- A B2
RB7015 BLOCK RES. MNR14E0ABJ330 J42900036 1- A B2
RB7016 BLOCK RES. MNR14E0ABJ330 J42900036 1- A B3
RB7017 BLOCK RES. MNR14E0ABJ330 J42900036 1- A B3
RB7018 BLOCK RES. MNR14E0ABJ330 J42900036 1- A B3
RB7019 BLOCK RES. MNR14E0ABJ330 J42900036 1- A B3
RB7022 BLOCK RES. MNR14E0ABJ330 J42900036 1- A D2
RB7023 BLOCK RES. MNR14E0ABJ330 J42900036 1- A D2
RB7024 BLOCK RES. MNR14E0ABJ330 J42900036 1- A D2
RB7025 BLOCK RES. MNR14E0ABJ330 J42900036 1- A D2
X 7001 XTAL NX3225SA 18.001MHz 18.001MHZ H0103420 1- A B1
SHIELD CASE (TFT) RA1384400 1-
SHIELD CASE COVER (TFT) RA1384500 1-
SPACER (TFT) RA1384600 1-
GASKET (8x48) RA1384700 1-
DOUBLE FACE (TFT) RA1480300 1-
