SW-A-3

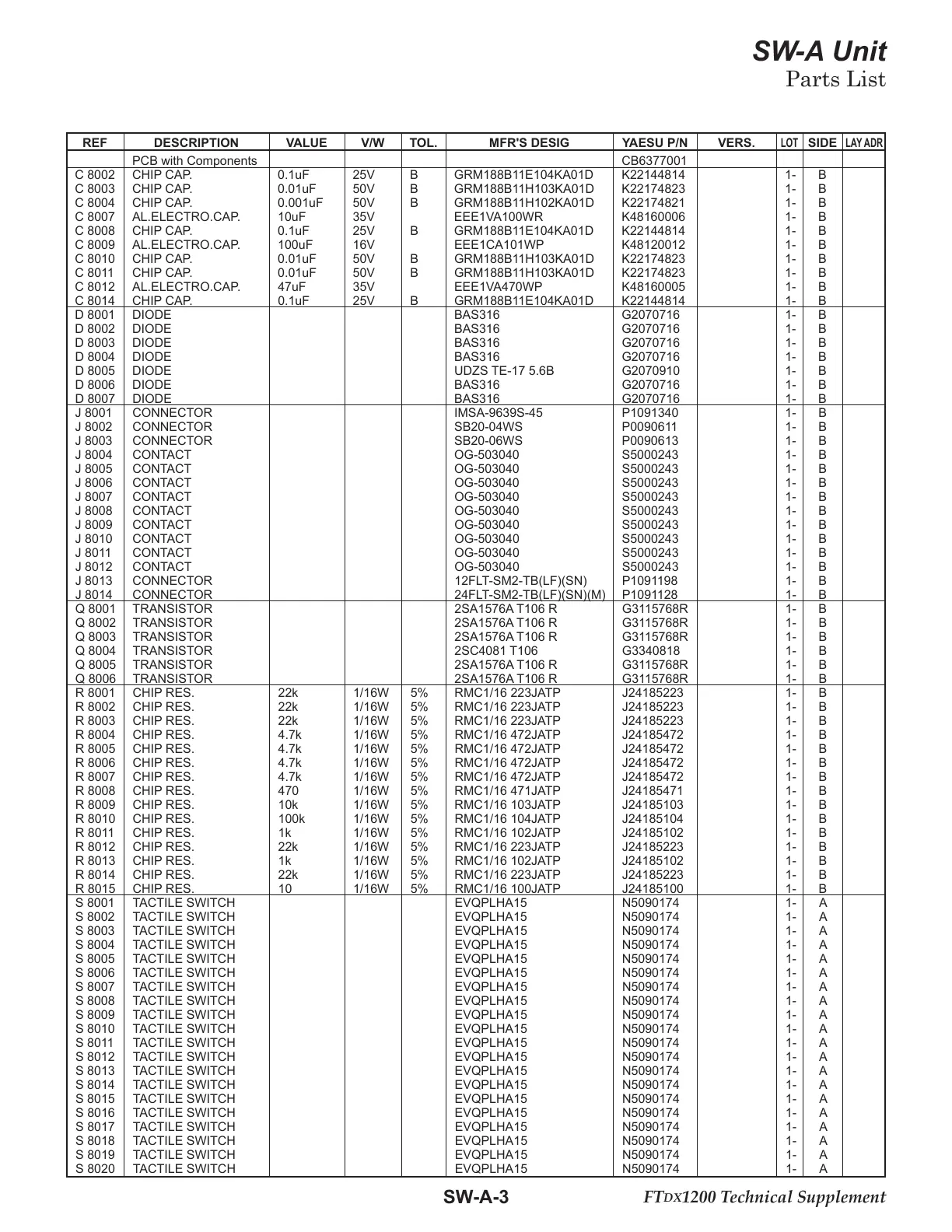

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
SW-A Unit
Parts List
FT
DX
1200 Technical Supplement
PCB with Components CB6377001
C 8002 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8003 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B
C 8004 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B
C 8007 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- B
C 8008 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8009 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- B
C 8010 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B
C 8011 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B
C 8012 AL.ELECTRO.CAP. 47uF 35V EEE1VA470WP K48160005 1- B
C 8014 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
D 8001 DIODE BAS316 G2070716 1- B
D 8002 DIODE BAS316 G2070716 1- B
D 8003 DIODE BAS316 G2070716 1- B
D 8004 DIODE BAS316 G2070716 1- B
D 8005 DIODE UDZS TE-17 5.6B G2070910 1- B
D 8006 DIODE BAS316 G2070716 1- B
D 8007 DIODE BAS316 G2070716 1- B
J 8001 CONNECTOR IMSA-9639S-45 P1091340 1- B
J 8002 CONNECTOR SB20-04WS P0090611 1- B
J 8003 CONNECTOR SB20-06WS P0090613 1- B
J 8004 CONTACT OG-503040 S5000243 1- B
J 8005 CONTACT OG-503040 S5000243 1- B
J 8006 CONTACT OG-503040 S5000243 1- B
J 8007 CONTACT OG-503040 S5000243 1- B
J 8008 CONTACT OG-503040 S5000243 1- B
J 8009 CONTACT OG-503040 S5000243 1- B
J 8010 CONTACT OG-503040 S5000243 1- B
J 8011 CONTACT OG-503040 S5000243 1- B
J 8012 CONTACT OG-503040 S5000243 1- B
J 8013 CONNECTOR 12FLT-SM2-TB(LF)(SN) P1091198 1- B
J 8014 CONNECTOR 24FLT-SM2-TB(LF)(SN)(M) P1091128 1- B
Q 8001 TRANSISTOR 2SA1576A T106 R G3115768R 1- B
Q 8002 TRANSISTOR 2SA1576A T106 R G3115768R 1- B
Q 8003 TRANSISTOR 2SA1576A T106 R G3115768R 1- B
Q 8004 TRANSISTOR 2SC4081 T106 G3340818 1- B
Q 8005 TRANSISTOR 2SA1576A T106 R G3115768R 1- B
Q 8006 TRANSISTOR 2SA1576A T106 R G3115768R 1- B
R 8001 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8002 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8003 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8004 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B
R 8005 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B
R 8006 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B
R 8007 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B
R 8008 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- B
R 8009 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B
R 8010 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B
R 8011 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B
R 8012 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8013 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B
R 8014 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8015 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- B
S 8001 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8002 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8003 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8004 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8005 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8006 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8007 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8008 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8009 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8010 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8011 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8012 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8013 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8014 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8015 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8016 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8017 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8018 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8019 TACTILE SWITCH EVQPLHA15 N5090174 1- A
S 8020 TACTILE SWITCH EVQPLHA15 N5090174 1- A
