Yaesu FTDX1200 User Manual

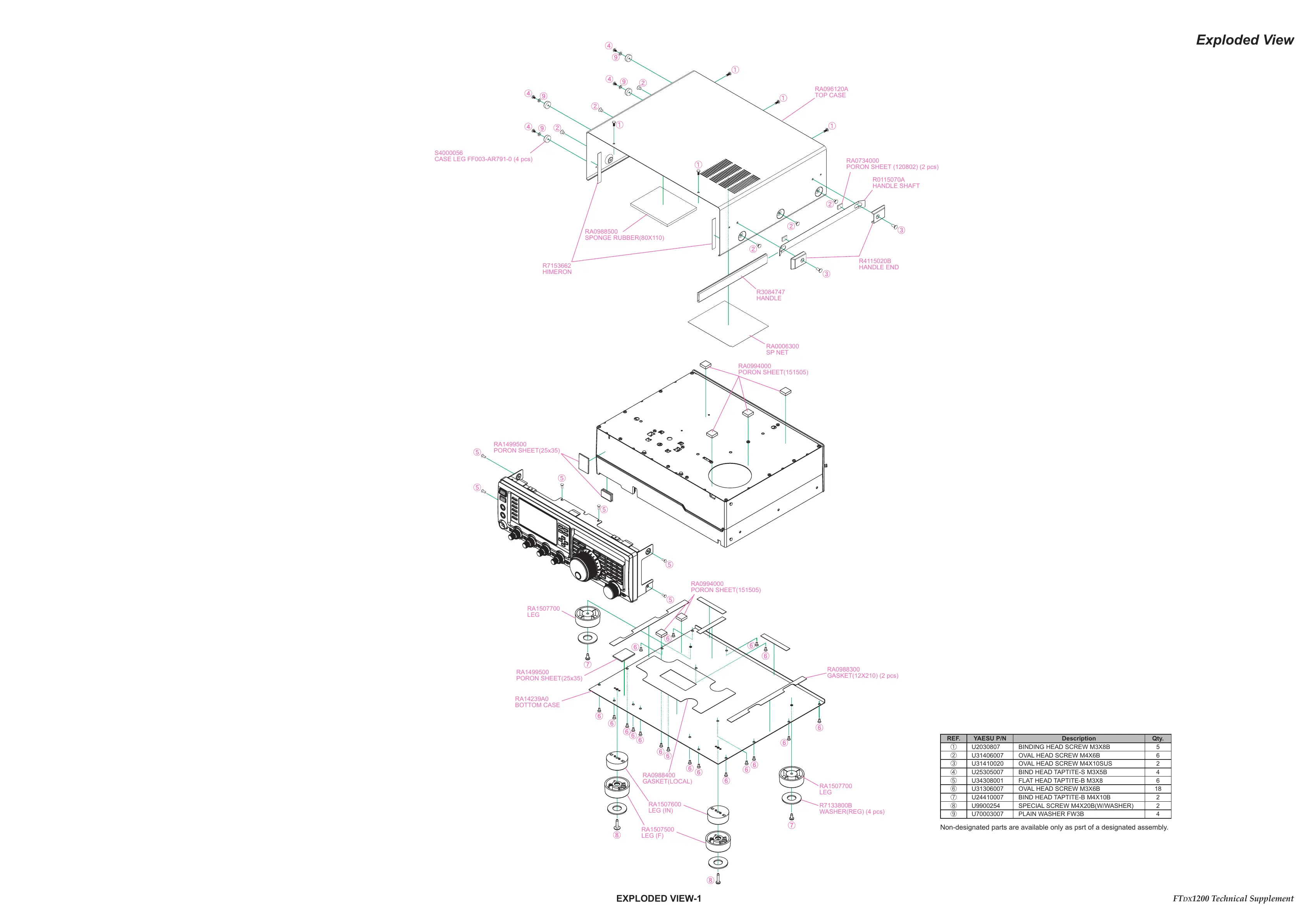

EXPLODED VIEW-1
FT
DX
1200 Technical Supplement
Exploded View
R0115070A
HANDLE SHAFT
RA096120A
TOP CASE
R4115020B
HANDLE END
R3084747
HANDLE
RA0734000
PORON SHEET (120802) (2 pcs)
S4000056
CASE LEG FF003-AR791-0 (4 pcs)
RA0988500
SPONGE RUBBER(80X110)
R7153662
HIMERON
RA0006300
SP NET
RA14239A0
BOTTOM CASE
RA0988400
GASKET(LOCAL)
R7133800B
WASHER(REG) (4 pcs)
RA1507700
LEG
RA1507700
LEG
RA1507500
LEG (F)
RA1507600
LEG (IN)
RA0988300
GASKET(12X210) (2 pcs)
RA0994000
PORON SHEET(151505)
RA0994000
PORON SHEET(151505)
①
①
①
REF. YAESU P/N Description Qty.
①
U2030807 BINDING HEAD SCREW M3X8B 5
②
U31406007 OVAL HEAD SCREW M4X6B 6
③
U31410020 OVAL HEAD SCREW M4X10SUS 2
④
U25305007 BIND HEAD TAPTITE-S M3X5B 4
⑤
U34308001 FLAT HEAD TAPTITE-B M3X8 6
⑥
U31306007 OVAL HEAD SCREW M3X6B 18
⑦
U24410007 BIND HEAD TAPTITE-B M4X10B 2
⑧
U9900254 SPECIAL SCREW M4X20B(W/WASHER) 2
⑨
U70003007 PLAIN WASHER FW3B 4
Non-designated parts are available only as psrt of a designated assembly.
①
①
②
②
③
⑤
⑤
⑤
⑤
⑤
⑤
③
②
②
②
④
④
④
④
②
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑦
⑦
⑧
⑧
RA1499500
PORON SHEET(25x35)
⑥
RA1499500
PORON SHEET(25x35)
⑨
⑨
⑨
⑨

Yaesu FTDX1200 Specifications

General

Type	HF/50 MHz Transceiver
Impedance	50 Ohms
Supply Voltage	13.8 V DC ±15%
IF DSP	Yes
Antenna Connector	SO-239
Modes	SSB, CW, AM, FM
Current Consumption	22 A
Display	TFT
Receiver Sensitivity	0.2 μV
