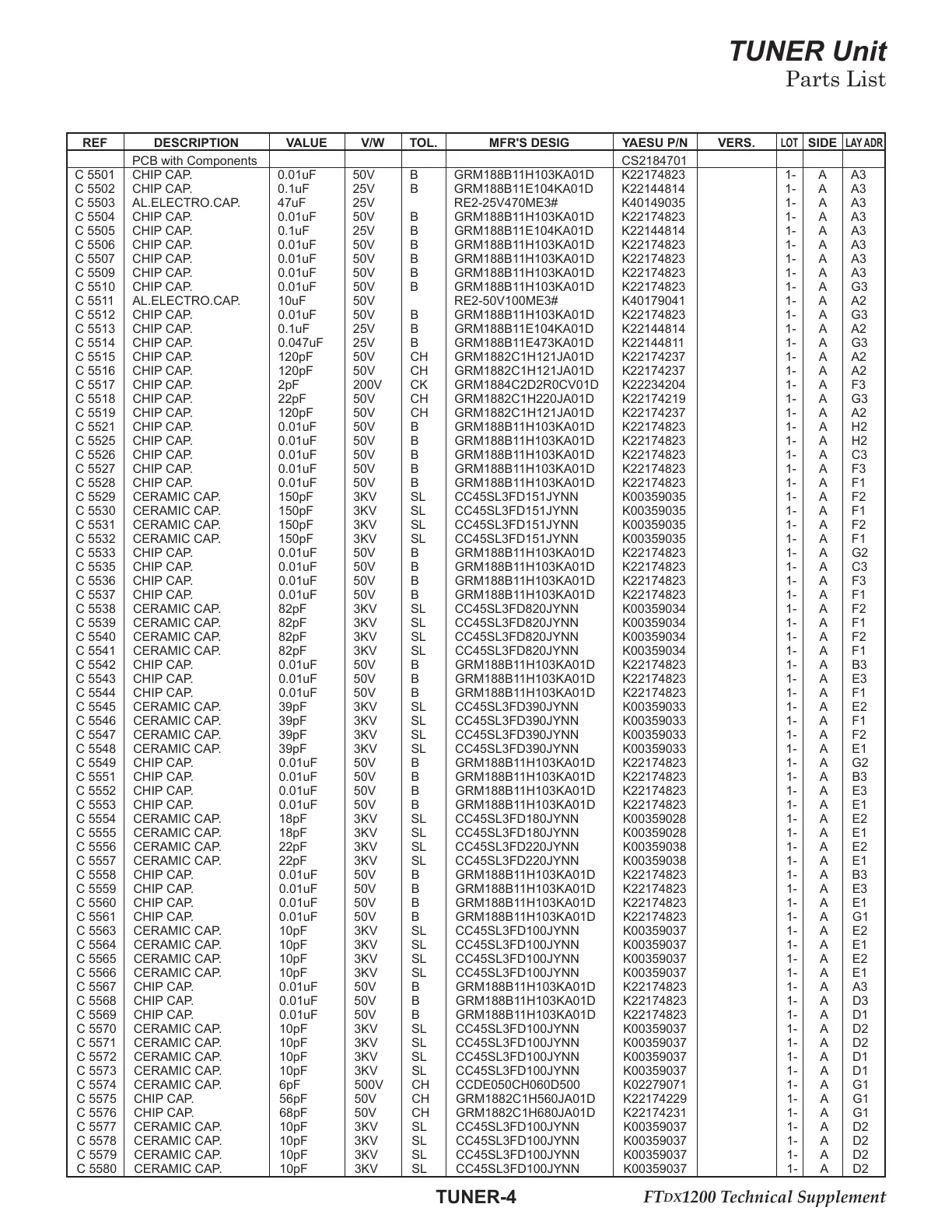

TUNER-4
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS.
LOT
SIDE
LAY ADR
TUNER Unit
Parts List
FT
DX
1200 Technical Supplement
PCB with Components CS2184701
C 5501 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 5502 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- A A3
C 5503 AL.ELECTRO.CAP. 47uF 25V RE2-25V470ME3# K40149035 1- A A3
C 5504 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 5505 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- A A3
C 5506 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 5507 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 5509 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 5510 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G3
C 5511 AL.ELECTRO.CAP. 10uF 50V RE2-50V100ME3# K40179041 1- A A2
C 5512 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G3
C 5513 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- A A2
C 5514 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 1- A G3
C 5515 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A A2
C 5516 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A A2
C 5517 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A F3
C 5518 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A G3
C 5519 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A A2
C 5521 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H2
C 5525 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H2
C 5526 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 5527 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 5528 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 5529 CERAMIC CAP. 150pF 3KV SL CC45SL3FD151JYNN K00359035 1- A F2
C 5530 CERAMIC CAP. 150pF 3KV SL CC45SL3FD151JYNN K00359035 1- A F1
C 5531 CERAMIC CAP. 150pF 3KV SL CC45SL3FD151JYNN K00359035 1- A F2
C 5532 CERAMIC CAP. 150pF 3KV SL CC45SL3FD151JYNN K00359035 1- A F1
C 5533 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 5535 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 5536 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 5537 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 5538 CERAMIC CAP. 82pF 3KV SL CC45SL3FD820JYNN K00359034 1- A F2
C 5539 CERAMIC CAP. 82pF 3KV SL CC45SL3FD820JYNN K00359034 1- A F1
C 5540 CERAMIC CAP. 82pF 3KV SL CC45SL3FD820JYNN K00359034 1- A F2
C 5541 CERAMIC CAP. 82pF 3KV SL CC45SL3FD820JYNN K00359034 1- A F1
C 5542 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B3
C 5543 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 5544 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 5545 CERAMIC CAP. 39pF 3KV SL CC45SL3FD390JYNN K00359033 1- A E2
C 5546 CERAMIC CAP. 39pF 3KV SL CC45SL3FD390JYNN K00359033 1- A F1
C 5547 CERAMIC CAP. 39pF 3KV SL CC45SL3FD390JYNN K00359033 1- A F2
C 5548 CERAMIC CAP. 39pF 3KV SL CC45SL3FD390JYNN K00359033 1- A E1
C 5549 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 5551 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B3
C 5552 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 5553 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 5554 CERAMIC CAP. 18pF 3KV SL CC45SL3FD180JYNN K00359028 1- A E2
C 5555 CERAMIC CAP. 18pF 3KV SL CC45SL3FD180JYNN K00359028 1- A E1
C 5556 CERAMIC CAP. 22pF 3KV SL CC45SL3FD220JYNN K00359038 1- A E2
C 5557 CERAMIC CAP. 22pF 3KV SL CC45SL3FD220JYNN K00359038 1- A E1
C 5558 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B3
C 5559 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 5560 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 5561 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 5563 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A E2
C 5564 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A E1
C 5565 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A E2
C 5566 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A E1
C 5567 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 5568 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 5569 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 5570 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A D2
C 5571 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A D2
C 5572 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A D1
C 5573 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A D1
C 5574 CERAMIC CAP. 6pF 500V CH CCDE050CH060D500 K02279071 1- A G1
C 5575 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A G1
C 5576 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G1
C 5577 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A D2
C 5578 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A D2
C 5579 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A D2
C 5580 CERAMIC CAP. 10pF 3KV SL CC45SL3FD100JYNN K00359037 1- A D2
To Next Page
