VR-A-2

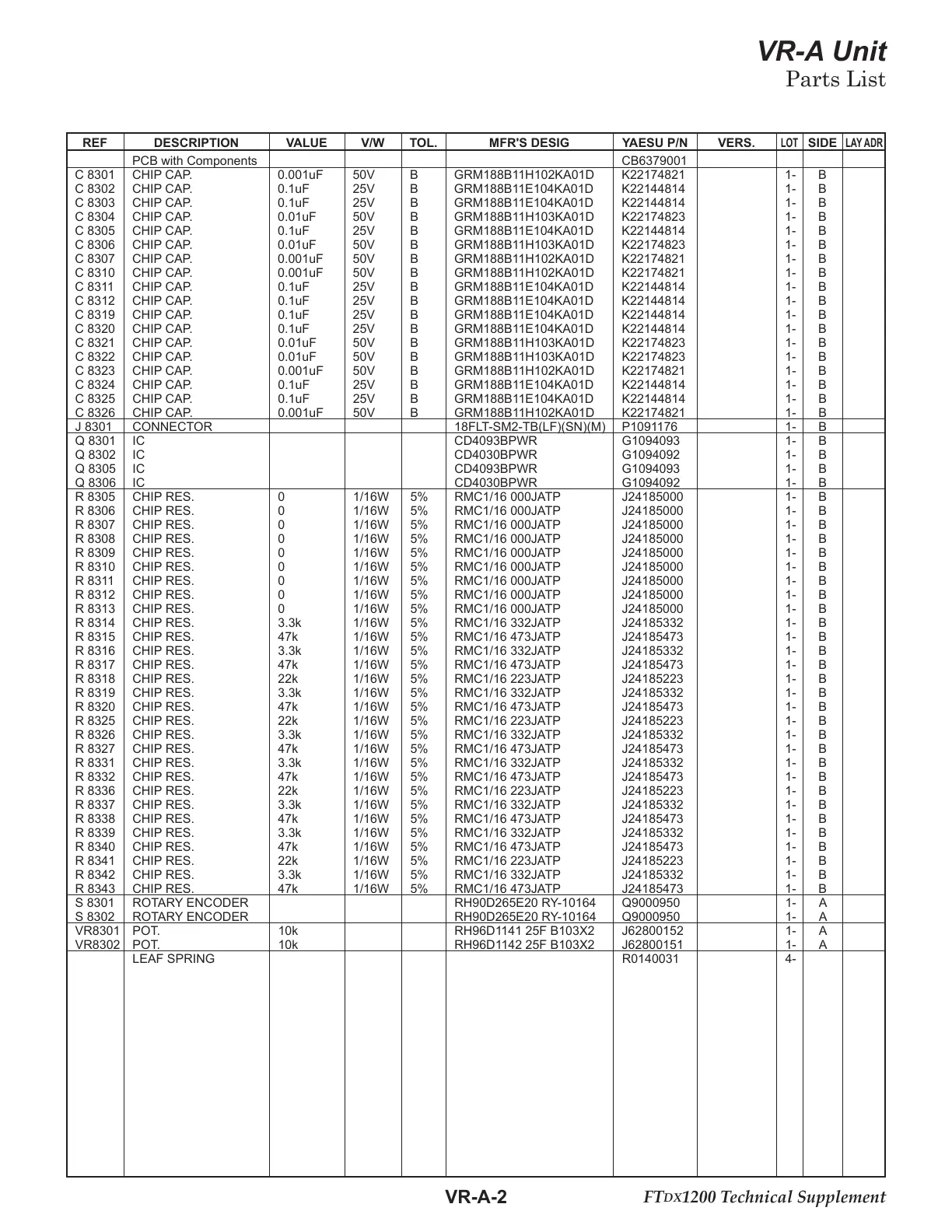

VR-A Unit
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR
Parts List
FT
DX
1200 Technical Supplement
PCB with Components CB6379001
C 8301 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B
C 8302 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8303 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8304 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B
C 8305 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8306 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B
C 8307 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B
C 8310 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B
C 8311 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8312 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8319 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8320 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8321 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B
C 8322 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B
C 8323 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B
C 8324 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8325 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- B
C 8326 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B
J 8301 CONNECTOR 18FLT-SM2-TB(LF)(SN)(M) P1091176 1- B
Q 8301 IC CD4093BPWR G1094093 1- B
Q 8302 IC CD4030BPWR G1094092 1- B
Q 8305 IC CD4093BPWR G1094093 1- B
Q 8306 IC CD4030BPWR G1094092 1- B
R 8305 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8306 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8307 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8308 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8309 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8310 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8311 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8312 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8313 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B
R 8314 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B
R 8315 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B
R 8316 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B
R 8317 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B
R 8318 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8319 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B
R 8320 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B
R 8325 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8326 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B
R 8327 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B
R 8331 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B
R 8332 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B
R 8336 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8337 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B
R 8338 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B
R 8339 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B
R 8340 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B
R 8341 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B
R 8342 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B
R 8343 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B
S 8301 ROTARY ENCODER RH90D265E20 RY-10164 Q9000950 1- A
S 8302 ROTARY ENCODER RH90D265E20 RY-10164 Q9000950 1- A
VR8301 POT. 10k RH96D1141 25F B103X2 J62800152 1- A
VR8302 POT. 10k RH96D1142 25F B103X2 J62800151 1- A
LEAF SPRING R0140031 4-

Yaesu FTDX1200 Specifications

General

Type	HF/50 MHz Transceiver
Impedance	50 Ohms
Supply Voltage	13.8 V DC ±15%
IF DSP	Yes
Antenna Connector	SO-239
Modes	SSB, CW, AM, FM
Current Consumption	22 A
Display	TFT
Receiver Sensitivity	0.2 μV
