PA-6
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS. LOT SIDE LAY ADR

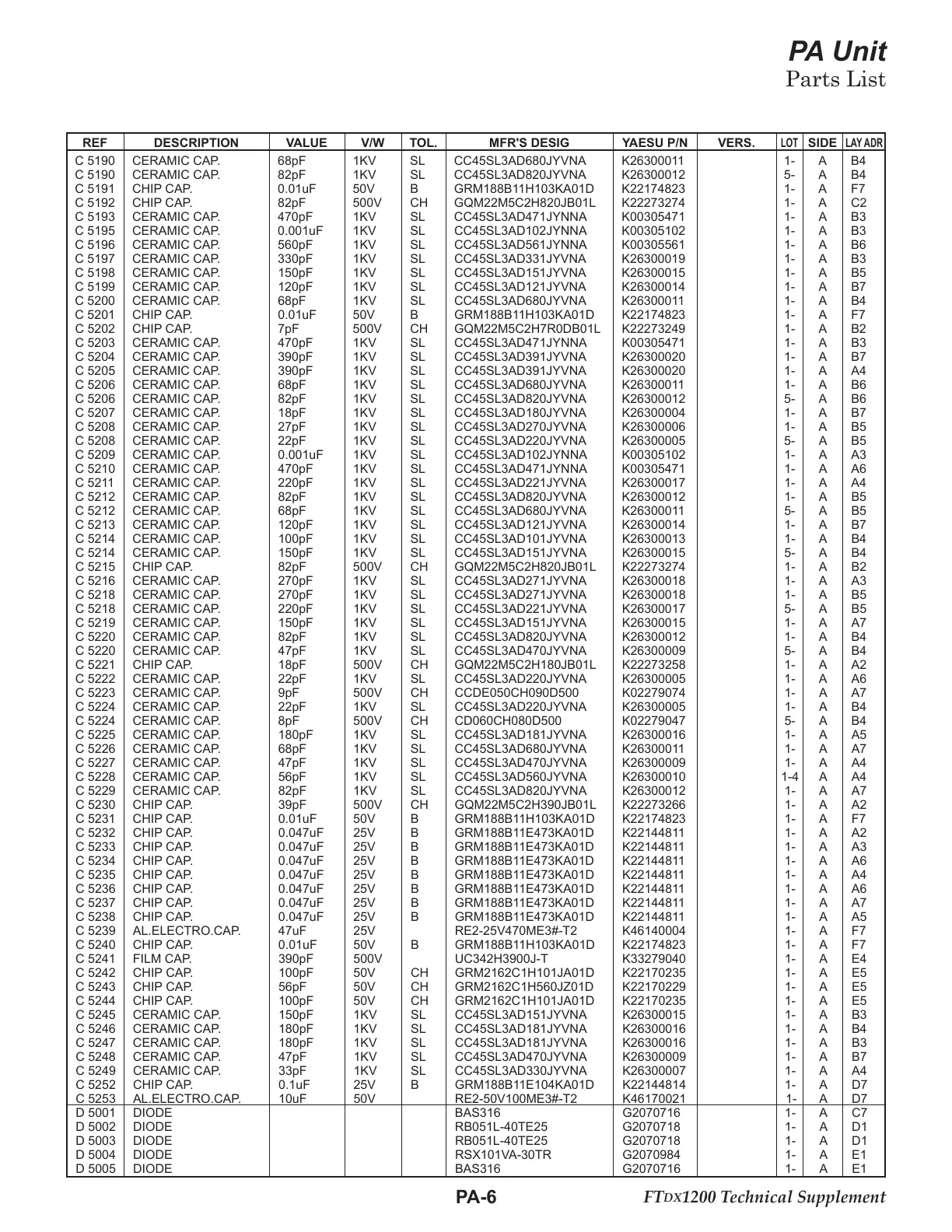

PA Unit
Parts List
FT
DX
1200 Technical Supplement
C 5190 CERAMIC CAP. 68pF 1KV SL CC45SL3AD680JYVNA K26300011 1- A B4
C 5190 CERAMIC CAP. 82pF 1KV SL CC45SL3AD820JYVNA K26300012 5- A B4
C 5191 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F7
C 5192 CHIP CAP. 82pF 500V CH GQM22M5C2H820JB01L K22273274 1- A C2
C 5193 CERAMIC CAP. 470pF 1KV SL CC45SL3AD471JYNNA K00305471 1- A B3
C 5195 CERAMIC CAP. 0.001uF 1KV SL CC45SL3AD102JYNNA K00305102 1- A B3
C 5196 CERAMIC CAP. 560pF 1KV SL CC45SL3AD561JYNNA K00305561 1- A B6
C 5197 CERAMIC CAP. 330pF 1KV SL CC45SL3AD331JYVNA K26300019 1- A B3
C 5198 CERAMIC CAP. 150pF 1KV SL CC45SL3AD151JYVNA K26300015 1- A B5
C 5199 CERAMIC CAP. 120pF 1KV SL CC45SL3AD121JYVNA K26300014 1- A B7
C 5200 CERAMIC CAP. 68pF 1KV SL CC45SL3AD680JYVNA K26300011 1- A B4
C 5201 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F7
C 5202 CHIP CAP. 7pF 500V CH GQM22M5C2H7R0DB01L K22273249 1- A B2
C 5203 CERAMIC CAP. 470pF 1KV SL CC45SL3AD471JYNNA K00305471 1- A B3
C 5204 CERAMIC CAP. 390pF 1KV SL CC45SL3AD391JYVNA K26300020 1- A B7
C 5205 CERAMIC CAP. 390pF 1KV SL CC45SL3AD391JYVNA K26300020 1- A A4
C 5206 CERAMIC CAP. 68pF 1KV SL CC45SL3AD680JYVNA K26300011 1- A B6
C 5206 CERAMIC CAP. 82pF 1KV SL CC45SL3AD820JYVNA K26300012 5- A B6
C 5207 CERAMIC CAP. 18pF 1KV SL CC45SL3AD180JYVNA K26300004 1- A B7
C 5208 CERAMIC CAP. 27pF 1KV SL CC45SL3AD270JYVNA K26300006 1- A B5
C 5208 CERAMIC CAP. 22pF 1KV SL CC45SL3AD220JYVNA K26300005 5- A B5
C 5209 CERAMIC CAP. 0.001uF 1KV SL CC45SL3AD102JYNNA K00305102 1- A A3
C 5210 CERAMIC CAP. 470pF 1KV SL CC45SL3AD471JYNNA K00305471 1- A A6
C 5211 CERAMIC CAP. 220pF 1KV SL CC45SL3AD221JYVNA K26300017 1- A A4
C 5212 CERAMIC CAP. 82pF 1KV SL CC45SL3AD820JYVNA K26300012 1- A B5
C 5212 CERAMIC CAP. 68pF 1KV SL CC45SL3AD680JYVNA K26300011 5- A B5
C 5213 CERAMIC CAP. 120pF 1KV SL CC45SL3AD121JYVNA K26300014 1- A B7
C 5214 CERAMIC CAP. 100pF 1KV SL CC45SL3AD101JYVNA K26300013 1- A B4
C 5214 CERAMIC CAP. 150pF 1KV SL CC45SL3AD151JYVNA K26300015 5- A B4
C 5215 CHIP CAP. 82pF 500V CH GQM22M5C2H820JB01L K22273274 1- A B2
C 5216 CERAMIC CAP. 270pF 1KV SL CC45SL3AD271JYVNA K26300018 1- A A3
C 5218 CERAMIC CAP. 270pF 1KV SL CC45SL3AD271JYVNA K26300018 1- A B5
C 5218 CERAMIC CAP. 220pF 1KV SL CC45SL3AD221JYVNA K26300017 5- A B5
C 5219 CERAMIC CAP. 150pF 1KV SL CC45SL3AD151JYVNA K26300015 1- A A7
C 5220 CERAMIC CAP. 82pF 1KV SL CC45SL3AD820JYVNA K26300012 1- A B4
C 5220 CERAMIC CAP. 47pF 1KV SL CC45SL3AD470JYVNA K26300009 5- A B4
C 5221 CHIP CAP. 18pF 500V CH GQM22M5C2H180JB01L K22273258 1- A A2
C 5222 CERAMIC CAP. 22pF 1KV SL CC45SL3AD220JYVNA K26300005 1- A A6
C 5223 CERAMIC CAP. 9pF 500V CH CCDE050CH090D500 K02279074 1- A A7
C 5224 CERAMIC CAP. 22pF 1KV SL CC45SL3AD220JYVNA K26300005 1- A B4
C 5224 CERAMIC CAP. 8pF 500V CH CD060CH080D500 K02279047 5- A B4
C 5225 CERAMIC CAP. 180pF 1KV SL CC45SL3AD181JYVNA K26300016 1- A A5
C 5226 CERAMIC CAP. 68pF 1KV SL CC45SL3AD680JYVNA K26300011 1- A A7
C 5227 CERAMIC CAP. 47pF 1KV SL CC45SL3AD470JYVNA K26300009 1- A A4
C 5228 CERAMIC CAP. 56pF 1KV SL CC45SL3AD560JYVNA K26300010 1-4 A A4
C 5229 CERAMIC CAP. 82pF 1KV SL CC45SL3AD820JYVNA K26300012 1- A A7
C 5230 CHIP CAP. 39pF 500V CH GQM22M5C2H390JB01L K22273266 1- A A2
C 5231 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F7
C 5232 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 1- A A2
C 5233 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 1- A A3
C 5234 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 1- A A6
C 5235 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 1- A A4
C 5236 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 1- A A6
C 5237 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 1- A A7
C 5238 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 1- A A5
C 5239 AL.ELECTRO.CAP. 47uF 25V RE2-25V470ME3#-T2 K46140004 1- A F7
C 5240 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F7
C 5241 FILM CAP. 390pF 500V UC342H3900J-T K33279040 1- A E4
C 5242 CHIP CAP. 100pF 50V CH GRM2162C1H101JA01D K22170235 1- A E5
C 5243 CHIP CAP. 56pF 50V CH GRM2162C1H560JZ01D K22170229 1- A E5
C 5244 CHIP CAP. 100pF 50V CH GRM2162C1H101JA01D K22170235 1- A E5
C 5245 CERAMIC CAP. 150pF 1KV SL CC45SL3AD151JYVNA K26300015 1- A B3
C 5246 CERAMIC CAP. 180pF 1KV SL CC45SL3AD181JYVNA K26300016 1- A B4
C 5247 CERAMIC CAP. 180pF 1KV SL CC45SL3AD181JYVNA K26300016 1- A B3
C 5248 CERAMIC CAP. 47pF 1KV SL CC45SL3AD470JYVNA K26300009 1- A B7
C 5249 CERAMIC CAP. 33pF 1KV SL CC45SL3AD330JYVNA K26300007 1- A A4
C 5252 CHIP CAP. 0.1uF 25V B GRM188B11E104KA01D K22144814 1- A D7
C 5253 AL.ELECTRO.CAP. 10uF 50V RE2-50V100ME3#-T2 K46170021 1- A D7
D 5001 DIODE BAS316 G2070716 1- A C7
D 5002 DIODE RB051L-40TE25 G2070718 1- A D1
D 5003 DIODE RB051L-40TE25 G2070718 1- A D1
D 5004 DIODE RSX101VA-30TR G2070984 1- A E1
D 5005 DIODE BAS316 G2070716 1- A E1
