Page 131FTDX5000 OPERATING MANUAL
RX DSP GROUP
119 RDSP HRTY SHP
Function: Selects the passband characteristics of the DSP
filter for the RTTY mode on the HF band.
Available Values: SOFT / SHARP
Default Setting: SHARP
SOFT: Primary importance is attached to the phase
of the filter factor.
SHARP: Primary importance is attached to the ampli-
tude of the filter factor.
120 RDSP HRTY SLP
Function: Selects the shape factor of the DSP filter for
the RTTY mode on the HF band.
Available Values: STEEP / MEDIUM / GENTLE
Default Setting: MEDIUM
121 RDSP HSSB SHP
Function: Selects the passband characteristics of the DSP
filter for the SSB mode on the HF band.
Available Values: SOFT / SHARP
Default Setting: SHARP
SOFT: Primary importance is attached to the phase
of the filter factor.
SHARP: Primary importance is attached to the ampli-
tude of the filter factor.
122 RDSP HSSB SLP
Function: Selects the shape factor of the DSP filter for
the SSB mode on the HF band.
Available Values: STEEP / MEDIUM / GENTLE
Default Setting: MEDIUM
123 RDSP VCW SHP
Function: Selects the passband characteristics of the DSP
filter for the CW mode on the 50 MHz band.
Available Values: SOFT / SHARP
Default Setting: SHARP
SOFT: Primary importance is attached to the phase
of the filter factor.
SHARP: Primary importance is attached to the ampli-
tude of the filter factor.
124 RDSP VCW SLP
Function: Selects the shape factor of the DSP filter for
the CW mode on the 50 MHz band.
Available Values: STEEP / MEDIUM / GENTLE
Default Setting: MEDIUM

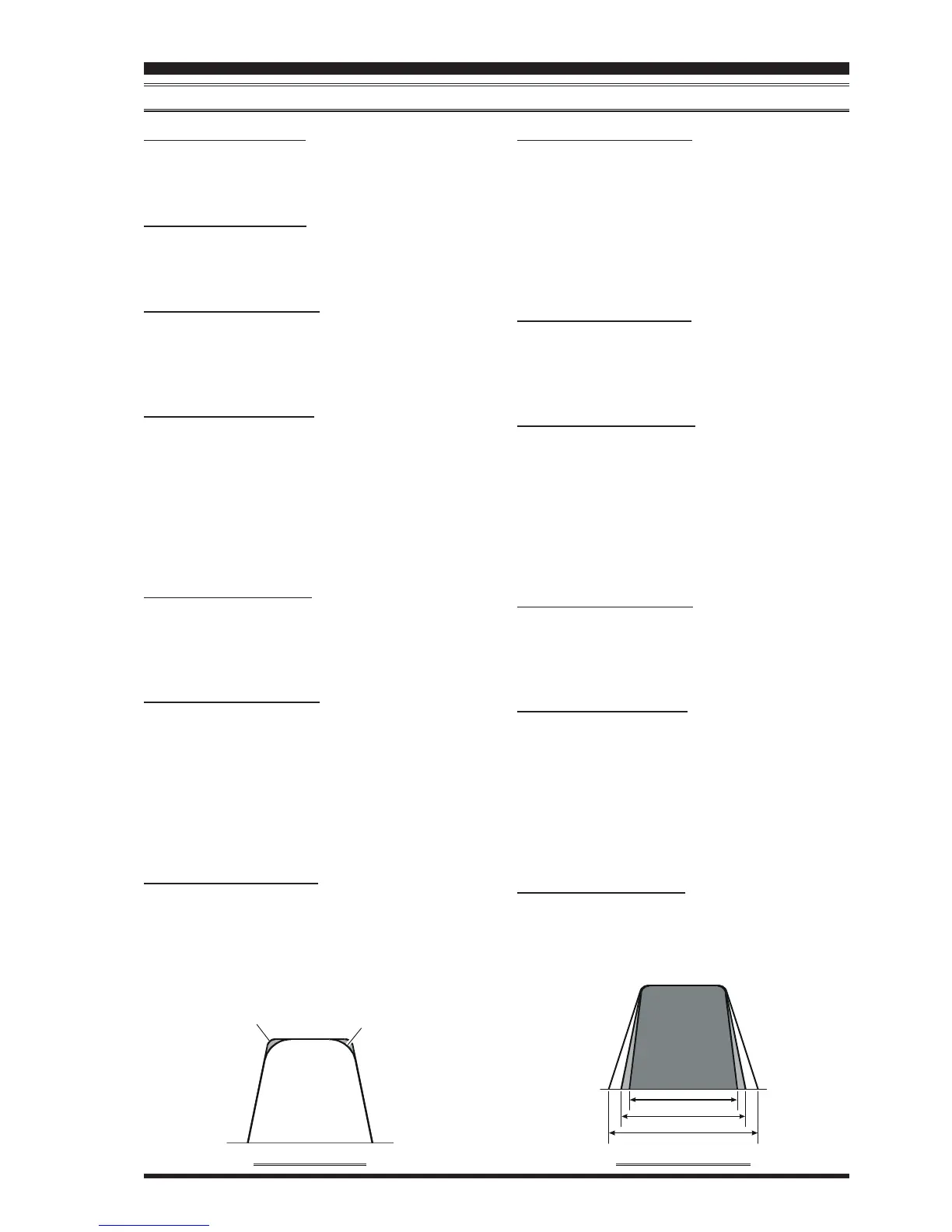

MENU MODE
DSP FILTER PASSBANDDSP FILTER SHAPE
SOFT
SHARP
STEEP
GENTLE
MEDIUM
112 RDSP CNTR LV
Function: Adjusts the gain of the Contour filter.
Available Values: –40 ~ 20 dB
Default Setting: –15 dB
113 RDSP CNTR WI
Function: Adjusts the Q-factor of the Contour filter.
Available Values: 1 ~ 11
Default Setting: 10
114 RDSP NOTCH WI
Function: Selects the bandwidth of the DSP NOTCH fil-
ter
Available Values: NARROW / WIDE
Default Setting: WIDE
115 RDSP HCW SHP
Function: Selects the passband characteristics of the DSP
filter for the CW mode on the HF band.
Available Values: SOFT / SHARP
Default Setting: SHARP
SOFT: Primary importance is attached to the phase
of the filter factor.
SHARP: Primary importance is attached to the ampli-
tude of the filter factor.
116 RDSP HCW SLP
Function: Selects the shape factor of the DSP filter for
the CW mode on the HF band.
Available Values: STEEP / MEDIUM / GENTLE
Default Setting: MEDIUM
117 RDSP HPKT SHP
Function: Selects the passband characteristics of the DSP
filter for the PKT mode on the HF band.
Available Values: SOFT / SHARP
Default Setting: SHARP
SOFT: Primary importance is attached to the phase
of the filter factor.
SHARP: Primary importance is attached to the ampli-
tude of the filter factor.
118 RDSP HPKT SLP
Function: Selects the shape factor of the DSP filter for
the PKT mode on the HF band.
Available Values: STEEP / MEDIUM / GENTLE
Default Setting: MEDIUM
To Next Page
