Page 60 FTDX5000 OPERATING MANUAL
IF SHIFT OPERATION
(
SSB/CW/RTTY/PKT/AM MODES
)
The IF Shift allows you to vary the DSP filter passband higher or lower, (without changing the pitch of the incoming signal)
to reduce or eliminate interference. Because the carrier tuning frequency is not varied, there is no need to re-tune the
operating frequency when using the IF Shift to eliminating the interference. The total passband tuning range for the IF Shift
system is ±1 kHz.
I NTERFERENCE R EJECTION
(
S IGNALS WITHIN 3 KHZ
)
VFO-A IF SHIFT Operation
 Press the
(
VFO-A
)[
SHIFT
]
button. The center posi-
tion of the IF passband will be indicated in the SUB
DISPLAY-II window. The
(
VFO-A
)[
SELECT
]
knob
will now function as the IF SHIFT knob.
 Rotate the
(
VFO-A
)[
SELECT
]
knob to the left or right
to reduce the interference.
 Press the
(
VFO-A
)[
CLEAR
]
button in briefly to
quickly move the filter passband to center. When the
filter passband is set to band center, the
(
VFO-
A
)[
SHIFT
]
button will glow red.

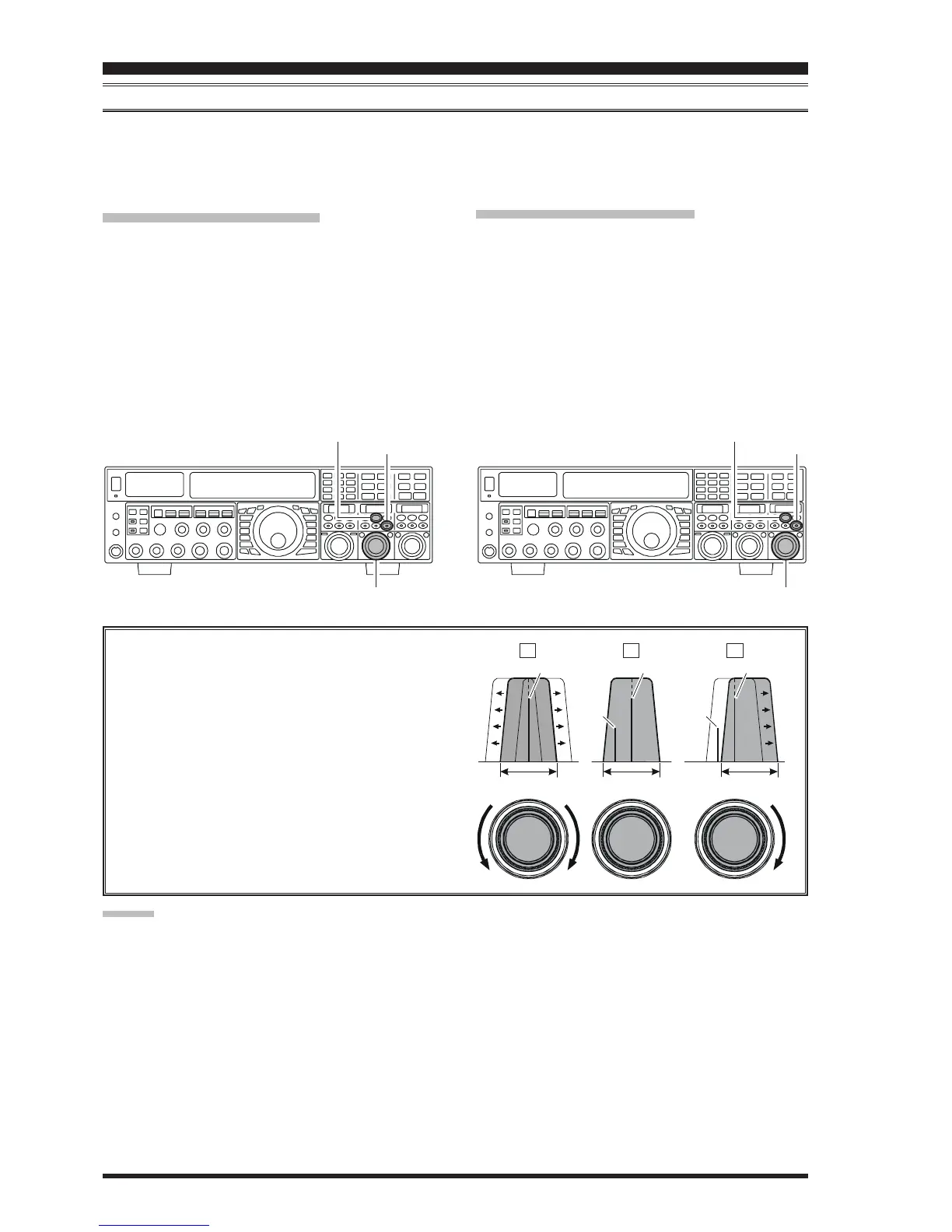

Refer to Figure “A” and notice the depiction of the IF
DSP filter as a thick line in the center of the passband,
no shift (the
[
SHIFT
]
button glows red). In Figure “B”,
an interfering signal has appeared inside the original
passband. In Figure “C”, you can see the effect of ro-
tating the
[
SELECT
](
shift
)
knob and moving the fil-
ter so that the interference is outside of the passband.
VFO-B IF SHIFT Operation
 Press the
(
VFO-B
)[
SHIFT
]
button. The center posi-
tion of the IF passband will be indicated in the SUB
DISPLAY-III window. The
(
VFO-B
)[
SELECT
]
knob
will now function as the VFO-B IF SHIFT knob.
 Rotate the
(
VFO-B
)[
SELECT
]
knob to the left or right
to reduce the interference.
 Press the
(
VFO-B
)[
CLEAR
]
button in briefly to
quickly move the filter passband to center. When the
filter passband is set to band center, the
(
VFO-
B
)[
SHIFT
]
button will glow red.
(
VFO-A
)[
SELECT
]
Knob
(
VFO-B
)[
SELECT
]
Knob
(
VFO-B
)[
SHIFT
]
Button
[
CLEAR
]
Button
(
VFO-A
)[
SHIFT
]
Button
[
CLEAR
]
Button
ABC
IF
BANDWIDTH
IF
BANDWIDTH
IF
BANDWIDTH
Desired Signal Desired Signal Desired Signal
QRMQRM
ADVICE:
You may select the display pattern shown in the SUB DIS-
PLAY window from three patterns via Menu item “019
DISP SELECT”. See page 122 for details.
