Yamaha Aerox GDR155 User Manual

Description
3-1
3
EAU10411

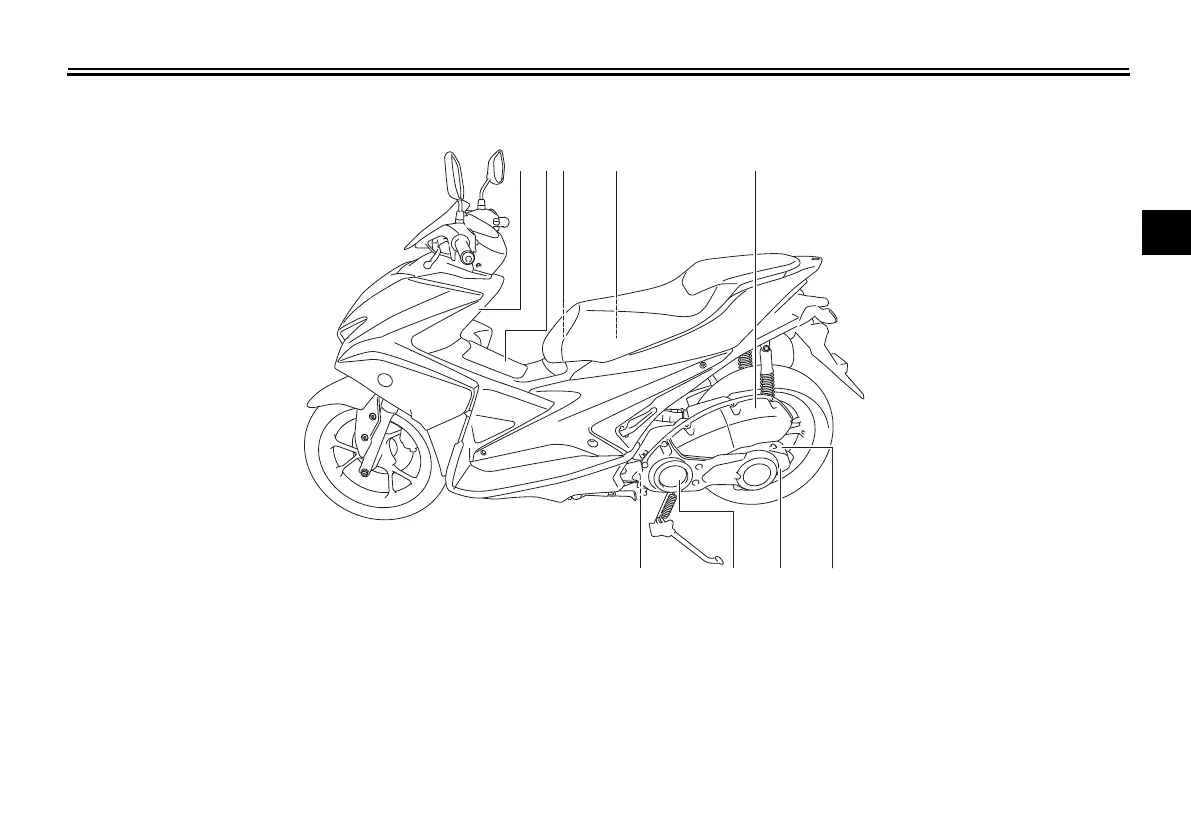

Left view
3
10,11 9 8 7
1,2 4 5 6
1. Front storage compartment (page 6-16)
2. Auxiliary DC jack (page 6-20)
3. Fuel tank cap (page 6-12)
4. Owner’s tool kit (page 9-1)
5. Rear storage compartment (page 6-16)
6. Air filter element (page 9-15)
7. Final transmission oil filler cap (page 9-12)
8. Final transmission oil drain bolt (page 9-12)
9. V-belt case air filter element (page 9-15)
10.Engine oil drain bolt A (page 9-10)
11.Engine oil drain bolt B (page 9-10)
