Indicator lights and warning
lights
GDR155/GDR155-R
GDR155-A
EAU11032
Turn signal indicator lights “ ”
and “”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU67441
Coolant temperature warning
light “ ”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning
light can be checked by turning the
main switch on. The warning light
should come on for a few seconds,
and then go off.
If the warning light does not come on
initially when main switch is turned on,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
NOTICE
ECA10022
Do not continue to operate the en-
gine if it is overheating.

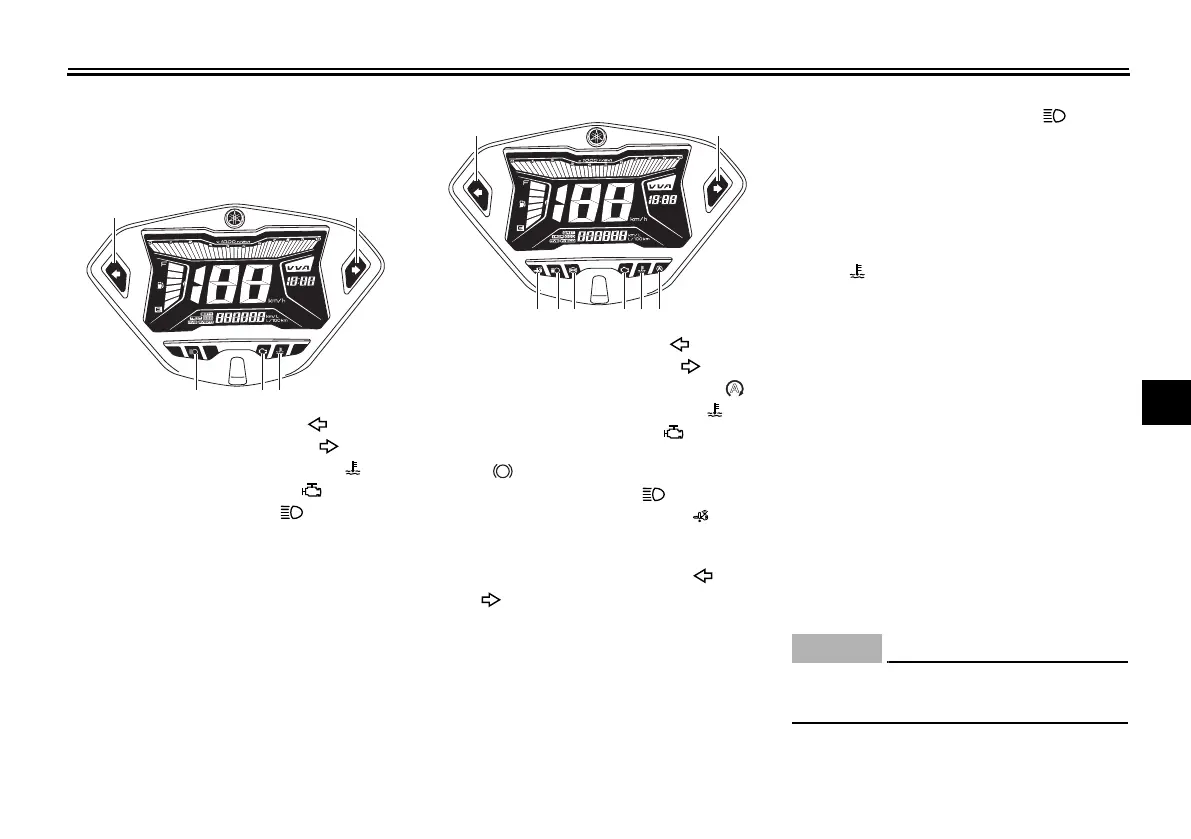

1. Left turn signal indicator light “ ”
2. Right turn signal indicator light “ ”
3. Coolant temperature warning light “ ”
4. Engine trouble warning light “ ”
5. High beam indicator light “ ”
1 2
5 4 3
1. Left turn signal indicator light “ ”
2. Right turn signal indicator light “ ”
3. Stop and Start System indicator light “ ”
4. Coolant temperature warning light “ ”
5. Engine trouble warning light “ ”
6. Anti-lock Brake System (ABS) warning
light “ ”
7. High beam indicator light “ ”
8. Smart key system indicator light “ ”
1 2
8
7 6 5 4 3
A
ABS
