Instrument and control functions
6-1
6
EAUU1761
Main switch/steering lock
(GDR155/GDR155-R)
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering, to open the
seat, and to open the fuel tank cap.
The various main switch positions are
described below.
The main switch is equipped with a
keyhole shutter.
EAU65810
ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
The meter lighting, taillight, license
plate light and auxiliary light come
on automatically when the key is
turned to “ON”.
The fuel pump can be heard when
the key is turned to “ON”.
EAUU1131
OFF
All electrical systems are off. The key
can be removed.
EAUU1043
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.

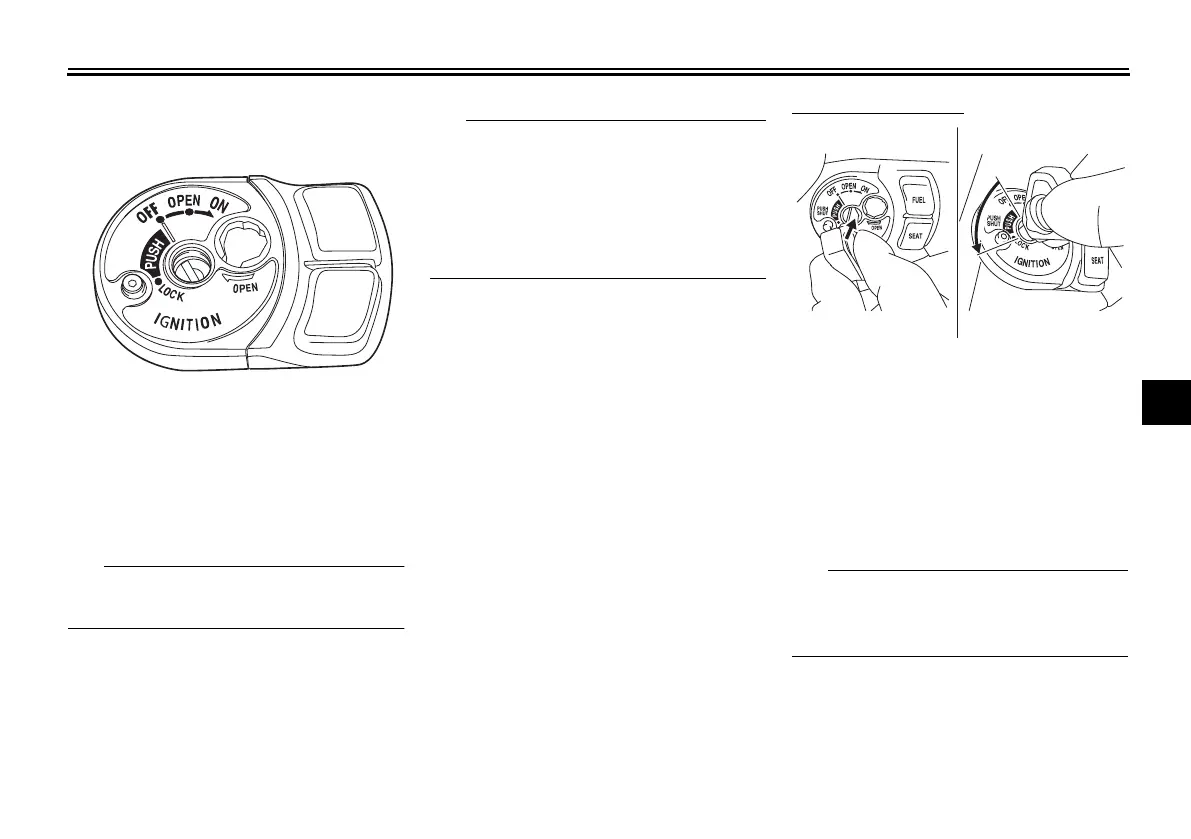

To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.
If the steering will not lock, try turning
the handlebars back to the right slight-
ly.
1. Push.
2. Turn.
