EBU24080
Adjusting the reverse lock release ca-
ble
The reverse lock release cable stretches with use,
which can result in improper function. Therefore,
the reverse lock release cable should be checked
and adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart.
EBU28412
Checking the front brake pads and rear
brake friction plates
The front brake pads and the rear brake friction
plates must be checked for wear at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
NOTE:
This ATV is equipped with a wet multiple disc type
rear brake which is located inside of the final gear
case.
EBU24171
Front brake pads
Check each front brake pad for damage and mea-
sure the lining thickness. If a brake pad is dam-
aged or if the lining thickness is less than 1.0 mm
(0.04 in), have a Yamaha dealer replace the brake
pads as a set.
NOTE:
The wheels need to be removed to check the
brake pads. (See page 8-48.)

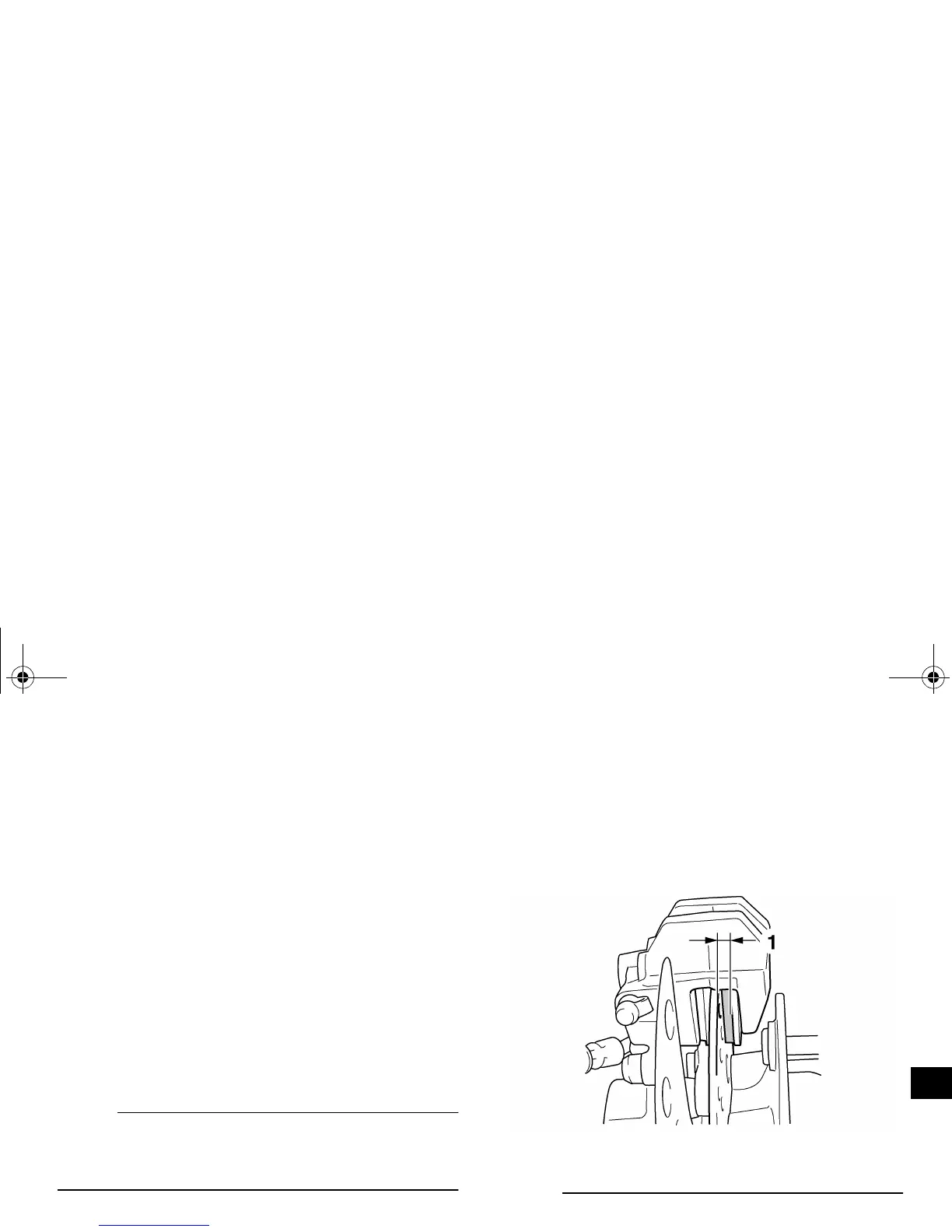

1. Lining thickness
