4-19
4
RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850
Starter (choke) “”
Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).
Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18880
Seat
To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.

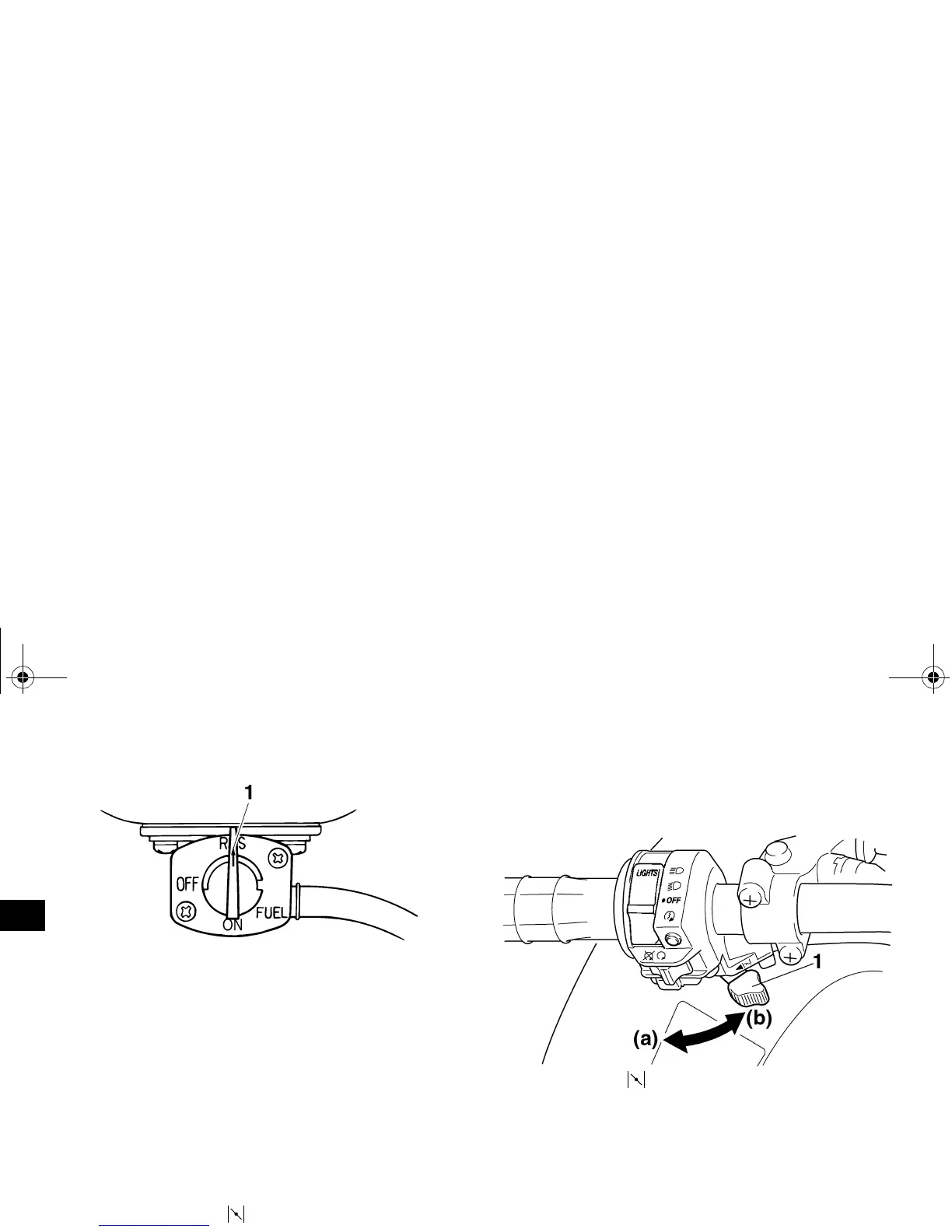

1. Arrow mark positioned over “RES”
1. Starter (choke) “”
U4S110E0.book Page 19 Friday, August 4, 2006 4:03 PM
