NOTE:
Turning the adjusting bolt out decreases clutch
free play and turning it in increases clutch free
play.
3. Tighten the locknut to the specified torque.
NOTE:
When tightening the locknut, hold the adjusting
bolt with a screwdriver so that the adjusting bolt
does not turn together with the locknut.
EBU24890
Checking and lubricating the cables
The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02120

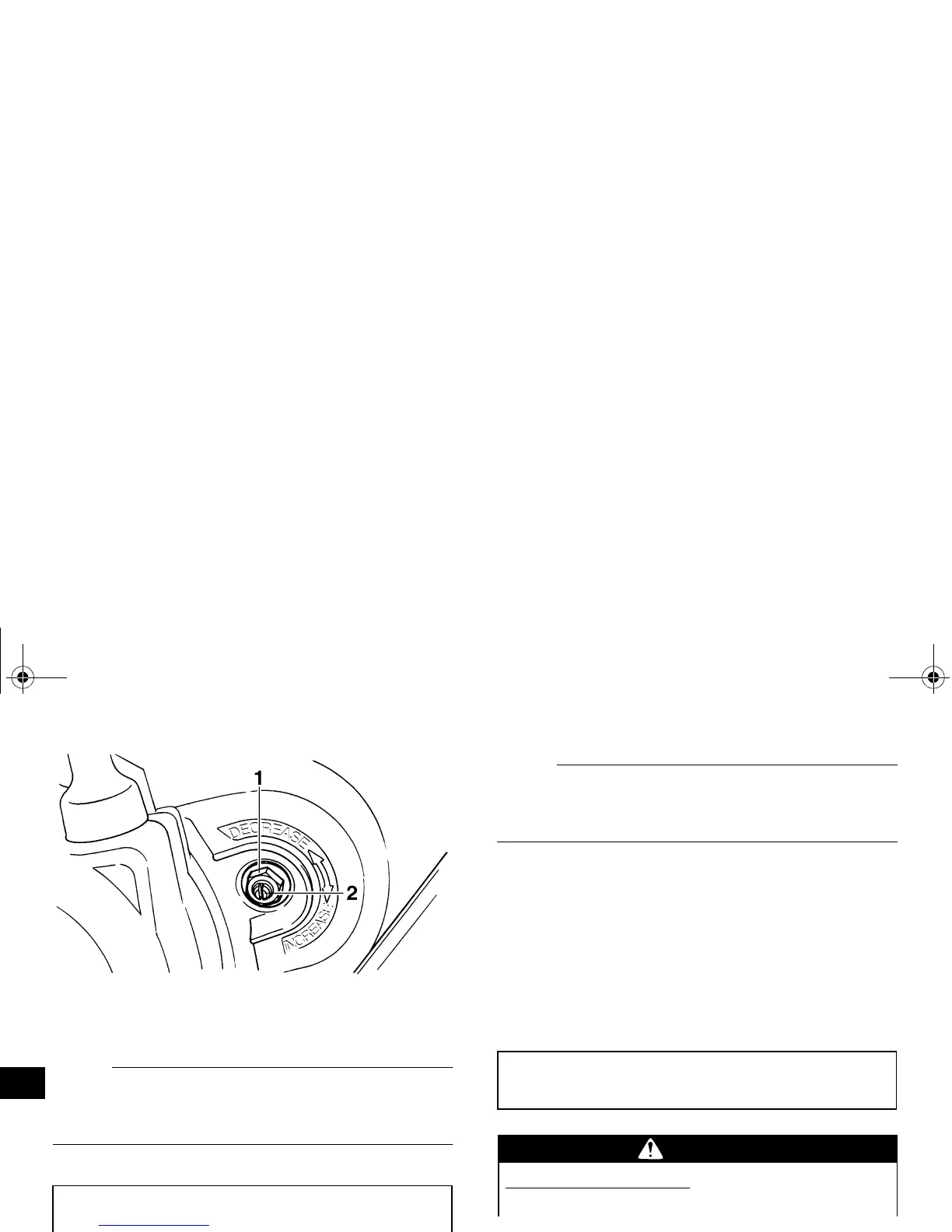

1. Locknut
2. Adjusting bolt
Tightening torque:
Locknut:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended lubricant:
Engine oil
POTENTIAL HAZARD
Damaged control cables.
