RX-V661/HTR-6060/DSP-AX761

RX-V661/HTR-6060/

DSP-AX761

Input level Volume

SPEAKER OUT SUBWOOFER

OUTPUT

1.ANALOG BYPAS

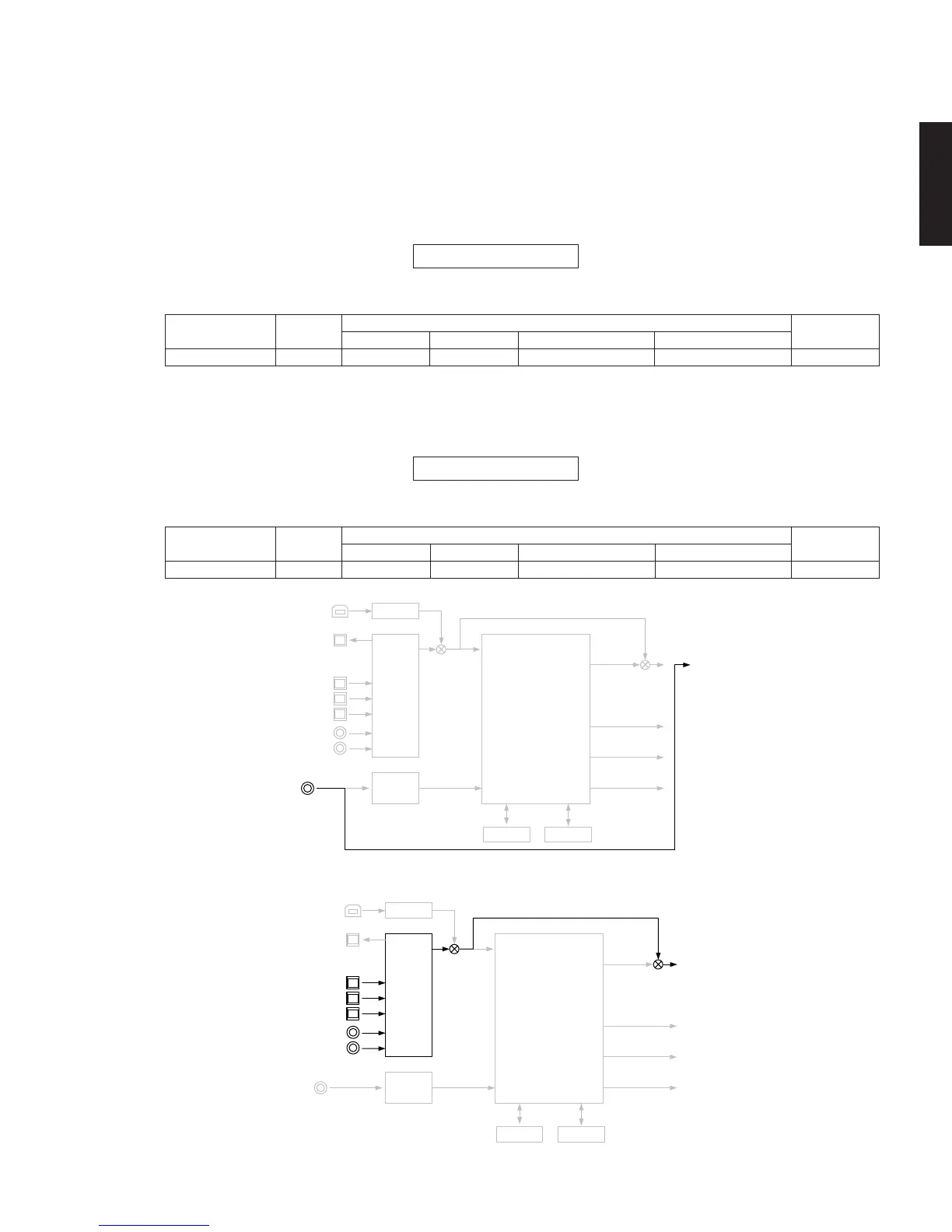

● ダイアグメニュー詳細

1. BYPASS

サブメニュー操作によりANALOG BYPASS/DSP

BYPASSが選択可能です。

ANALOGBYPASS

アナログ入力の音声信号をPUREDIRECTでFRONT

L/Rへ出力します。

• Details of DIAG menu

1. BYPASS

Using the sub-menu, it is possible to select ANALOG

BYPASS output or DSP BYPASS output.

ANALOG BYPASS

The analog input audio signal is output to FRONT L/R

by PURE DIRECT.

INPUT: DVD ANALOG

SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz

1.DSP BYPASS

Both ch, -20 dBm +6.0 dB

FRONT L/R

+12.0 dBm

CENTER

-∞

SURROUND L/R

-∞ -∞

DSPBYPASS

デジタル入力の音声信号をPUREDIRECTでFRONT

L/Rへ出力します。

DSP BYPASS

The digital input audio signal is output to FRONT L/R

by PURE DIRECT.

DIR

LC89057

DSP

(DECODE)

(POST PROCESSING)

TI D70Y

A/D

PCM1803

DRAM

FL / FR

C / SW

SL / SR

SBL / SBR

ROM

XMDT

(U, C)

SURROUND BACK L/R

-∞
