Yamaha DSP-AX761 User Manual

43
RX-V661/HTR-6060/DSP-AX761
RX-V661/HTR-6060/
DSP-AX761
11. VIDEOCHECK
サブメニュー操作により、ビデオ回路の確認をしま
す。
I2C（Interintegratedcircuit）read/writecheck
I2Cラインに接続されているマイコンと各IC間でデー
タ読み出し/書き込みの正否を自己診断します。

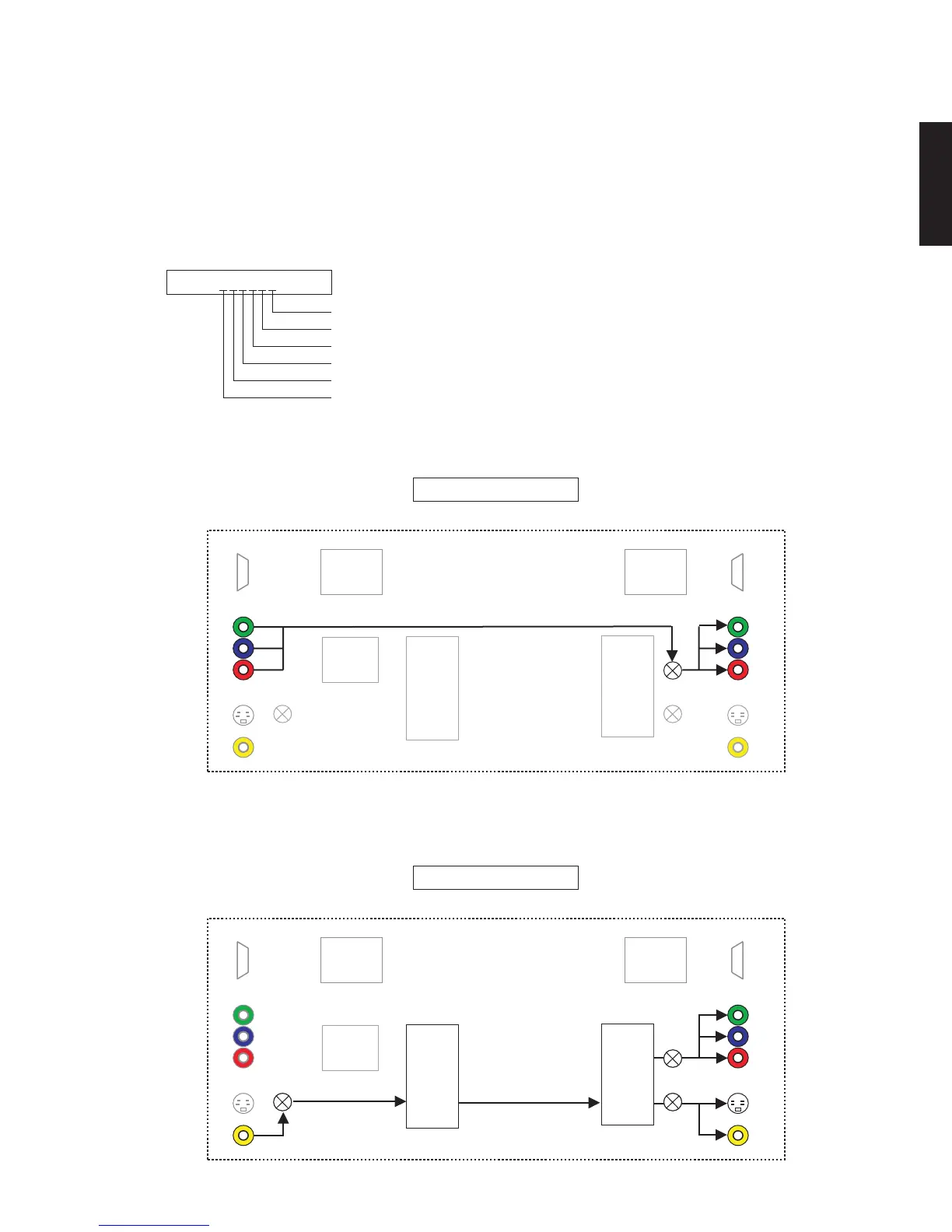

11. VIDEO CHECK
The video circuit is checked by the sub-menu opera-
tion.
I2C (Inter integrated circuit) read/write check
Self-diagnosis is executed to check whether data
reading/writing between the microprocessor con-
nected to the 12C line and each IC is done properly or
not.
0: OK / 正常
1: NG / 不良検出
0 bit: (Not applied to these models. / このモデルには適用されません。)
1 bit: IC312 (VIDEO P.C.B.)
2 bit: IC311 (VIDEO P.C.B.)
3 bit: IC1 (HDMI P.C.B.)
4 bit: IC14 (HDMI P.C.B.)
5 bit: IC18 (HDMI P.C.B.)
I2C:000000
Digitalcomponent
下記の信号経路を確認します。
Digital component
The signal passage as shown below is checked.
DIGITAL COMP
Digital component
VIDEO
IC312
ADV7172
VIDEO
ENCODER
HDMI
IC14
SII9033CTU
HDMI
IC1
SII9030CTU
HDMI IN
HDMI Out
Component Component
Video
S-Video
Video
S-Video
VIDEO
IC305
OSD
VIDEO
IC311
ADV7180
VIDEO
DECODER
DigitalCVBS（Video）
下記の信号経路を確認します。
Digital CVBS (Video)
The signal passage as shown below is checked.
DIGITAL CVBS
Digital CVBS (Video)
VIDEO
IC312
ADV7172
VIDEO
ENCODER
HDMI
IC14
SII9033CTU
HDMI
IC1
SII9030CTU
HDMI IN
HDMI Out
Component Component
Video
S-Video
Video
S-Video
VIDEO
IC305
OSD
VIDEO
IC311
ADV7180
VIDEO
DECODER
