44
RX-V661/HTR-6060/DSP-AX761
RX-V661/HTR-6060/
DSP-AX761

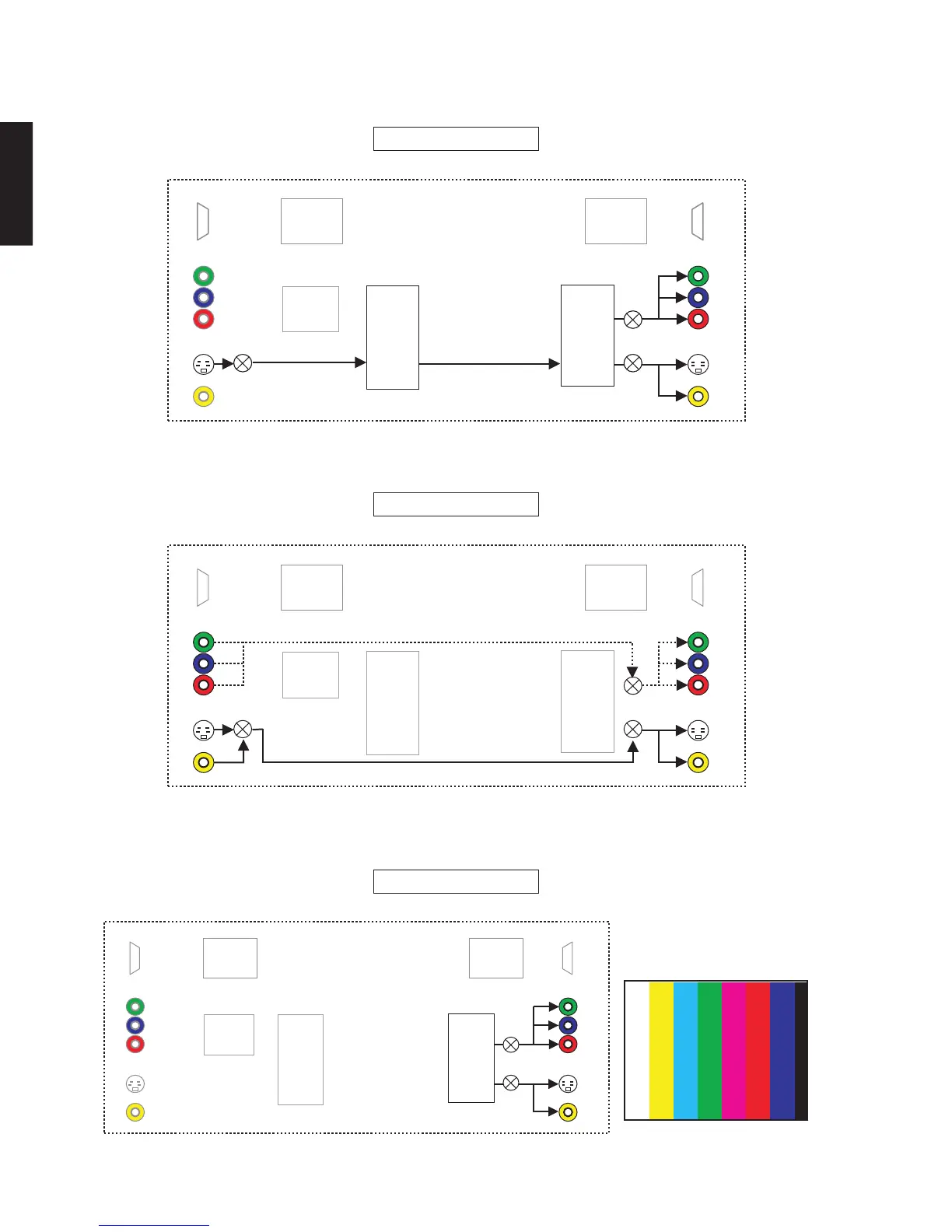

DigitalY/C（S-Video）
下記の信号経路を確認します。
Digital Y/C (S-Video)
The signal passage as shown below is checked.
DIGITAL Y/C
Digital Y/C (S-Video)
VIDEO
IC312
ADV7172
VIDEO
ENCODER
HDMI
IC14
SII9033CTU
HDMI
IC1
SII9030CTU
HDMI IN
HDMI Out
Component Component
Video
S-Video
Video
S-Video
VIDEO
IC305
OSD
VIDEO
IC311
ADV7180
VIDEO
DECODER
Analogbypass
下記の信号経路を確認します。
Analog bypass
The signal passage as shown below is checked.
ANALOG BYPASS
Analog bypass (Conversion OFF)
HDMI INComponent
Video
S-Video
HDMI
IC14
SII9033CTU
VIDEO
IC305
OSD
VIDEO
IC311
ADV7180
VIDEO
DECODER
VIDEO
IC312
ADV7172
HDMI
IC1
SII9030CTU
HDMI OutComponent
Video
S-Video
Testpattern
IC312（VIDEOP.C.B.）からテストパターンを出力します。
Test pattern
The test pattern is output from IC312 (VIDEO P.C.B.).
TEST PATTERN
IC504 Test pattern
Test pattern
HDMI INComponent
Video
S-Video
HDMI
IC14
SII9033CTU
VIDEO
IC305
OSD
VIDEO
IC311
ADV7180
VIDEO
DECODER
VIDEO
IC312
ADV7172
Test
pattern
HDMI
IC1
SII9030CTU
HDMI OutComponent
Video
S-Video
