DigitalY/C（S-Video）

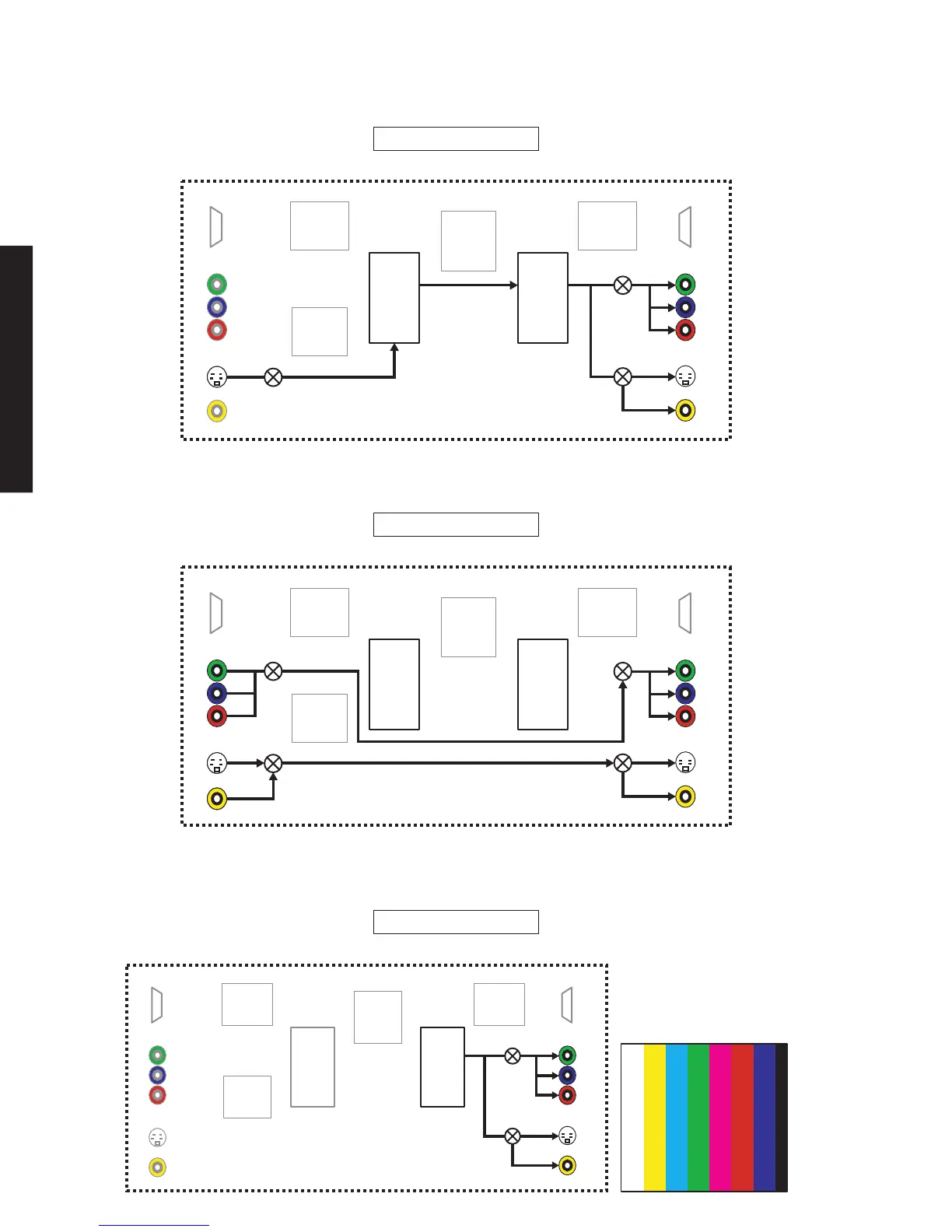

下記の信号経路を確認します。
Digital Y/C (S-Video)
The signal passage as shown below is checked.
DIGITAL Y/C
S Video
Video
Digital Y/C (S Video)
HDMI INComponent
HDMI OUTComponent
S Video
Video
HDMI
IC14
SII9033CTU
VIDEO
IC358
OSD
HDMI
IC1
SII9030CTU
HDMI
IC13
ADV7401
VIDEO
DECODER
HDMI
IC3
ADV7172
VIDEO
ENCODER
HDMI
IC27
ABT1010
I/P SCALAR
Analogbypass
下記の信号経路を確認します。
Analog bypass
The signal passage as shown below is checked.
ANALOG BYPASS
Video
S Video
Analog bypass (Conversion OFF)
HDMI INComponent
HDMI OUTComponent
S Video
Video
HDMI
IC14
SII9033CTU
VIDEO
IC358
OSD
HDMI
IC1
SII9030CTU
HDMI
IC13
ADV7401
VIDEO
DECODER
HDMI
IC3
ADV7172
VIDEO
ENCODER
HDMI
IC27
ABT1010
I/P SCALAR
Bypass
Testpattern
IC3（HDMIP.C.B.）からテストパターンを出力します。
Test pattern
The test pattern is output from IC3 (HDMI P.C.B.).
TEST PATTERN
S Video
Video
Test pattern
HDMI INComponent
HDMI OUTComponent
S Video
Video
HDMI
IC14
SII9033CTU
VIDEO
IC358
OSD
HDMI
IC1
SII9030CTU
HDMI
IC13
ADV7401
VIDEO
DECODER
HDMI
IC3
ADV7172
VIDEO
ENCODER
HDMI
IC27
ABT1010
I/P SCALAR
Test
pattern
IC3 Test pattern
