4-12

FUEL

CARBURETOR

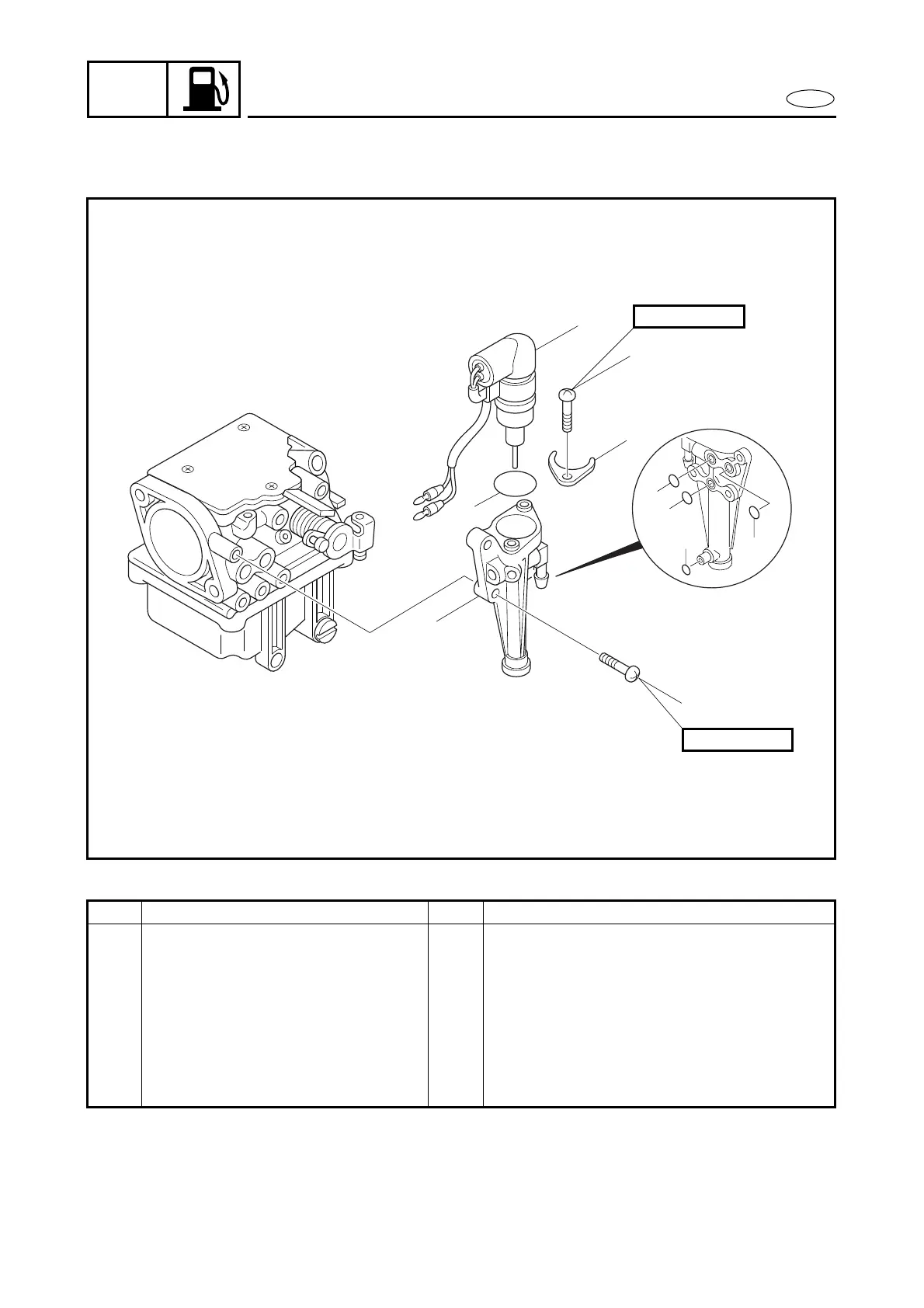

EXPLODED DIAGRAM

4 × 10 mm

5 × 16 mm

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

ELECTROTHERMAL VALVE UNIT

DISASSEMBLY

Follow the left “Step” for removal.

1 Screw 3

2 Fuel enrichment valve housing 1

3 O-ring 2

4 O-ring 1

5 O-ring 1

6 Screw 1
