7-1

BRKT

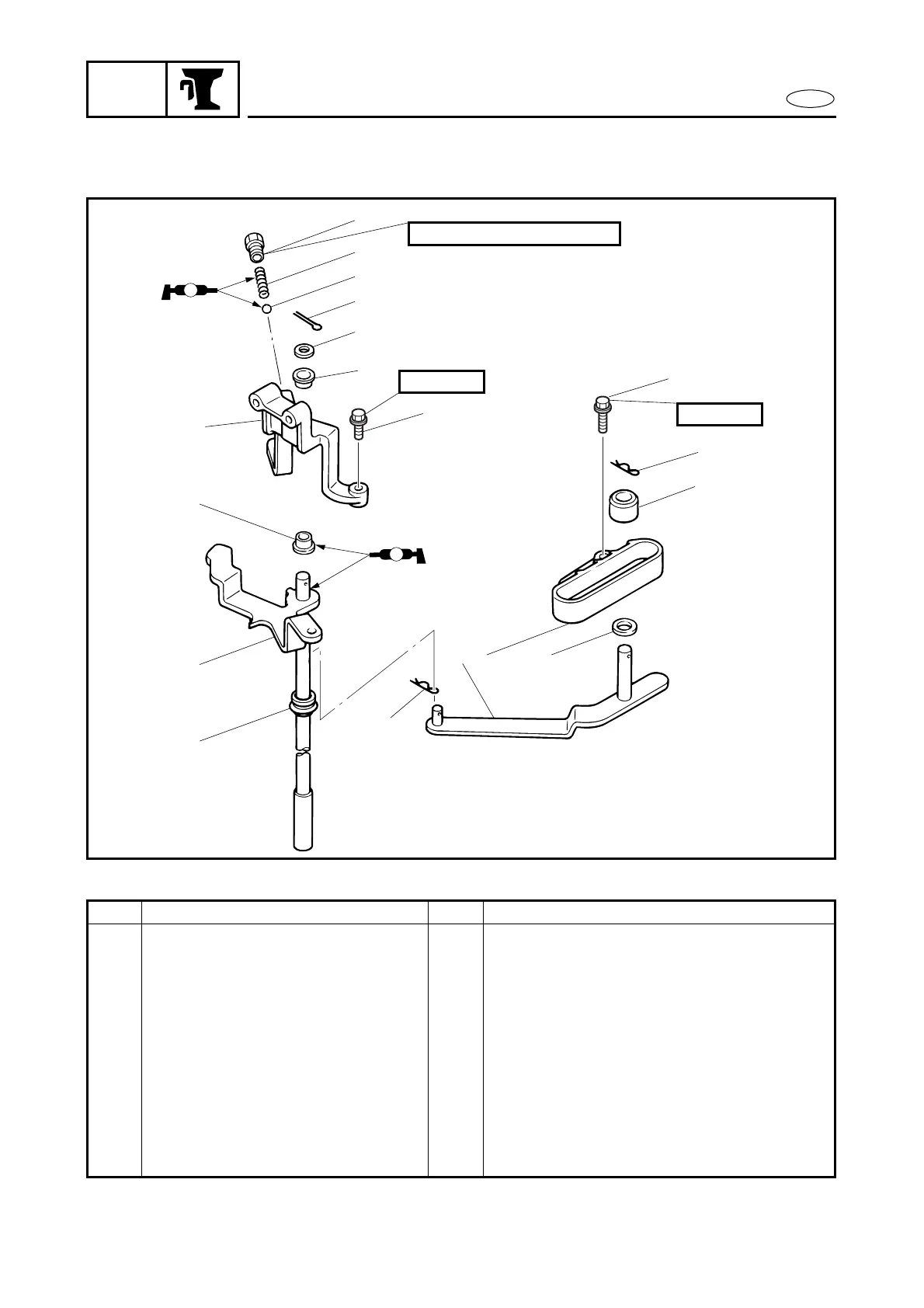

SHIFT ACTUATOR ASSY.

EXPLODED DIAGRAM

18 Nm (1.8 m

•

kg, 13 ft

•

Ib)

6 × 40 mm

6 × 25 mm

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

SHIFT ACTUATOR ASSY.

DISASSEMBLY

Follow the left “Step” for removal.

Power unit assy. Refer to “POWER UNIT” in chapter 5.

1 Clip 1

2 Bushing 1

3 Bolt 2

4 Shift bracket 1

5 Washer 1

6 Clip 1

7 Shift rod lever 1

8 Bolt 1
