5-16
E
POWR
CDI UNIT AND RELAYS
CDI UNIT AND RELAYS

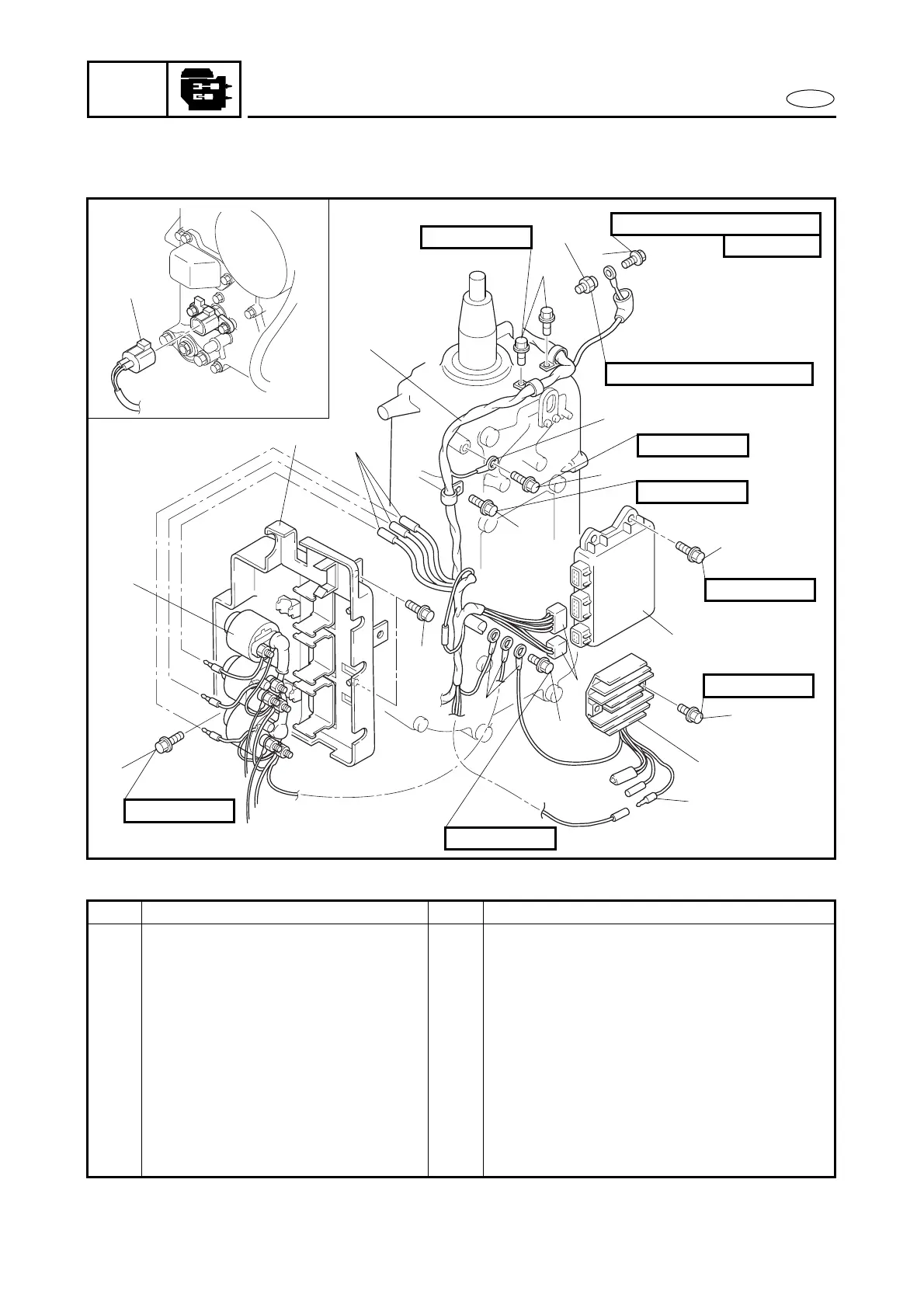

EXPLODED DIAGRAM
8 Nm (0.8 m
kg, 5.8 ft
Ib)
2 Nm (0.2 m
kg, 1.4 ft
Ib)
A
A
19
11
10
18
9
2
3
7
8
4
5
6
1
16
12
17
15
14
13
12
6 × 16 mm
6 × 20 mm
6 × 25 mm
6 × 28 mm
4 × 8 mm
6 × 12 mm
6 × 12 mm
6 × 12 mm
18
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CDI UNIT AND RELAYS
REMOVAL
Follow the left “Step” for removal.
1 CDI unit coupler 2
2 Bolt 4
3 CDI unit 1
4 Rectifier/regulator connector 1
5 Bolt 1
6 Ground lead 3
7 Bolt 2
8 Rectifier/regulator 1
9 Relay connector 3
