STARTER MOTOR
RELAY (MAGNETIC SWITCH)
1. Check:
● Relay (magnetic switch) condition
No continuity → Replace.
NOTE:
The pinion gear should be pushed out while
the magnet switch is ON.

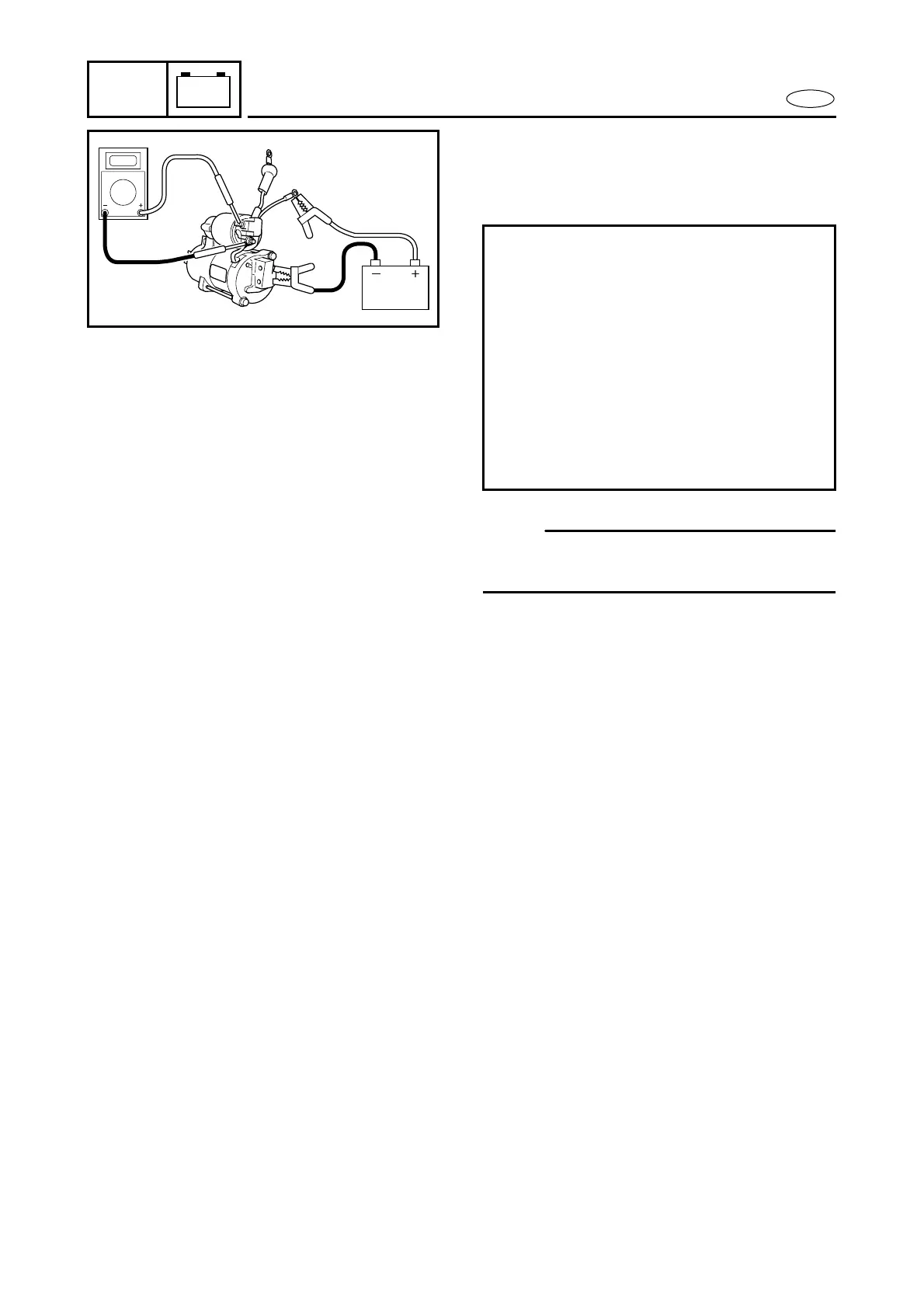

Checking steps:
● Connect the tester leads between the
relay (magnetic switch) terminals as
shown.
● Connect the starter motor body to the
negative battery terminal.
● Connect the Black/white (B/W) lead to
the positive battery terminal.
● Check that there is continuity between
the relay (magnetic switch) terminals.
● Check that there is no continuity after
the B/W lead is removed.
To Next Page
