Yamaha F15 User Manual

24
Components
EMU46721

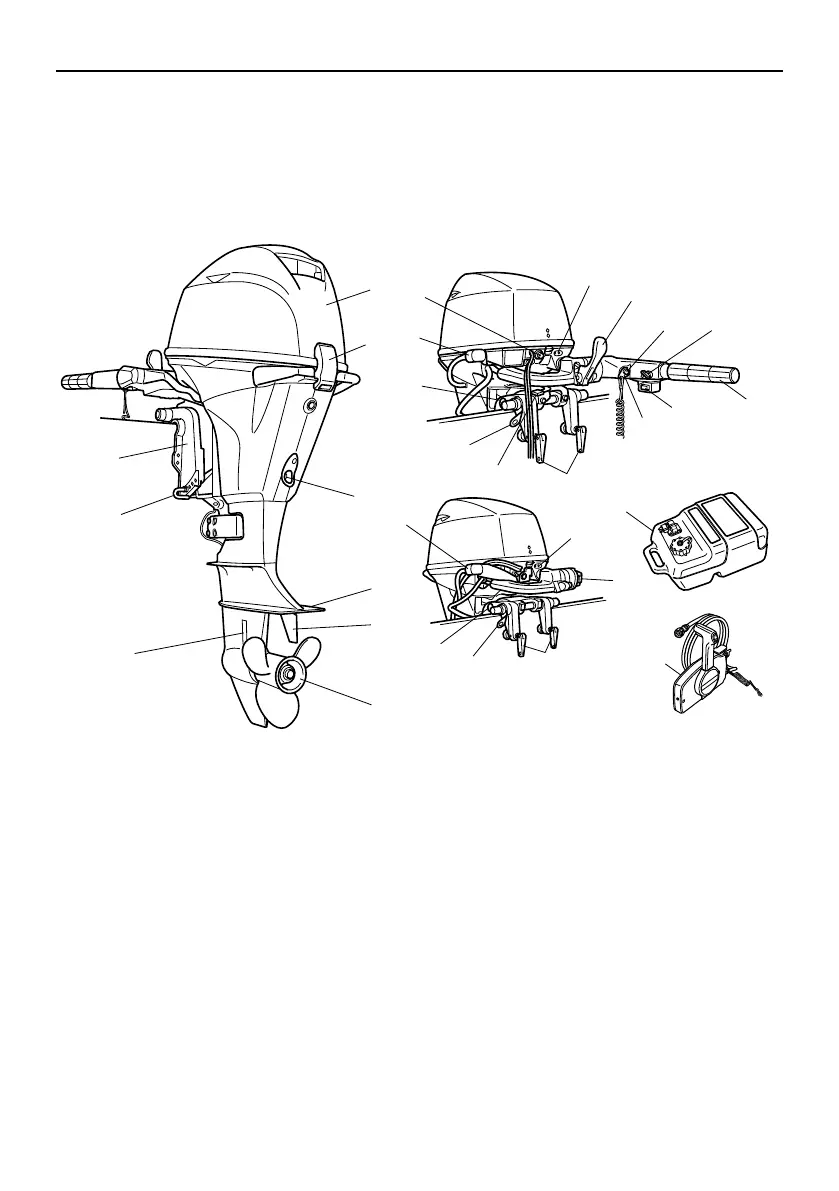

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els (order from dealer).
F15EHA, F15PHA, F20EA, F20EHA, F20PA, F20PHA
ZMU07498
10
11
13
14
15
17
23
18
19
20
21
22
12
24
10
15
17
19
20
21
16
1
2
3
9
8
6
7
4
5
1. Top cowling
2. Cowling lock lever
3. Drain screw
4. Anti-cavitation plate
5. Trim tab
6. Propeller
7. Cooling water inlet
8. Trim rod*
9. Clamp bracket
10. Alert indicator
11. Gear shift lever*
12. Engine stop button/Engine shut-off switch*
13. Throttle friction adjuster*
14. Throttle grip*
15. Power tilt switch*
16. Clip*
17. Clamp screw
18. Steering friction adjuster*
19. Restraint cable attachment
20. Tilt support knob*
21. Flushing device
22. Starter button*
23. Fuel tank*
24. Remote control box (side mount type)*
6AG-9-3D-1E0.book 24 ページ ２０１５年１１月５日 木曜日 午前１１時７分

Yamaha F15 Specifications

General

Prop Shaft Horsepower	15 hp at 5500 rpm
Full Throttle RPM Range	5000 - 6000 rpm
Fuel Induction System	Carburetor
Lubrication System	Wet Sump
Gear Ratio	2.08:1
Starting System	Electric
Recommended Fuel	Regular Unleaded Gasoline (minimum pump octane number 87)
Steering	Tiller
Dry Weight	45 kg (99 lbs)
Shaft Length	15"
