Components
32
Check the tiller handle for smooth move-
ment when the lever is turned to the star-
board side “B”.
Do not apply lubricants such as grease to
the friction areas of the steering friction ad-
juster.
EMU26254

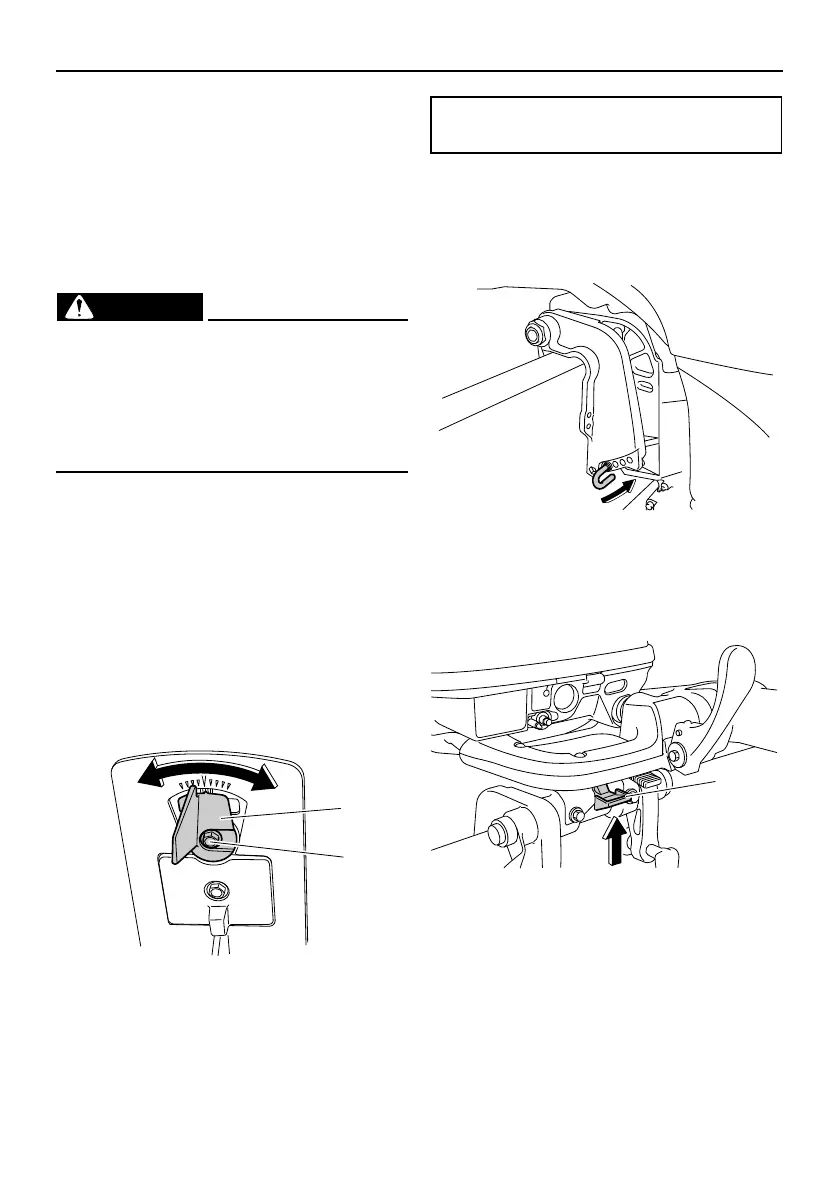

Trim tab
EWM00841
An improperly adjusted trim tab could
cause difficult steering. Always test run
after the trim tab has been installed or re-
placed to be sure steering is correct. Be
sure you have tightened the bolt after ad-
justing the trim tab.
The trim tab should be adjusted so that the
steering control can be turned to either the
right or left by applying the same amount of
force.
If the boat tends to veer to the left (port side),
turn the trim tab rear end to the port side “A”
in the figure.
If the boat tends to veer to the right (star-
board side), turn the trim tab end to the star-
board side “B” in the figure.
EMU26263
Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU30531
Tilt lock mechanism
The tilt lock mechanism is used to prevent
the outboard motor from lifting out of the wa-
ter when in reverse gear.
1. Trim tab
2. Bolt
Bolt tightening torque:
8 Nm (0.82 kgf-m, 5.9 ft-lb)
1. Tilt lock lever (Lock / tilt-down)
6AG-9-3D-1E0.book 32 ページ ２０１５年１１月５日 木曜日 午前１１時７分
