Yamaha F15 User Manual

Components
25
F15MHA, F20MHA
EMU25804
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00021
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
licensing or approval authority regula-
tions.
ZMU07413
1
10
11
12
14
13
15
17
18
20
2
3
9
8
4
5
6
21
22
7
19
16

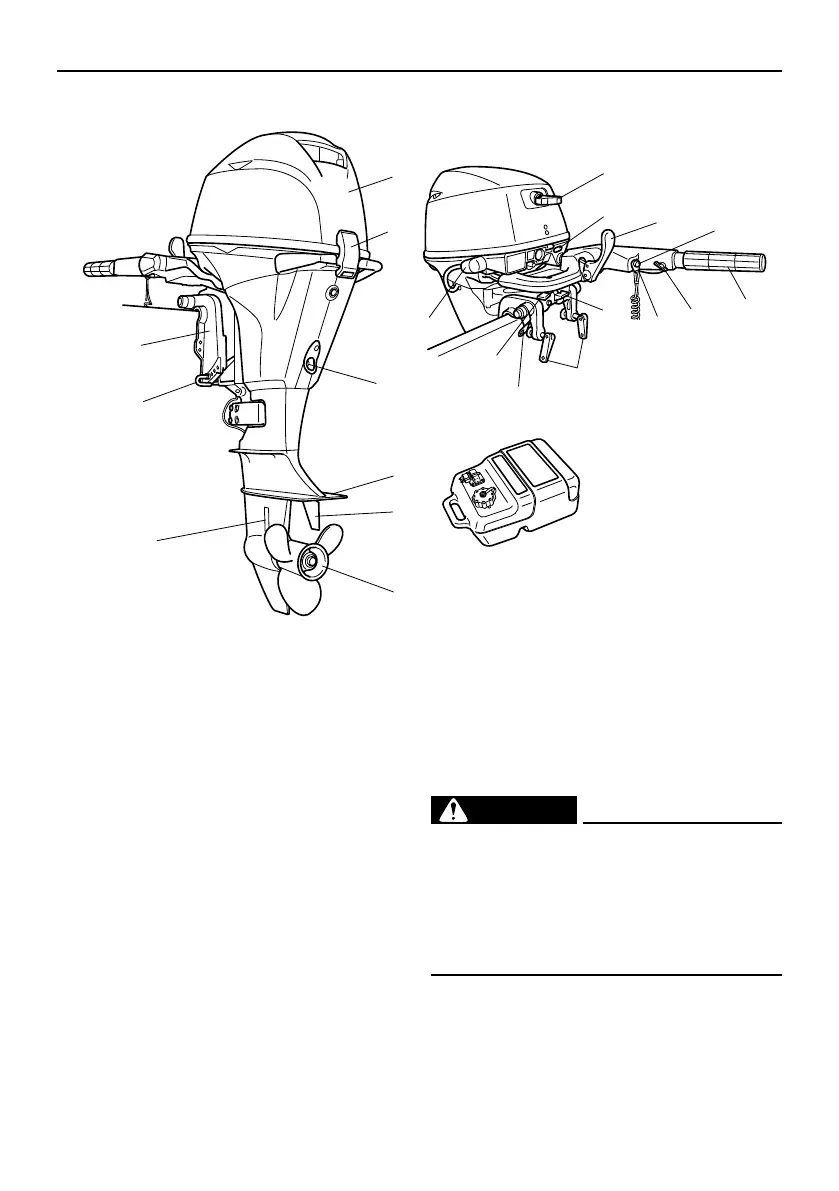

1. Top cowling
2. Cowling lock lever
3. Drain screw
4. Anti-cavitation plate
5. Trim tab
6. Propeller
7. Cooling water inlet
8. Trim rod
9. Clamp bracket
10. Manual starter handle
11. Alert indicator
12. Gear shift lever
13. Engine stop button/Engine shut-off switch
14. Throttle grip
15. Throttle friction adjuster
16. Clip
17. Tilt lock lever
18. Clamp screw
19. Restraint cable attachment
20. Steering friction adjuster
21. Flushing device
22. Fuel tank*
6AG-9-3D-1E0.book 25 ページ ２０１５年１１月５日 木曜日 午前１１時７分

Yamaha F15 Specifications

General

Prop Shaft Horsepower	15 hp at 5500 rpm
Full Throttle RPM Range	5000 - 6000 rpm
Fuel Induction System	Carburetor
Lubrication System	Wet Sump
Gear Ratio	2.08:1
Starting System	Electric
Recommended Fuel	Regular Unleaded Gasoline (minimum pump octane number 87)
Steering	Tiller
Dry Weight	45 kg (99 lbs)
Shaft Length	15"
