Operation
60

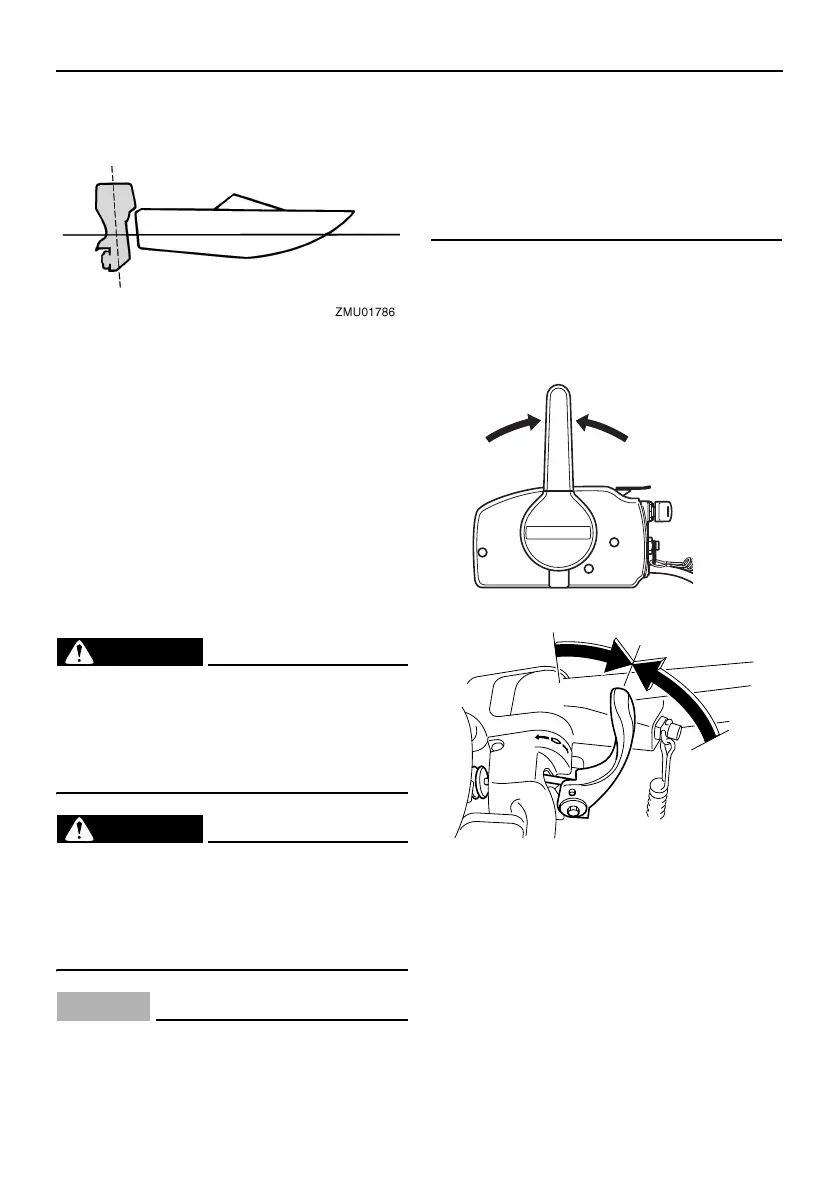

Depending on the type of boat, the outboard
motor trim angle may have little effect on the
trim of the boat when operating.
EMU27936
Tilting up and down
If the engine will be stopped for some time or
if the boat is moored in shallows, the out-
board motor should be tilted up to protect the
propeller and lower casing from damage by
collision with obstructions, and also to re-
duce salt corrosion.
EWM00223
Make sure that no one is near the out-
board motor when tilting the outboard
motor up or down. Otherwise, body parts
could be crushed between the outboard
motor and the clamp bracket.
EWM00251
Leaking fuel is a fire hazard. If there is a
fuel joint on the outboard motor, discon-
nect the fuel line or close the fuel cock if
the engine will be tilted for more than a
few minutes. Otherwise fuel may leak.
ECM00242
Before tilting the outboard motor, stop
the engine by following the procedure
on page 56. Never tilt the outboard mo-
tor while the engine is running. Severe
damage from overheating can result.
Do not tilt up the engine by pushing the
tiller handle (if equipped) because this
could break the handle.
EMU43222
Procedure for tilting up (manual tilt
models)
1. Place the remote control lever / gear
shift lever in neutral.
2. Disconnect the fuel hose from the fuel
joint on the outboard motor.
N
ZMU03087
6AG-9-3D-1E0.book 60 ページ ２０１５年１１月５日 木曜日 午前１１時７分
