Components
26
EMU25831
Fuel joint
This joint is used to connect the fuel line.
EMU43121
Fuel gauge
This gauge shows the approximate amount
of fuel remaining in the fuel tank.
EMU43151
Pressure relief tab
This is attached to the filler hole of the fuel
tank.
EMU43131
Fuel tank cap
This cap seals the fuel tank. To loosen the
cap, press and hold the pressure relief tab
and turn the cap counterclockwise.
EMU43142
Air vent screw
This screw is on the fuel tank cap. When
turning the air vent screw counterclockwise,
it is loosened and the pressure in the fuel
tank is released to a certain pressure. Air is
allowed to enter the fuel tank while operating
the engine.
EMU26182
Remote control box
The remote control lever actuates both the
shifter and the throttle. The electrical switch-
es are mounted on the remote control box.
EMU26191
Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the le-
ver back from neutral engages reverse. The
engine will continue to run at idle until the le-
ver is moved about 35 (a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.

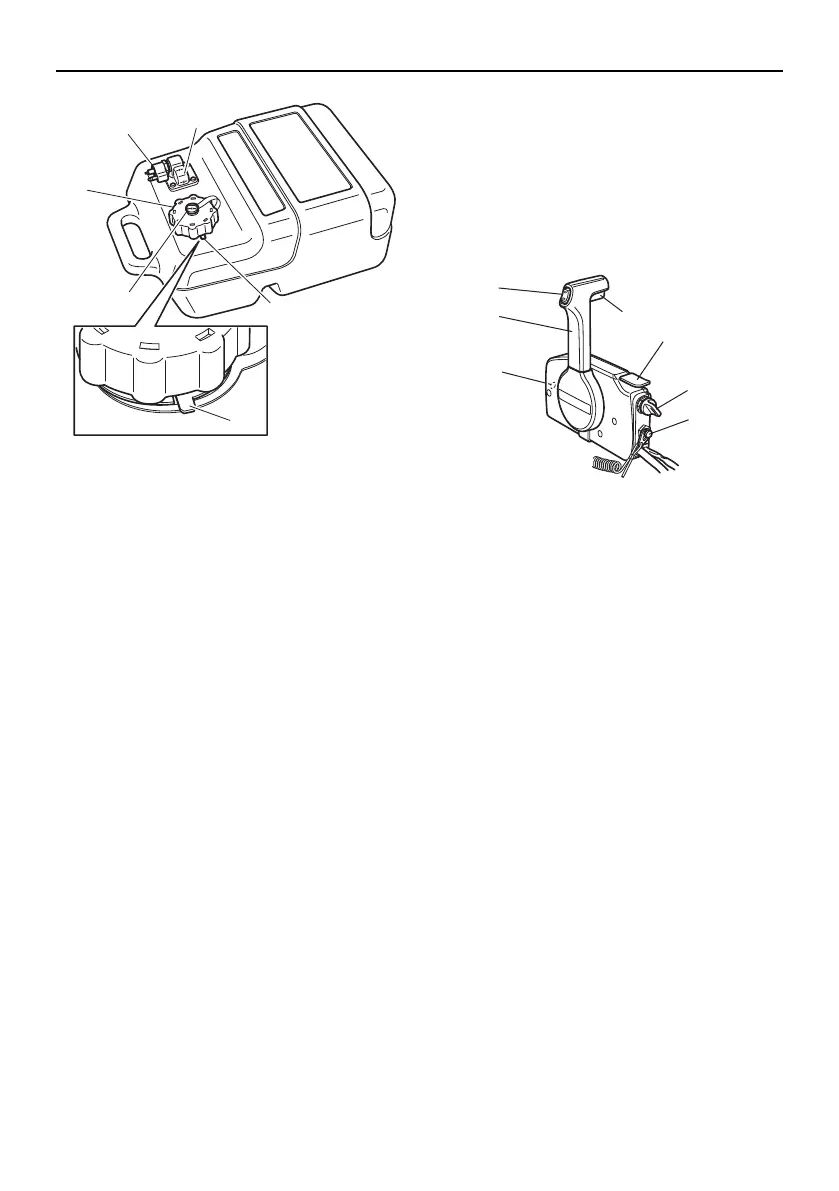

1. Fuel joint
2. Fuel gauge
3. Pressure relief tab
4. Fuel tank cap
5. Air vent screw
1. Power tilt switch
2. Remote control lever
3. Neutral interlock trigger
4. Neutral throttle lever
5. Main switch
6. Engine shut-off switch
7. Throttle friction adjuster
