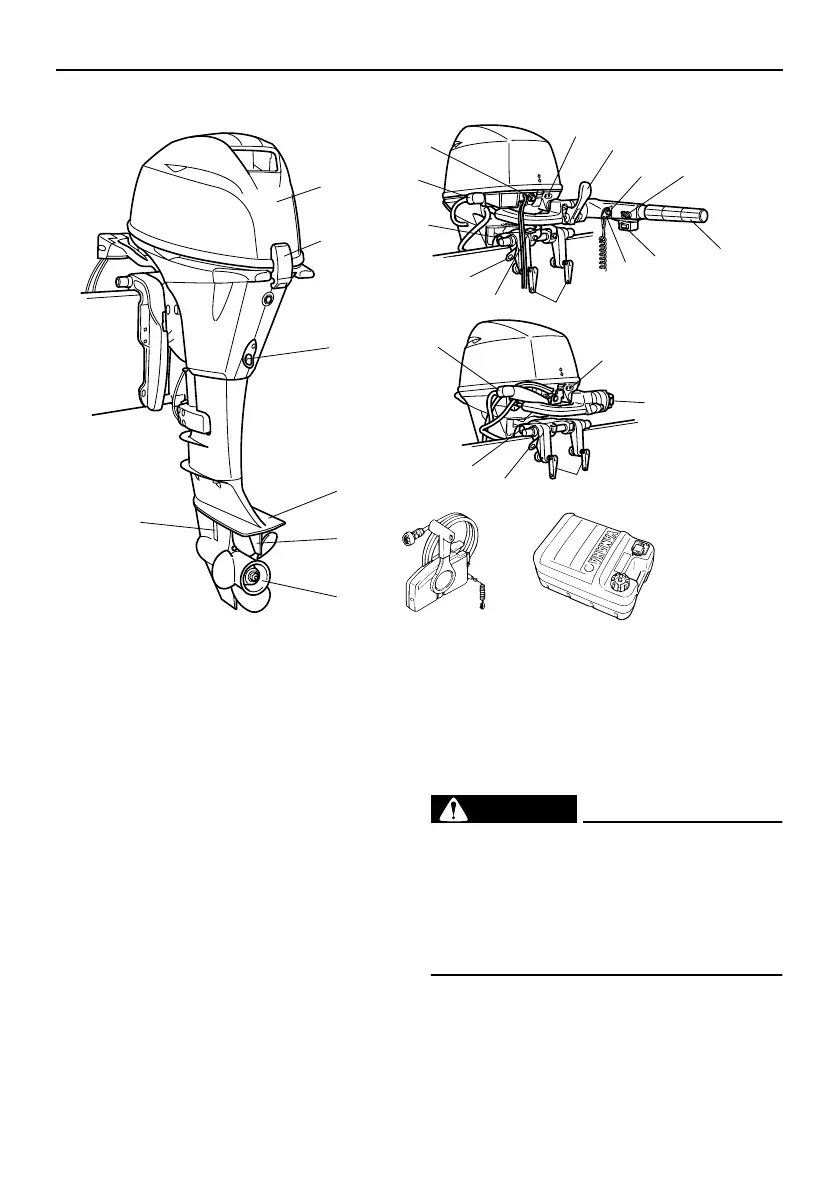

Components
16
F15CEH, F20BEHP, F20BEP
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
licensing or approval authority regula-
tions.
ZMU05629
1
2
3
4
5
6
7
8
9
11
12
13
14
21
15
16
17
18
19
10
20
8
13
14
16
17
18
22
1. Top cowling
2. Cowling lock lever
3. Drain screw
4. Anti-cavitation plate
5. Trim tab
6. Propeller
7. Cooling water inlet
8. Alert indicator
9. Gear shift lever*
10. Engine stop button/Engine shut-off switch*
11. Throttle friction adjuster*
12. Throttle grip*
13. Power tilt switch*
14. Clamp screw
15. Steering friction adjuster*
16. Restraint cable attachment
17. Tilt support knob
18. Flushing device
19. Starter button*
20. Remote control box (binnacle mount type)*
21. Fuel tank
22. Clip*
