Components
25
NOTICE
ECM01660
Do not use the tilt support bar when
trailering the boat. The outboard motor
could shake loose from the tilt support
and fall. If the motor cannot be trailered in
the normal running position, use an addi-
tional support device to secure it in the
tilt position.
EMU26361
Power tilt unit
This unit tilts the outboard motor up and
down and is controlled with the power tilt
switch.
NOTICE
ECM00630
Do not step on or exert pressure on the
power tilt motor. The power tilt unit could
be damaged as a result.
NOTICE
ECM00660
Do not use the tilt support lever or knob
when trailering the boat. The outboard
motor could shake loose from the tilt sup-
port and fall. If the motor cannot be trail-
ered in the normal running position, use
an additional support device to secure it
in the tilt position.
EMU26383
Cowling lock lever (pull up type)
To remove the engine top cowling, pull up
the cowling lock lever(s) and lift off the cowl-
ing. When installing the cowling, check to be
sure it fits properly in the rubber seal. Then
lock the cowling by moving the cowling lock
lever(s) downward.

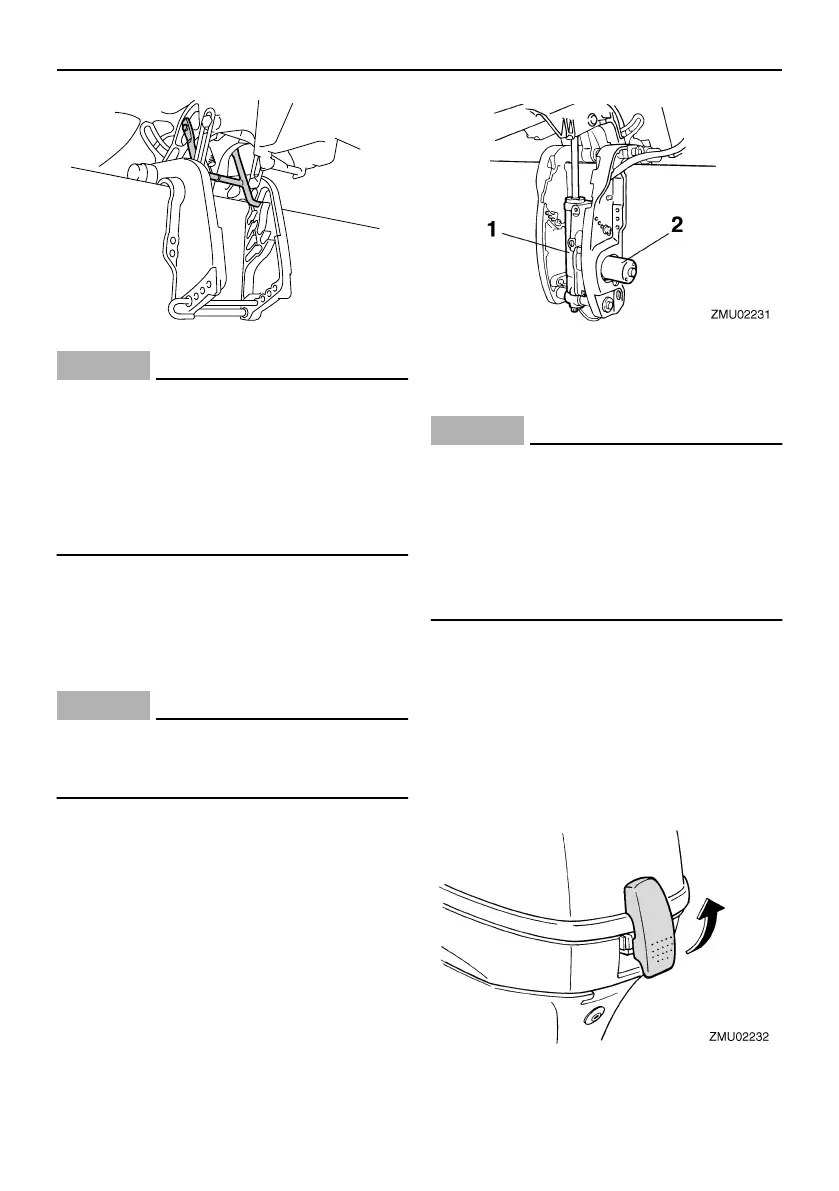

ZMU05528
1. Power tilt unit
2. Power tilt motor
