on page 47. Never tilt the outboard mo-
tor while the engine is running. Severe
damage from overheating can result.
●
Do not tilt up the engine by pushing the
tiller handle (if equipped) because this
could break the handle.
EMU32662

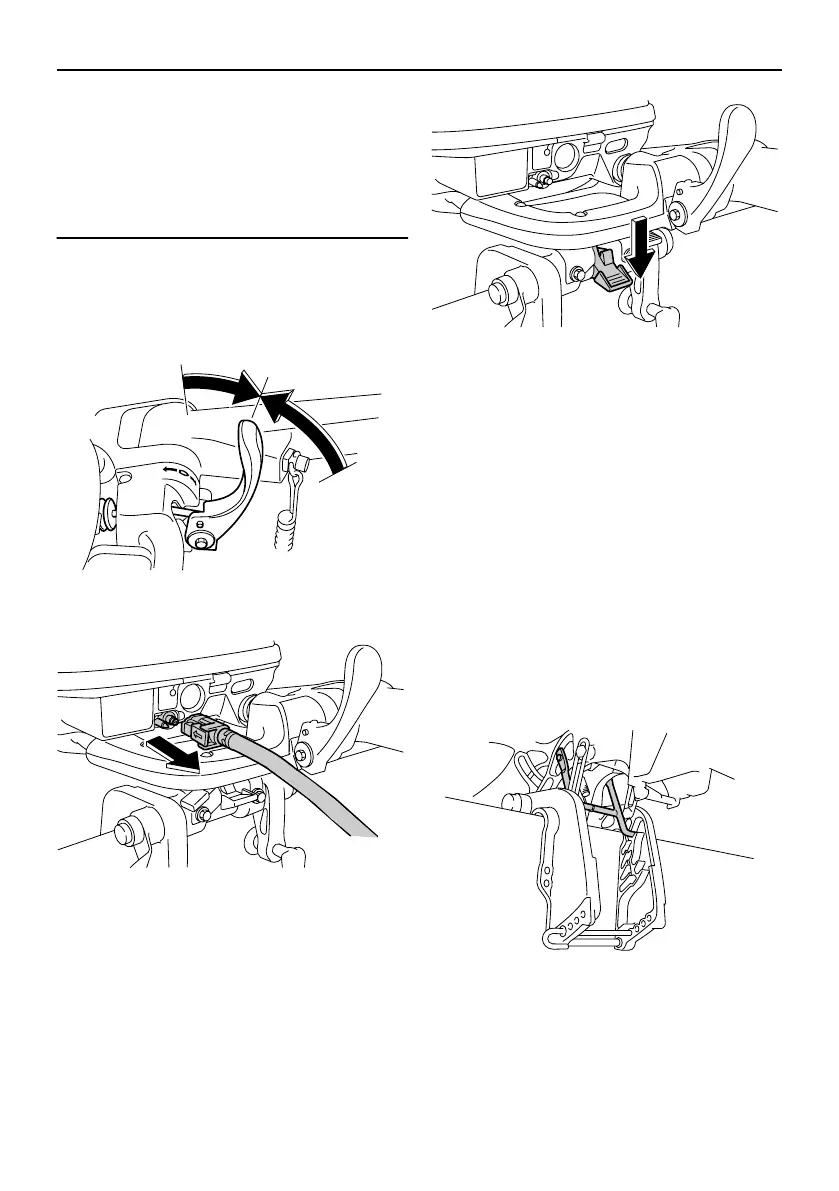

Procedure for tilting up (manual tilt
models)
1. Place the gear shift lever in neutral.
2. Disconnect the fuel line from the out-
board motor.
3. Place the tilt lock lever (if equipped) in
the release/up position.
4. Pull up the shallow water lever (if
equipped).
5. Hold the rear of the top cowling with one
hand and tilt the engine up fully.
6. Push the tilt support knob into the clamp
bracket. Or the tilt support bar will turn to
the lock position automatically. NO-
TICE: Do not use the tilt support lever
or knob when trailering the boat. The
outboard motor could shake loose
from the tilt support and fall. If the
motor cannot be trailered in the nor-
mal running position, use an addi-
tional support device to secure it in
the tilt position. For more detailed in-
formation, see page 57.
[ECM01641]
EMU32723
Procedure for tilting up (power tilt
models)
1. Place the remote control lever / gear
shift lever in neutral.
ZMU05533
N
ZMU05547
ZMU05548
ZMU05528
