4. Models equipped with trim rods: Once
the outboard motor is supported with the
tilt support lever, press the power tilt
switch “” (down) to retract the trim
rods. NOTICE: Be sure to retract the
trim rods completely during mooring.
This protects the rods from marine
growth and corrosion which could
damage the power trim and tilt mech-
anism.
[ECM00251]
EMU30192

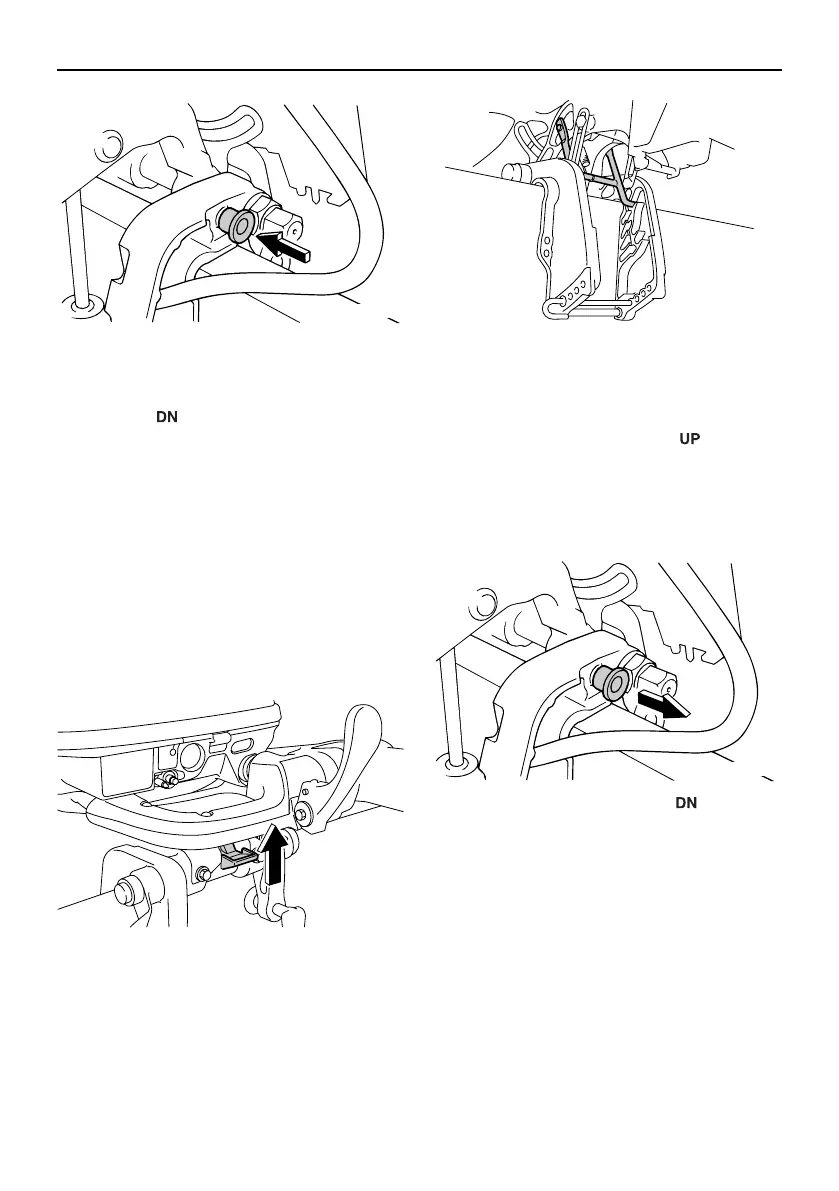

Procedure for tilting down (manual
tilt models)
1. Place the tilt lock lever in the lock posi-
tion.
2. Slightly tilt the engine up until the tilt sup-
port bar is automatically released.
3. Slowly tilt the engine down.
EMU33120
Procedure for tilting down (power tilt
models)
1. Push the power tilt switch “” (up) until
the outboard motor is supported by the
tilt rod and the tilt support knob becomes
free.
2. Pull out the tilt support knob.
3. Push the power tilt switch “” (down) to
lower the outboard motor to the desired
position.
