6X4 MULTI-FUNCTION TILLER HANDLE
FT50C,F50D
KIT P/N:6X4-42103-42

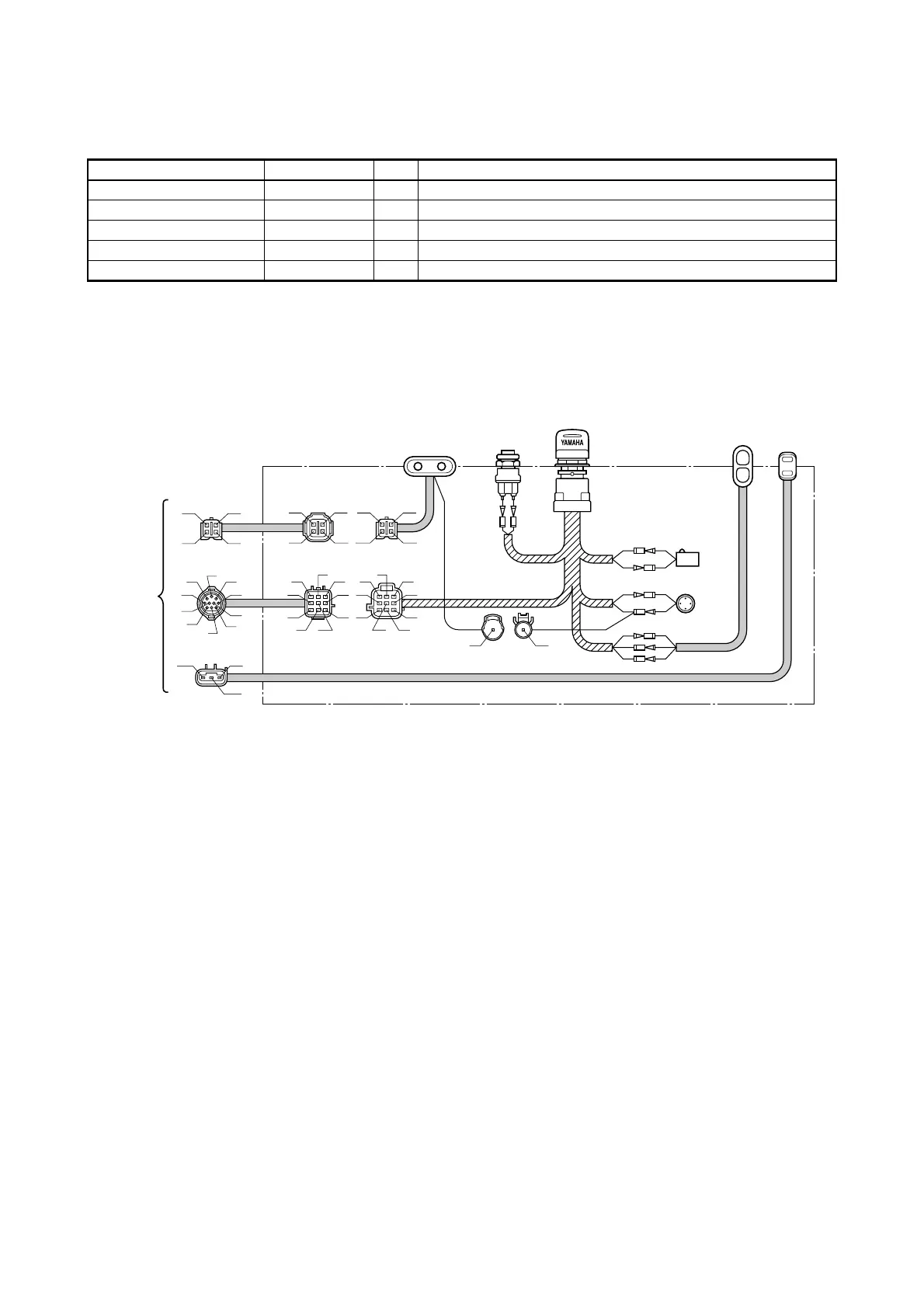

WIRING DIAGRAM (FOR JAPAN)
Part name Part No. Q’ty Remarks
Grommet 2 62Y-42725-30 1
Tiller handle assy 6X4-42101-42 1 With PTT switch (Side), LED indicators
Lock nut 90185-10051 2 M10
Clamp 90465-13M36 1
Setup manual 6X4-2819K-01 1 Japanese
Ignition
SW
Neutral
SW
PTT
SW
Troll
RPM
SW
(*1)
Buzzer
Stop
SW
Tiller handle area
To
ENGINE
R
Sb
Lg
P
Y
R
Sb
Lg
Br
Br
WB
Y
Br P
W
Lg
B
G
R
Sb
Y
BrP
W
Lg
B
G
R
Sb
G
R
Lg
P
Br
B
X
Sb
W
Y
Gy
G
P
G/R
X
P/B
X
P/W
P
G/R
Gy
G
BW/L
O/W
Warning
indicators
YY
(*1) For fuel injected F50-F90.
To Next Page
