REMOTE CONTROL CABLES
SELECTING THE CABLE LENGTH
Use the following examples as a guide for
measurement. Obviously, different boats will
require different routing and therefore different
lengths.
1. Choose a mounting location for the remote
control box which will provide comfortable
operation and unobstructed movement of
the hand lever and control mechanism.
* Minimum clearance below the binnacle con-
trol mounting surface for cables is 400 mm
(16 in). Also, minimum clearance behind the
703 control box for the control cables is 400
mm (16 in).
2. Measure from the control box position along
an unobstructed path to shift and throttle
connections in the motor. The cable lengths
are overall length. When a measurement is
in feet and inches, specify next whole foot.
Add 3 feet for loop (see illustration below).
Obviously, different boats will be required
different routing and therefore different
length.

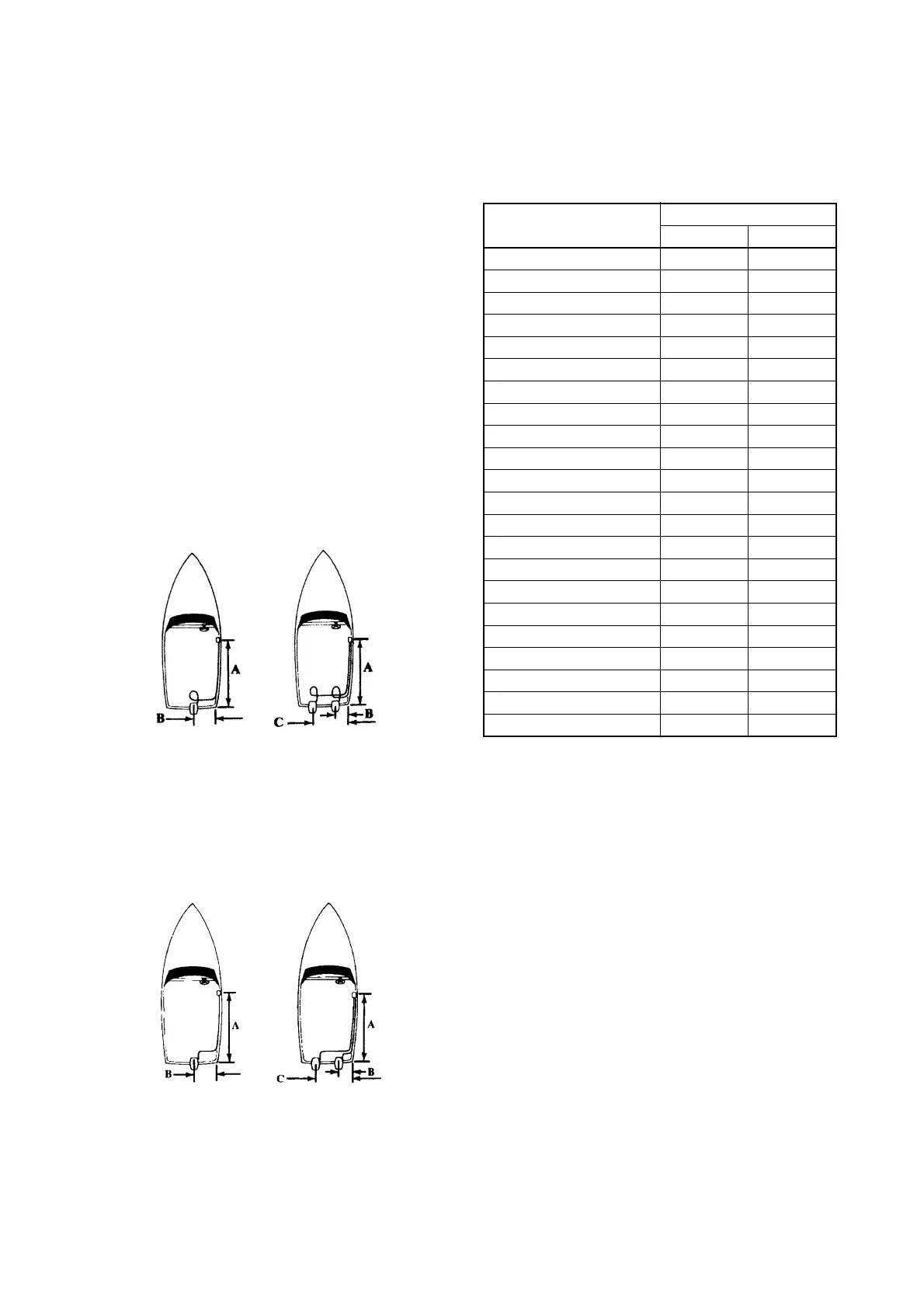

For example, a thru-transom boat is shown
in the illustration below.
* When the remote control cable has an extended
length, the neutral adjustment may be difficult due
to increase free play.
REMOTE CONTROL CABLES
APPLICATIONS
Yamaha remote control cables are available in
lengths from 6 feet to 27 feet. The cables uti-
lize 10 – 32 threaded ends.
* If Yamaha remote control cable is not available, a
Teleflex Morse CC3300 (BLK)/33C (RED) type
cable is recommended.
Cable length = A + B + 3 feet
A + C + 3 feet
Cable length = A + B + 1 foot
A + C + 1 foot
Part No.
RC cable length
Feet Meters
701-48310-10 6 1.8
701-48310-20 7 2.1
701-48310-40 8 2.4
701-48310-60 9 2.7
701-48310-80 10 3.0
701-48310-90 11 3.4
701-48320-00 12 3.7
701-48320-20 13 4.0
701-48320-30 14 4.3
701-48320-50 15 4.6
701-48320-60 16 4.9
701-48320-80 17 5.2
701-48320-90 18 5.5
701-48320-40 19 5.8
701-48320-70 20 6.1
701-48350-00 21 6.4
701-48350-10 22 6.7
701-48350-20 23 7.0
701-48350-30 24 7.3
701-48350-40 25 7.6
701-48350-50 26 7.9
701-48350-60 27 8.2
