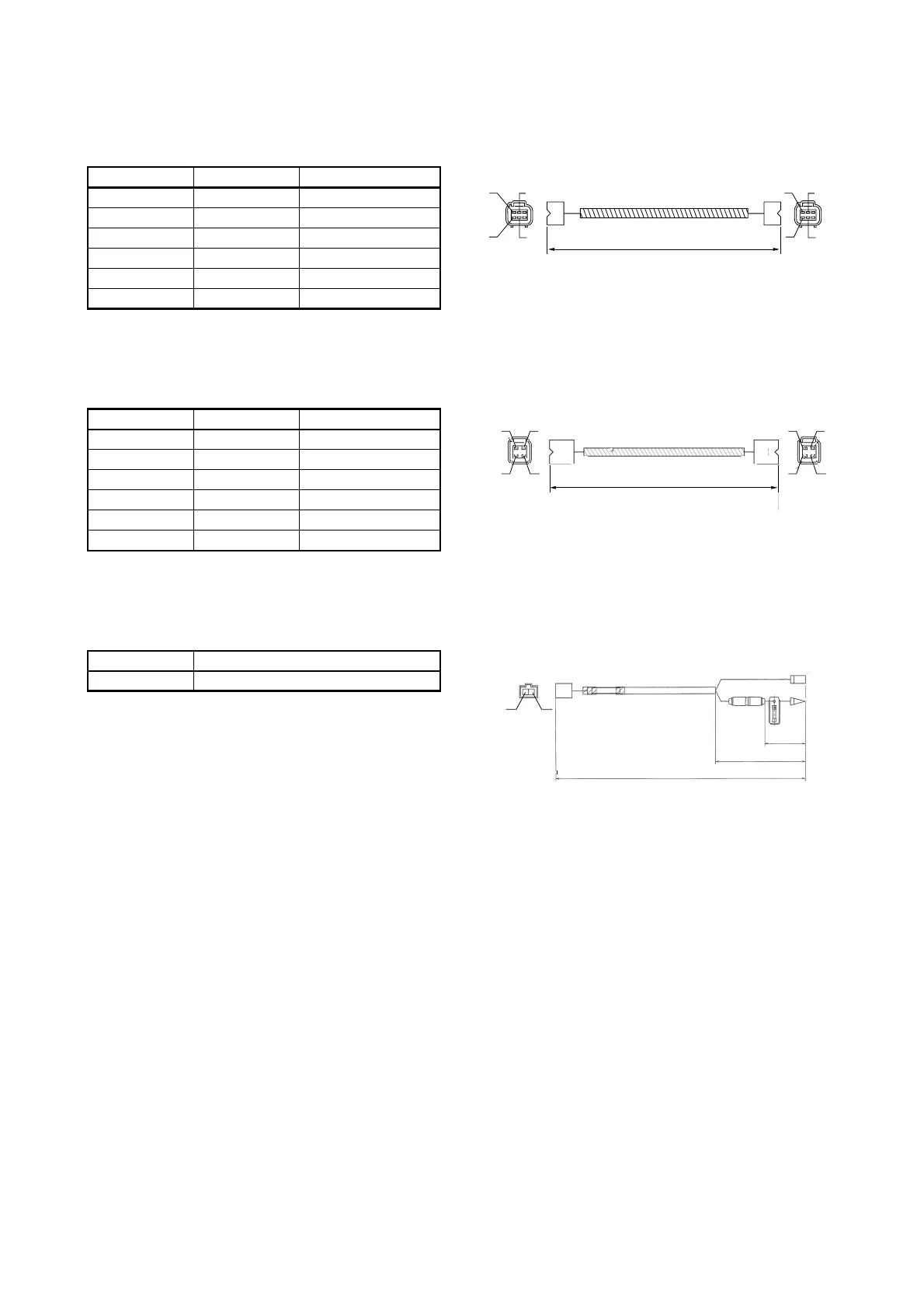

WIRE HARNESS
MAIN BUS WIRE
Uses to connect between the hub and hub.
PIGTAIL BUS WIRE
Uses to connect between the hub and gauge and/or between the engine and the hub.
POWER SUPPLY WIRE
Uses to connect between the switch panel and the hub, and supply the electric power to the system.
Part No. Length Remarks
6Y8-82553-41 30 ft, 9.1 m
6Y8-82553-31 25 ft, 7.6 m
6Y8-82553-21 20 ft, 6.1 m
6Y8-82553-11 15 ft, 4.6 m
6Y8-82553-50 10 ft, 3.0 m
6Y8-82553-01 1 ft, 0.3 m
Part No. Length Remarks
6Y8-82521-51 12 ft, 3.6 m
6Y8-82521-41 9 ft, 2.7 m
6Y8-82521-31 6 ft, 1.8 m
6Y8-82521-21 3 ft, 0.9 m
6Y8-82521-11 2 ft, 0.6 m
6Y8-82521-01 1 ft, 0.3 m
Part No. Remarks
6Y8-83553-01 With 10 amps fuse
Length
(GRY) (GRY)
RB
W
RB
WLL
Length
BR
WL
BR
WL
(WHT) (WHT)
2400 (94)
70 (2.75)
170 (6.63)
(10A)
B
(RED)
Y
B
YY
mm (in.)
