Yamaha FZ-07 2016 User Manual

Description
3-2
3
EAU10421

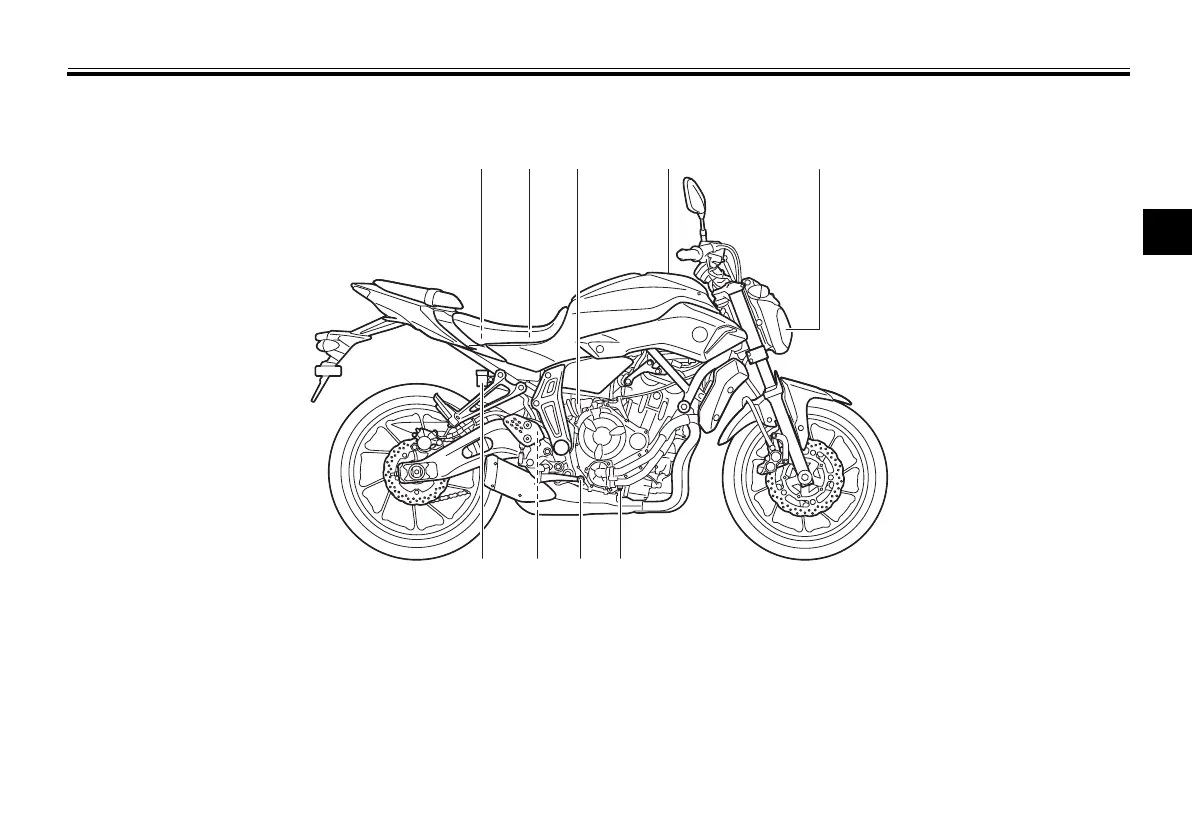

Right view
67
1 2 3 54
89
1. Fuses (page 7-32)
2. Battery (page 7-31)
3. Shock absorber assembly spring preload adjusting ring (page 4-20)
4. Fuel tank cap (page 4-14)
5. Headlight (page 7-34)
6. Coolant drain bolt (page 7-14)
7. Brake pedal (page 4-12)
8. Rear brake light switch (page 7-21)
9. Rear brake fluid reservoir (page 7-22)
UBU270E0.book Page 2 Monday, November 14, 2016 8:53 AM

Yamaha FZ-07 2016 Specifications

General

Displacement	689cc
Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Ground Clearance	5.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock; 5.1-in travel
Front Brakes	Dual hydraulic disc, 282mm
Rear Brakes	Hydraulic disc, 245mm
