Yamaha FZ-07 2016 User Manual

Periodic maintenance and adjustment
7-35
7
4. Place a new headlight bulb into
position, then secure it with the
bulb holder.
5. Install the headlight bulb cover,
then connect the coupler.
6. Install the headlight unit as shown,
and then install the washer and
bolt on each side.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU46405
Replacing the auxiliary light
bulb
If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 7-34.)
2. Remove the auxiliary light bulb
socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by
pulling it out of the socket.

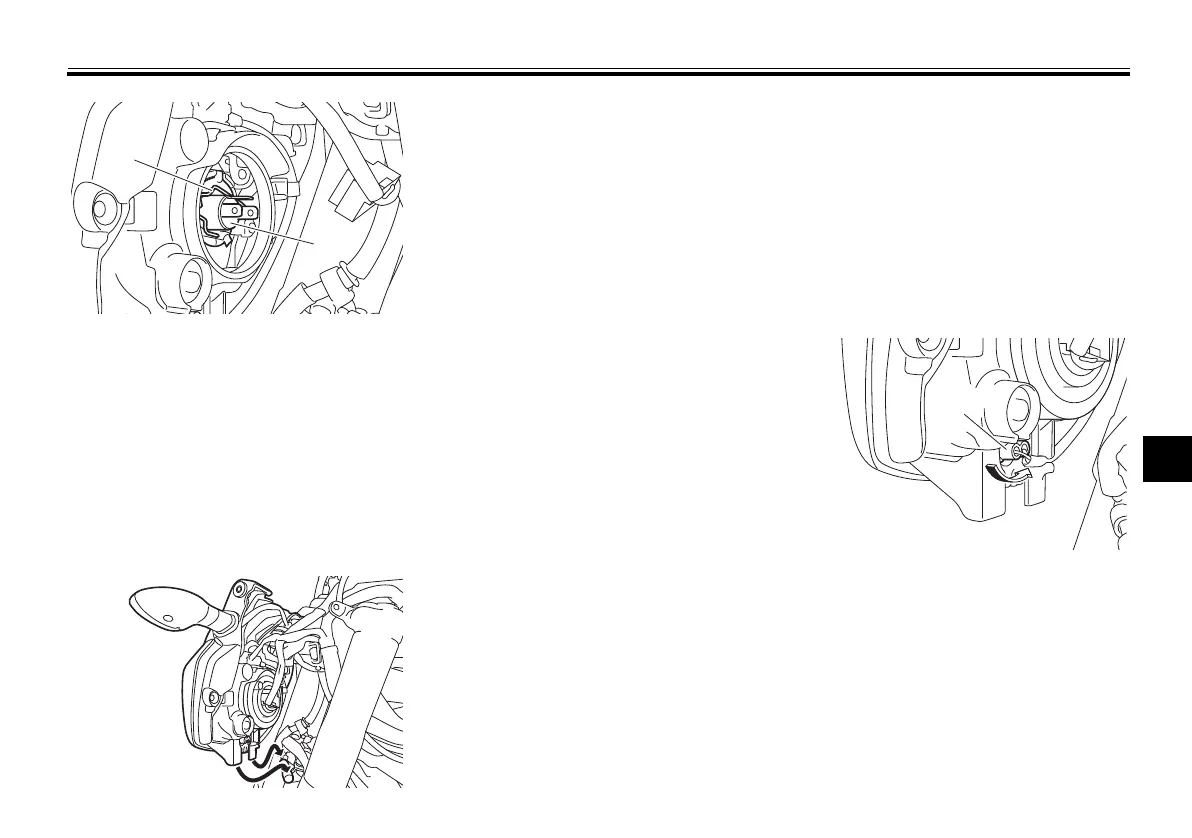

1. Headlight bulb holder
2. Headlight bulb
2
1
1. Auxiliary light bulb socket
1
UBU270E0.book Page 35 Monday, November 14, 2016 8:53 AM

Yamaha FZ-07 2016 Specifications

General

Displacement	689cc
Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Ground Clearance	5.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock; 5.1-in travel
Front Brakes	Dual hydraulic disc, 282mm
Rear Brakes	Hydraulic disc, 245mm
