Periodic maintenance and adjustment
7-32
7
connect the positive lead before
connecting the negative lead.
[ECA16842]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16531
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU59872

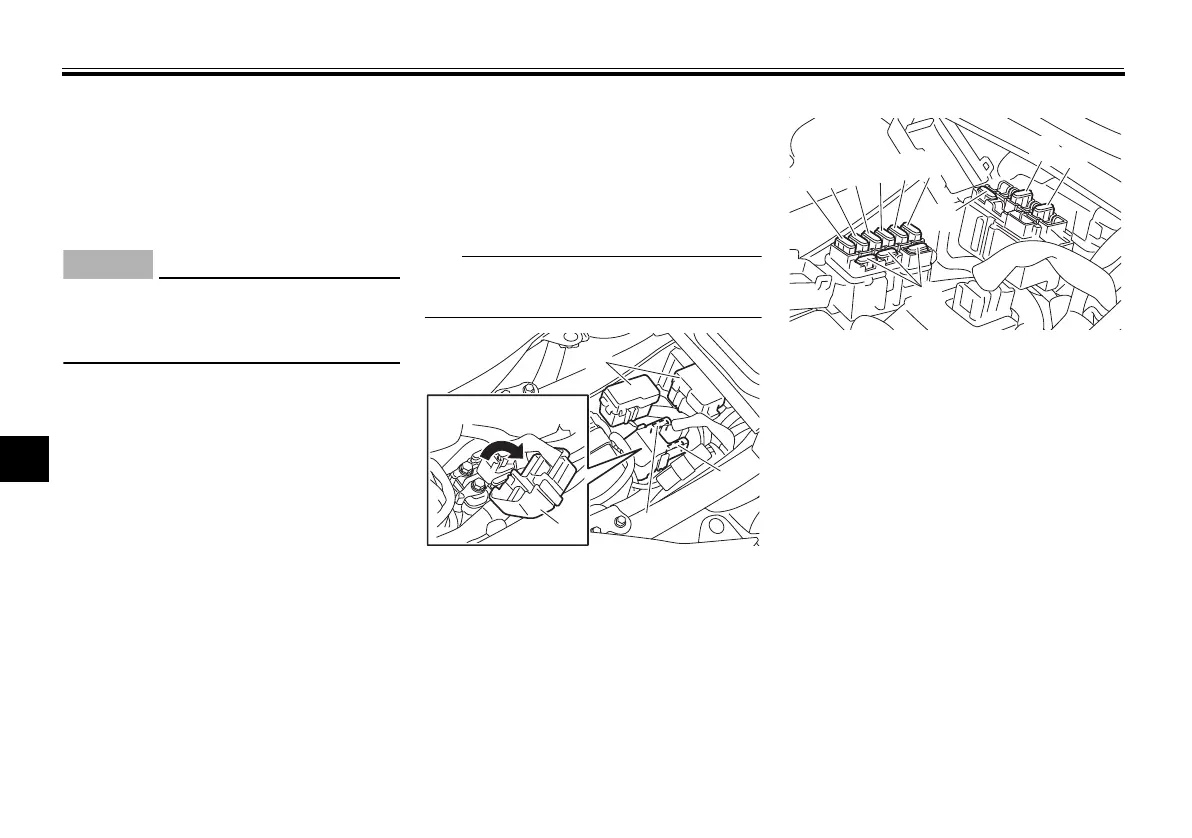

Replacing the fuses
The main fuse and the fuse boxes,
which contain the fuses for the individ-
ual circuits, are located under the rider
seat. (See page 4-17.)
TIP
To access the main fuse, remove the
starter relay cover as shown.
FZ07H
1. Starter relay cover
2. Fuse box
3. Spare main fuse
4. Main fuse
2
3
4
1
1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Backup fuse 2 (for ECU)
5. Backup fuse (for clock)
6. Radiator fan motor fuse
7. Parking lighting fuse
8. Auxiliary fuse
9. Spare fuse
7
8
1
2
3
4
5
6
9
9
UBU270E0.book Page 32 Monday, November 14, 2016 8:53 AM

Yamaha FZ-07 2016 Specifications

General

Displacement	689cc
Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Ground Clearance	5.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock; 5.1-in travel
Front Brakes	Dual hydraulic disc, 282mm
Rear Brakes	Hydraulic disc, 245mm
