Instrument and control functions
4-19
4
TIP
Make sure that the screwdriver is se-
curely positioned between its holders,
and then position the cable loops to-
ward the middle of the screwdriver be-
fore installing the passenger seat.
5. Install the passenger seat.
WARNING! Never ride with a
helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10162]
To release a helmet from the helmet
holding cable
1. Remove the passenger seat.
2. Remove the screwdriver, then re-
move the helmet holding cable
from the helmet.
3. Store the cable under the seat by
hooking the cable loops over the
screwdriver, install the screw-
driver in its original position, and
then hook the helmet holding ca-
ble over the hook on the bottom of
the passenger seat.
4. Install the passenger seat.
EAU14465
Storage compartment
The storage compartment is located
under the passenger seat. (See page
4-17.)
When storing documents or other
items in the storage compartment, be
sure to wrap them in a plastic bag so
that they will not get wet. When wash-
ing the vehicle, be careful not to let any
water enter the storage compartment.
WARNING
EWA10962
 Do not exceed the load limit of
1.5 kg (3 lb) for the storage com-
partment.

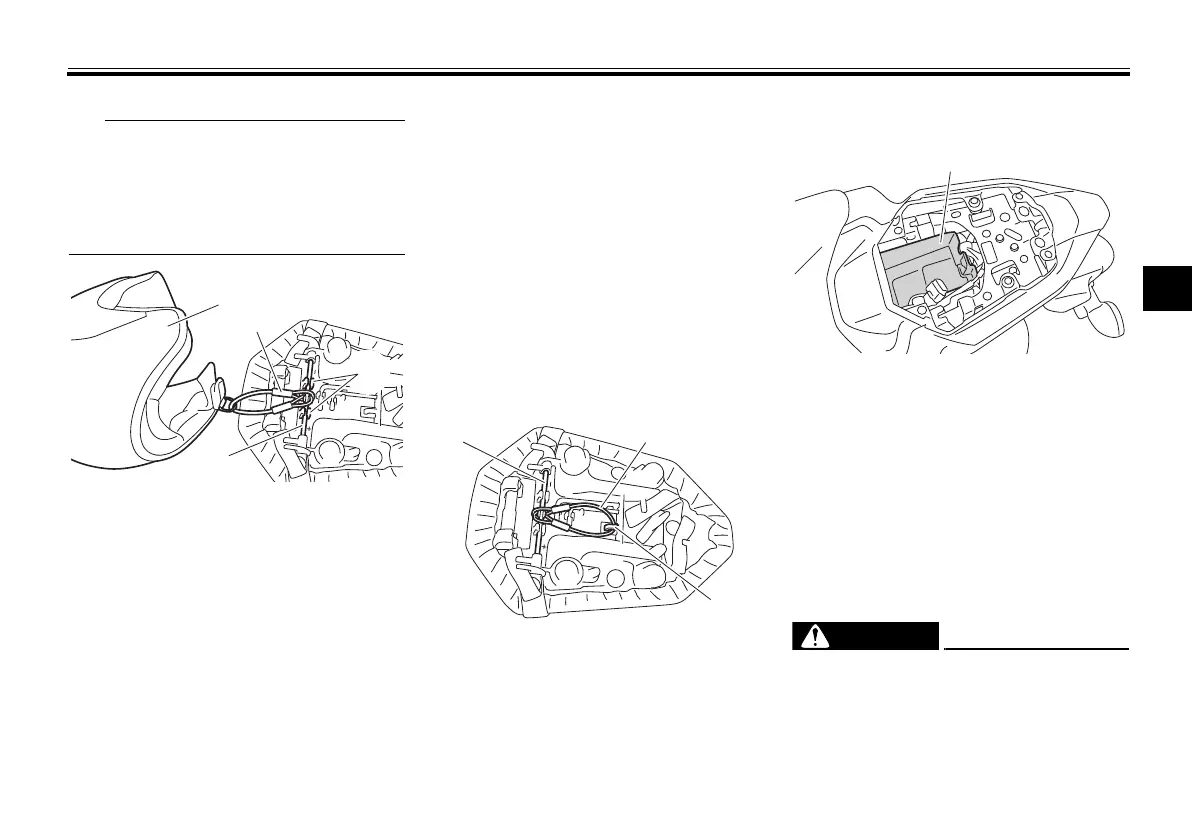

1. Helmet
2. Helmet holding cable
3. Screwdriver
4. Holder
1
2
3
4
1. Screwdriver
2. Helmet holding cable
3. Hook
1
2
3
1. Storage compartment
1
UBU270E0.book Page 19 Monday, November 14, 2016 8:53 AM

Yamaha FZ-07 2016 Specifications

General

Displacement	689cc
Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Ground Clearance	5.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock; 5.1-in travel
Front Brakes	Dual hydraulic disc, 282mm
Rear Brakes	Hydraulic disc, 245mm
