Periodic maintenance and adjustment
7-22
7
EAU22393
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU36891
Front brake pads
Each front brake pad is provided with
wear indicators, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicators while applying
the brake. If a brake pad has worn to
the point that a wear indicator almost
touches the brake disc, have a
Yamaha dealer replace the brake pads
as a set.
EAU46292
Rear brake pads
Each rear brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that a wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
EAU40262
Checking the brake fluid level
Before riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the top
of the reservoir level. Replenish the
brake fluid if necessary.
Front brake

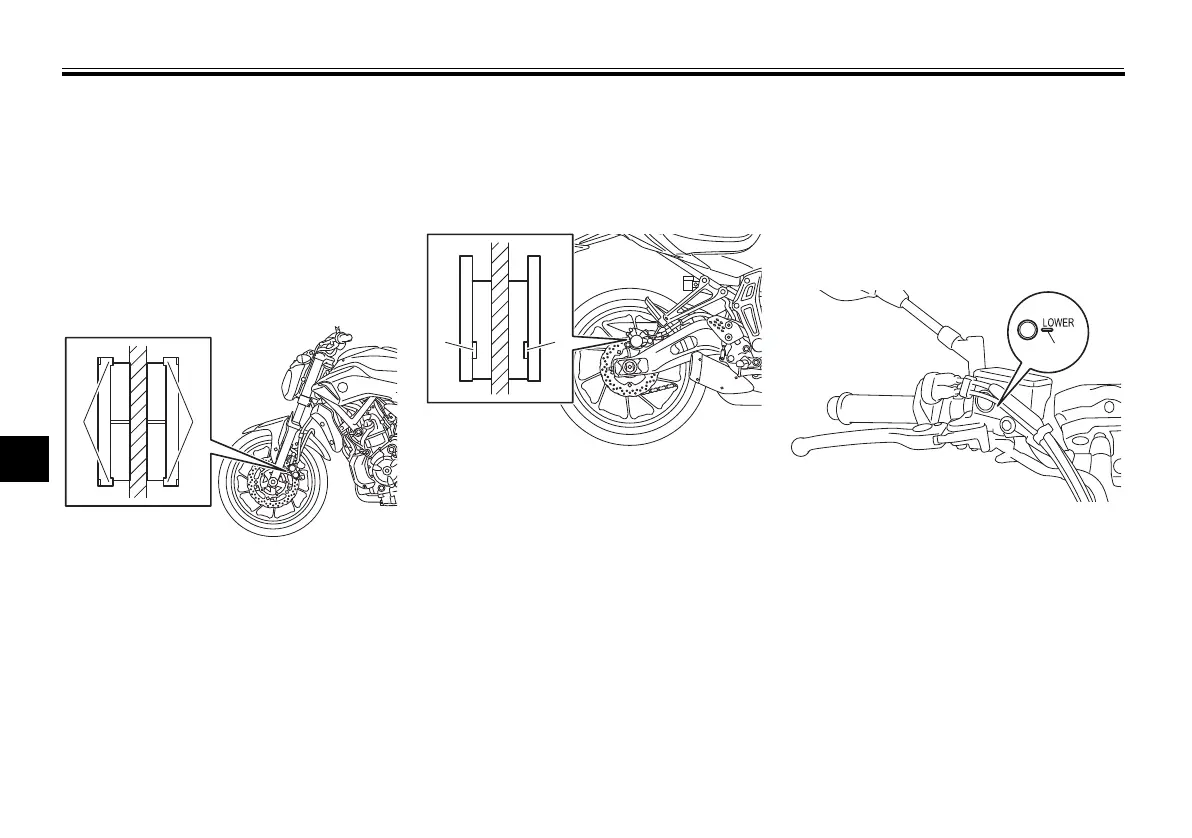

1. Brake pad wear indicator
11
1. Brake pad wear indicator groove
11
1. Minimum level mark
1
UBU270E0.book Page 22 Monday, November 14, 2016 8:53 AM

Yamaha FZ-07 2016 Specifications

General

Displacement	689cc
Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Ground Clearance	5.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock; 5.1-in travel
Front Brakes	Dual hydraulic disc, 282mm
Rear Brakes	Hydraulic disc, 245mm
