Instrument and control functions
4-20
4
 Do not exceed the maximum
load of 172 kg (379 lb) (FZ07AH)
175 kg (386 lb) (FZ07H) for the
vehicle.
EAU47001
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To
decrease the spring preload and there-
by soften the suspension, turn the ad-
justing ring in direction (b).
 Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
 Use the special wrench and ex-
tension bar included in the own-
er’s tool kit to make the
adjustment.
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.

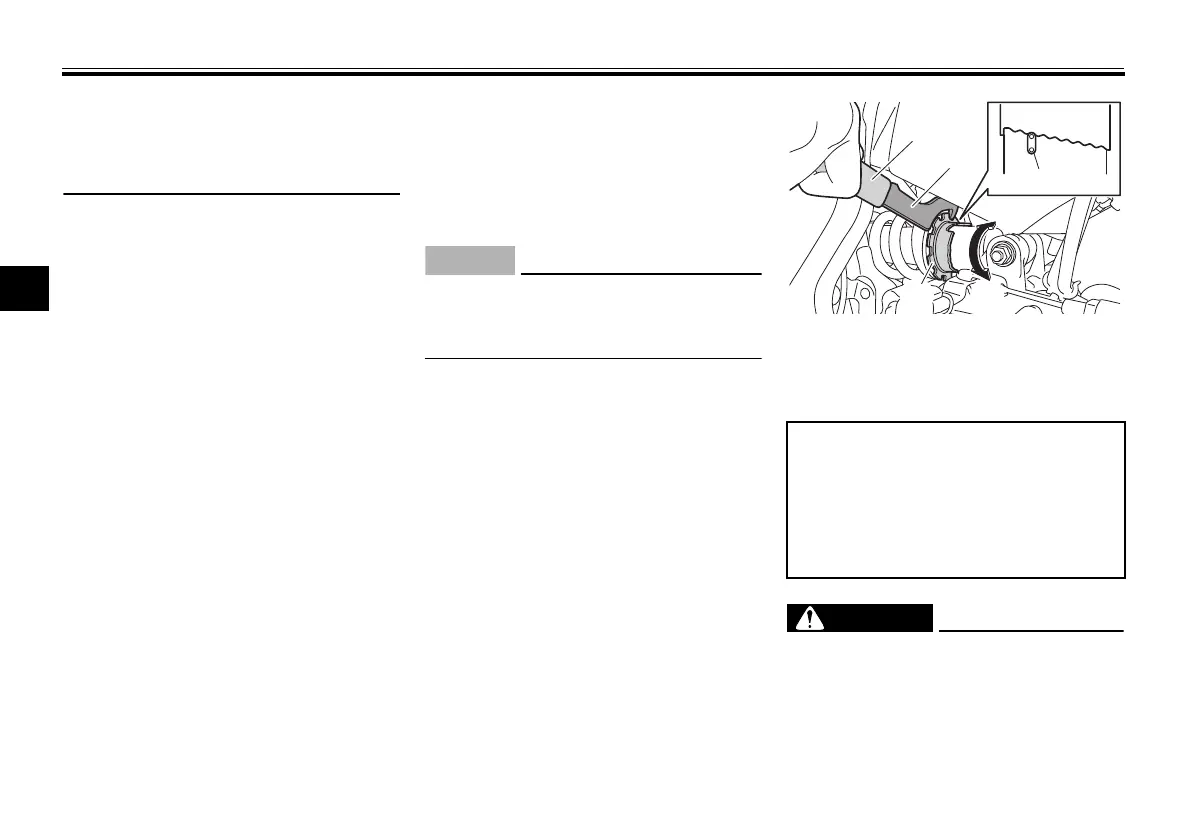

1. Extension bar
2. Special wrench
3. Spring preload adjusting ring
4. Position indicator
Spring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
9
7
6
9
8
5
4
3
2
1
3
(a)
(b)
2
1
4
UBU270E0.book Page 20 Monday, November 14, 2016 8:53 AM

Yamaha FZ-07 2016 Specifications

General

Displacement	689cc
Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed; multiplate wet clutch
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	31.7 in
Wheelbase	55.1 in
Trail	3.5 in
Ground Clearance	5.5 in
Fuel Capacity	3.7 gal
Wet Weight	397 lb
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Front Suspension	41mm fork; 5.1-in travel
Rear Suspension	Single shock; 5.1-in travel
Front Brakes	Dual hydraulic disc, 282mm
Rear Brakes	Hydraulic disc, 245mm
