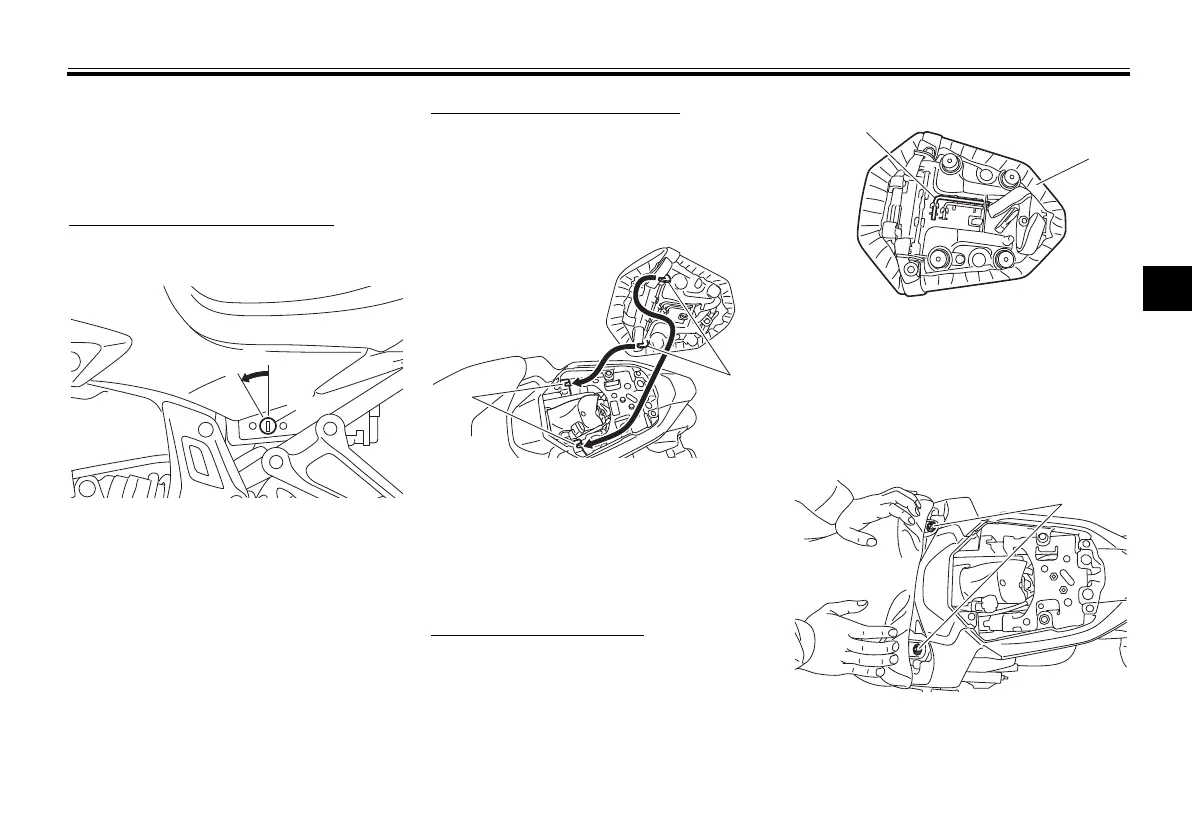

Seats
Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. While holding the key in that posi-
tion, lift the rear of the passenger
seat and pull it backward.
To install the passenger seat
1. Insert the projections on the front
of the passenger seat into the seat
holders as shown, and then push
the rear of the seat down to lock it
in place.
2. Remove the key.
Rider seat
To remove the rider seat
1. Remove the passenger seat, and
then remove the hexagon wrench
located on the bottom of the seat.
2. Pull up the corners on the rear of
the rider seat as shown and re-
move the bolts with the hexagon
wrench.
3. Lift the seat rearward and up to re-
move it.
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
1. Passenger seat
2. Hexagon wrench
1. Bolt
